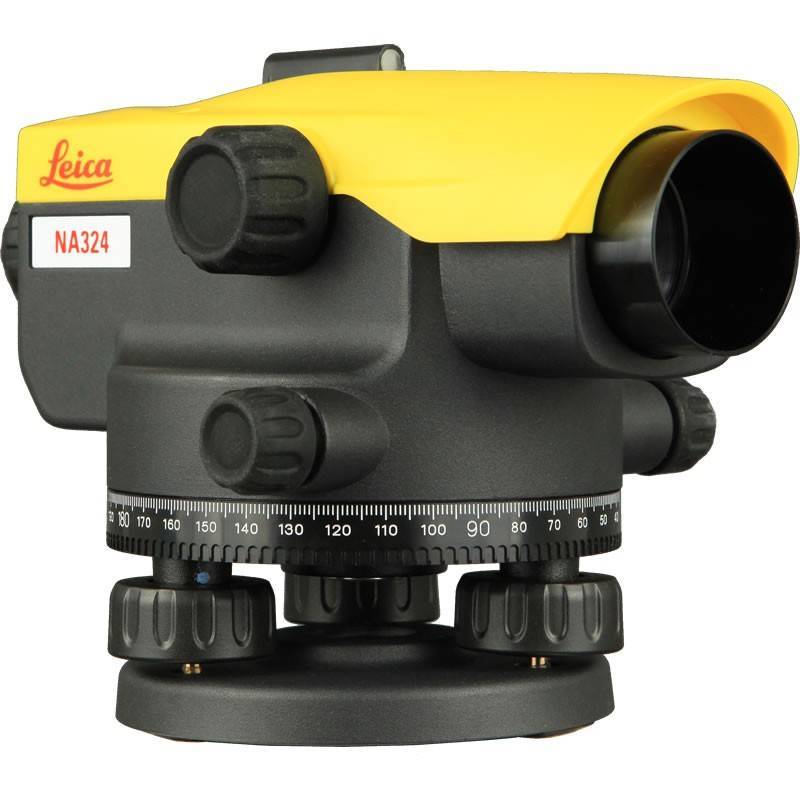

Leica 840382 NA324 Leveling instrument 24x magnification

Leica NA324 Leveling Instrument 24x vergroting 840382

The Leica NA300 series of automatic (optical) leveling is designed for professionals who need daily results of the highest quality. On construction sites, obstacles and unevenness are often found; however, the NA300 Series leveling system is up to this challenge and ensures the most accurate and safe construction possible. The NA300 series is your reliable partner for accurate measurements and high-quality results. Thanks to the ergonomic design, spirit levels from the NA300 series are comfortable to operate. This comfort combined with the simple and trouble-free use of leveling makes them the perfect partner on any construction site.

Special Features

• Quick and easy measurements
• Unique design and highest quality results for all leveling needs
• Made to survive on the roughest construction sites and face the harshest conditions
• Fast and accurate measurements through simple operation
• Accuracy:
• The levelling machines of the Leica NA300 series are made for everyday levelling tasks. They offer highest measuring accuracy and reliability for all requirements. These automatic (optical) Levelers offer maximum performance for both tasks, ergonomic handling and a robust design for daily use under the toughest conditions.
• Simple: Thanks to a perfectly aligned mirror, the horizontal leveling device can be adjusted with the highest accuracy and reliability. The Leica NA300 series spirit level, like all our automatic (optical) Levelers, are suitable for everyday use in any environment.

Technical data

• Magnification 24x
• Objective diameter 36 mm
• Field of view at 100m < 2.1 m
• Shortest distance to target < 1.0 m
• Multiplier 100
• Compensator working range ±15'
• Setting accuracy < 0.5".
• Horizontal edge reading 360°
• Sensitivity of the vial 8'/2 mm
• Standard deviation
• for 1 km double leveling 2.0 mm
• IP classification IP 54
• Threaded connection 5/8"

Scope of delivery

• NA324 Leveling Instrument
• Suitcase
• Manual
