Leica 848435 Lino L2S-1 Cross line laser

Leica 848435 Lino L2S-1 Cross line laser

Product Description

• The self-levelling cross line laser L2s-1 from Leica
• The time-consuming process of the spirit level is over
• Set up the line laser and it will level itself with a range of ± 4º
• The large glass lens ensures that the exit range of the laser is very large and displays the lines clearly with a range of 25 meters
• The 2 lasers combined provide an exact angle with only 1 push of a button
• The self-levelling feature can also be switched off using the locking function, useful for aligning at any angle, for example on stairs
• The locking function also acts as transport protection

Features

• Self-levelling line laser
• Large exit angle
• Working in very bright light conditions possible
• Clear laser lines
• Range of 25 metres without receiver / 80 metres with receiver
• 2 lasers (vertical and horizontal)
• Accuracy 0,2 mm
• Self-levelling range: 4°
• Self-levelling time:< 3 s
• Laser line thickness at 5 meters: 2 mm
• Laser type: 635 nm / class 2
• Battery type: Li-Ion rechargeable (or AA 3 x 1,5V)
• Working time: up to 44 hours with Li-Ion battery
• Storage temperature: -25 to 70 °C
• Operating temperature: -10 to 50 °C
• Locking function
• Screw thread Lino: 1/4
• Wall clamp thread: 1/4 5/8
• Dimensions: 110 x 60 x 100
• Light in weight
• Beschermklasse: IP54

Technical data

• Net weight (kg) 0,5
• Dimension width 60 mm
• Dimension depth 100 mm
• Dimension height 110 mm
• Protection IP54
• Operating temperature -10°C TO 50°C
• Rechargeable battery LI-ION / AA 3 X 1,5V
• Range 25M / 80M with laser receiver
• Laser class 635 NM / 2
• Water level accurate ± 2 mm at 5 m
• Vertical accuracy ± 0.75 mm at line length of 3 m

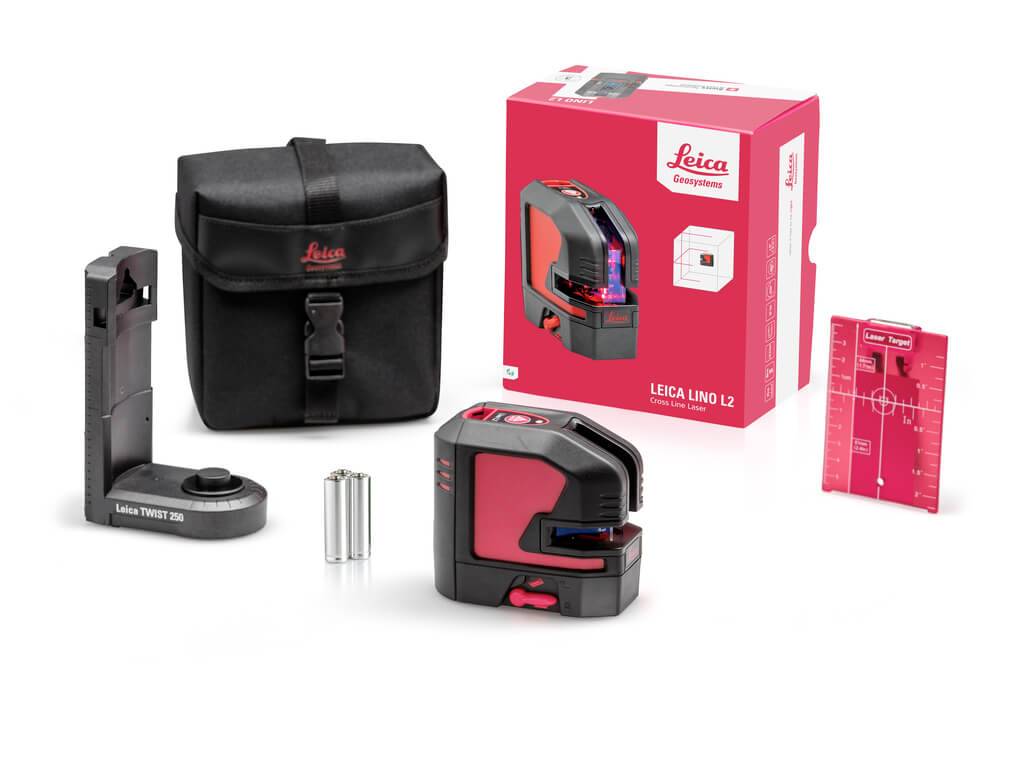

Includes

• Leica Lino L2s-1
• Note
• Magnetic multifunctional adapter
• Ball adapter for tripod
• Alkaline batteries (type AA, 3 x 1.5 V)
• Carrying case
