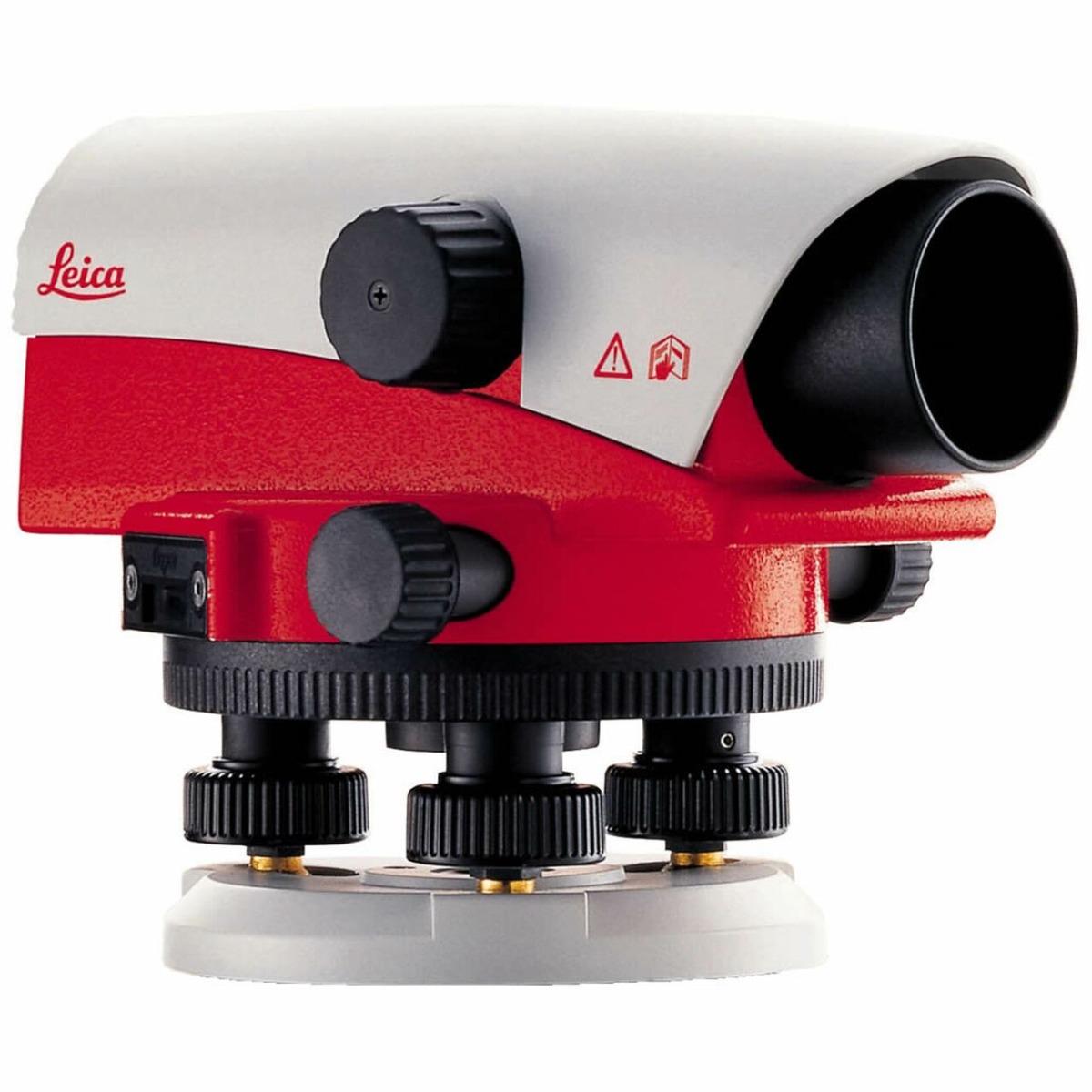

Leica NA720 Level Instrument Automatic 20x 641982
Special characteristics
- This leveling instrument is distinguished by its precision and robust construction.
- Minor falls or falls into dirty water do not matter to this device.
- The housing is absolutely waterproof and dustproof.
- In addition, the circular scale on this level can be easily switched between degrees and decimal degrees.
- Furthermore, the device has a high light intensity.
- This allows you to read clearly and precisely even under difficult lighting conditions.
- Automatic horizontal alignment with pendulum compensator.
- Easy adjustment with the mirror visor.
- Quick and precise aiming with the fine adjustment on the side.
- Easy to read with the 20x magnification.
- Impact resistance according to ISO 9022-33-5.
Technical data
- Magnification 20x
- Diameter objective 30 mm
- Field of view at 100m < 2.1 m
- Shortest distance to target < 0.5 m
- Multiplication factor 100
- Compensator working range ±15'
- Setting accuracy < 0.5"
- Horizontal edge reading 400 GON
- Sensitivity of the vial 10'/2 mm
- standard deviation
- for 1 km double leveling 2.5 mm
- IP rating IP 57
- Threaded connection 5/8"
Included
- NA 720 Leveling Instrument
- Suitcase
- protective cover
- Allen key
More Information
| EAN | 7640110691755 |
|---|---|
| Order Number | 641982 |
| Manufacturer | Leica |
| Warranty | 3 years |
