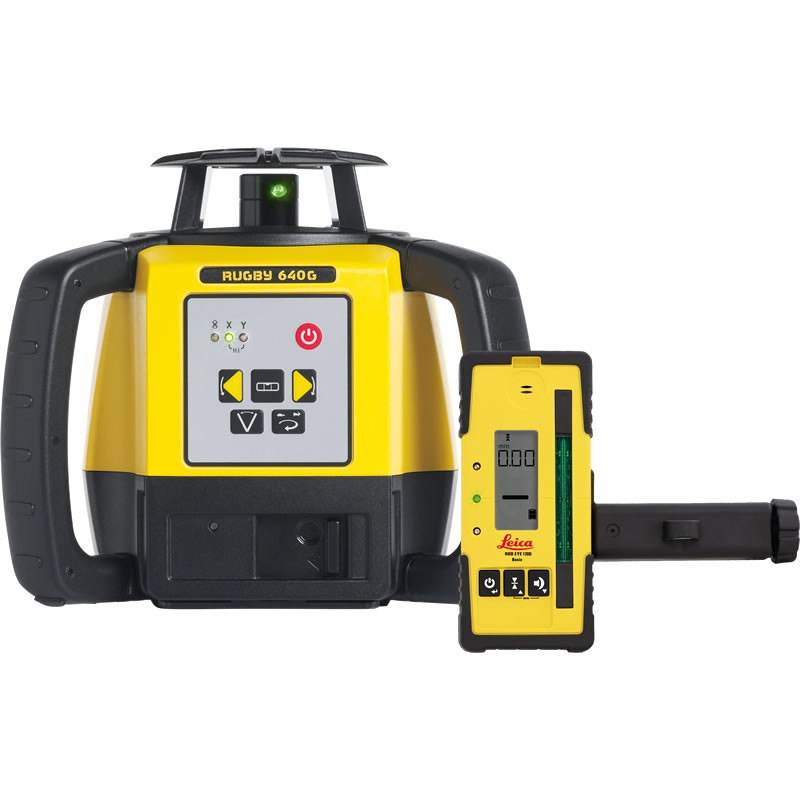

Leica 6011487 Rugby 640G Green Self-Leveling Horizontal/Vertical Laser + Rod Eye 120 + RC400

Leica Rugby 640G Green Self-Leveling Horizontal/Vertical Laser + Rod Eye 120 + RC400 6011487

The Leica Rugby 640G universal laser provides contractors with the ability to perform all horizontal, vertical and simple grade tasks quickly and reliably, providing high versatility in general construction and interior construction applications. The green beam makes the visibility 3 times higher than with a red beam laser. For easy beam detection, use the simple Leica Rod Eye 120 laser receiver.

Characteristics

• The Leica RC 400 remote control increases functionality and application flexibility and allows contractors to: effortlessly
  perform grade and plumb jobs
  move scan lines
  change rotation speed
  save battery life where needed.
  easily and accurately stake out and align interior walls using the Scan 90° function, automatic plumb line and 90° reference beam.
• Long working hours:
  Avoid waiting times due to low battery status: the Rugby 640 construction laser comes in a package with the rechargeable long-life Li-ion battery that can be charged during use, e.g. in the car with the car charger (optional accessory) or from each battery using the 12V battery cable (opt.).
  Contractors working on large construction sites with high hours of sunshine will benefit greatly from the optional solar panel that can be attached to the carrying case for free charging of the Rugby 640 laser.
• Best value for money:
  The multi-function laser Rugby 640G offers contractors a professional solution with excellent value for money, making leveling and alignment for structural and drywall construction quick and easy. Contractors benefit from the extremely robust Li-ion battery with versatile charging options, and the Leica Rod Eye receiver can be used with it for added functionality and application flexibility. The strong service offering - PROTECT by Leica Geosystems, includes a lifetime manufacturer warranty and a three year No Cost* period for the Rugby 640 rotary laser.
• * Available for free through online registration within 8 weeks of purchase date

Technical data

• Accuracy 0.5mm / 10 meters
• Operating range Ø (receiver) 400 meters*
• Range (receiver) 200 meters*
• Visibility range (indoor) 30 meters*
• Zelfnivellerend Ja
• Self-level ± 5 °
• Mechanism Servo Motors
• Grade 8% in X-axis and 8% in Y-axis
• Gradient mechanism Manual
• Grade input Manual
• Total grade 12% (total of the two axes)
• Plumb Yes (below)
• Rotational speed 0/60/150/300/600 rpm
• Laser Diode Class 2, 520nm, Green
• Protection IP67
• Working time 40 hours (depending on circumstances)
• Power supply Lithium Ion Battery
• Rechargeable Yes
• Mains connection Yes
• Working temperature -10°C to +50°C
• Weight 2.4kg
• Connection 5/8"
• Dimensions LxWxH 212 x 239 x 192 mm

Included

• Leica Rugby 640G
• Leica Rod Eye 120G Receiver with Rod Clamp
• Leica RC400 remote control
• Battery Li-Ion
• Charger
• Suitcase
