Leister 163.136 TRIAC ST Hot air unit 230V/1600W, EASYFLOOR Kit, EU plug

Leister 163.136 TRIAC ST Hot air unit 230V/1600W, EASYFLOOR Kit, EU connector

Special features

• The new TRIAC ST from Leister is primarily used for welding and processing plastics. During the development of this device, additional technical functions were deliberately dispensed with. Even more than its predecessor, the TRIAC S, this tool stands out for its manageability, reliability and versatility. Its striking feature is the handle made of two-component material, which is not only optically attractive but also offers the user a perfect grip.
• The low weight of less than 1 kg ensures perfect weight balance. Good to hold, reliable and versatile are the apt arguments for the TRIAC ST. Its two-component handle offers the user perfect grip, the low weight of less than 1 kg ensures optimal balance of weight. The innovative motor and turbine design, and the heating element known from the TRIAC AT make it even more valuable. More than 80 nozzles fit on the TRIAC ST, which are also compatible with the TRIAC AT and TRIAC S.
• The six-piece TRIAC-ST-EASYFLOOR kit ideally complements the Leister MINIFLOOR and UNIFLOOR 500 automatic floor welding machines. The practical Leister floor welding kit is designed for sealing joints in resilient floor coverings. These can be PVC (vinyl), PUR, CV and LVT, as well as natural materials such as linoleum and rubber.

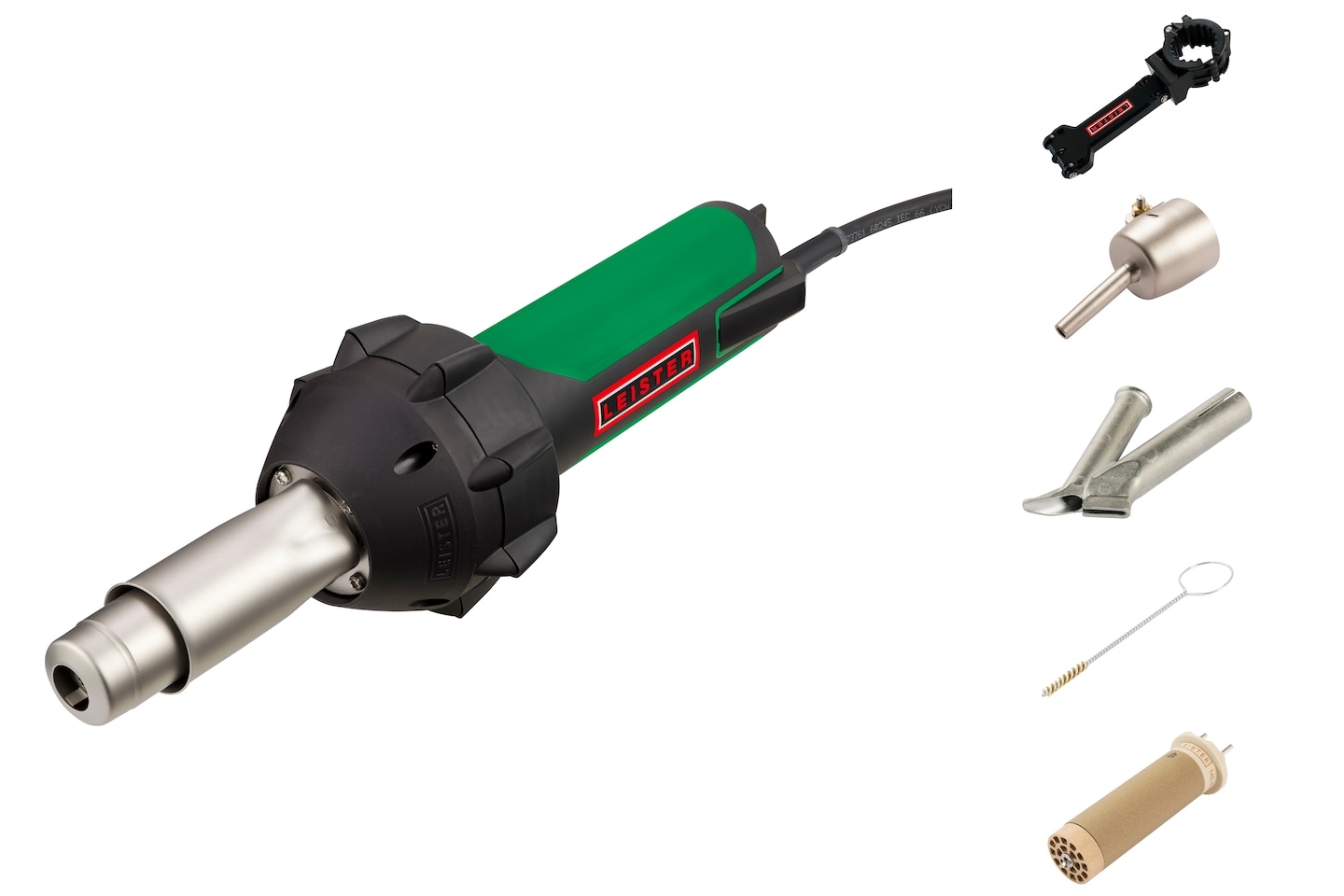

• The practical flooring kit includes the following Leister products: TRIAC ST hot air blower, EASYFLOOR holder (item no. 173.478), tube nozzle (item no. 100.303), high-speed nozzle with narrow air slot (item no. 105.433), cylinder brush (item no. 114.239) and a spare heating element. The EASYFLOOR, a fixture for the TRIAC ST and TRIAC AT, significantly improves welding quality when welding joints manually. The adjustable angle and precise guidance ensure constant preheating. Bottom layers weld easily and without forearm fatigue, even during prolonged manual welding.

Advantages

• 100% Swiss Made Quality
• 60 years of expertise in the construction of hot air blowers - concentrated in the new TRIAC ST.
• The robust, professional hot air blower under 1 kg
• Functional design: 2K handle and optimal center of gravity position ensure ergonomic work
• Quick cleaning of the air filters
• Automatic carbon stop (collector protection) and heating element protection

Applications

• Floor laying

Technical data

• Voltage 230 V
• Frequency 50/60 Hz
• Power 1600 W
• Temperature 40-700 °C
• Temperature setting Yes
• Air flow rate (20°C) 1000 l/min
• Stepless air flow rate adjustment None
• Static pressure 3000 Pa
• ECO Mode None
• Display None
• E-Drive None
• Outdoor use Yes
• Connection nozzle Ø 31.5 mm / 1.25 in
• Length 338 mm
• Device diameter 90 mm
• Diameter handle 56 mm
• Weight 0.99 kg
• Power cable length 3 m
• Plug EU, 2-pole, 16A
• Noise level 67 dB (A)
• Approvals CE
• Protection class II
• Country of origin Switzerland

Scope of delivery

• 173.478 EASYFLOOR
• 114.239 Cleaning brush brass ø 5 mm
• 100.303 Tube nozzle (ø 31.5) ø 5 mm, 37 mm
• 105.433 High-speed gas nozzle (ø 8.0) Profile D ø 5

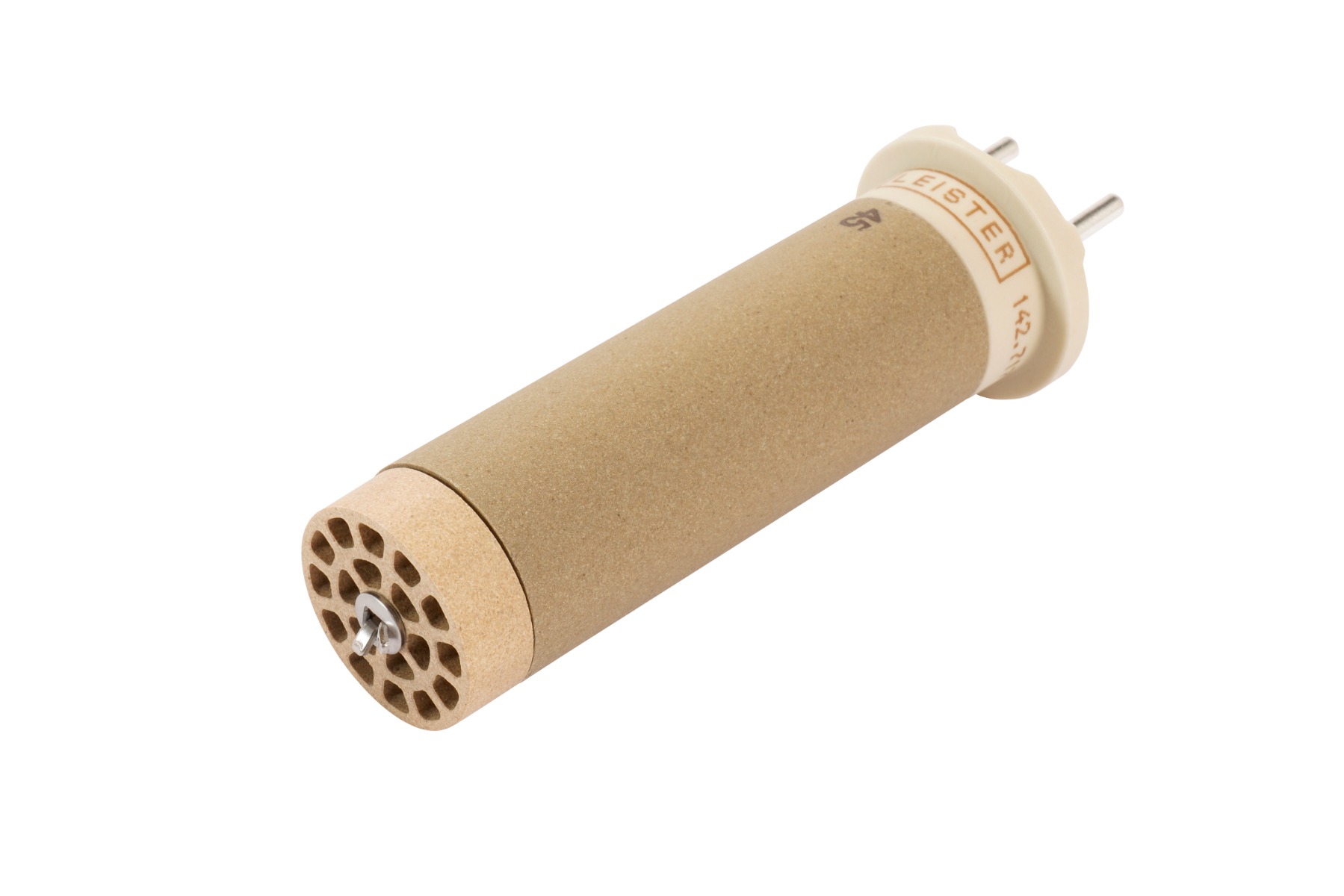

• 142.717 Heating element, 230V/1550W
• 116.586 Tool case
