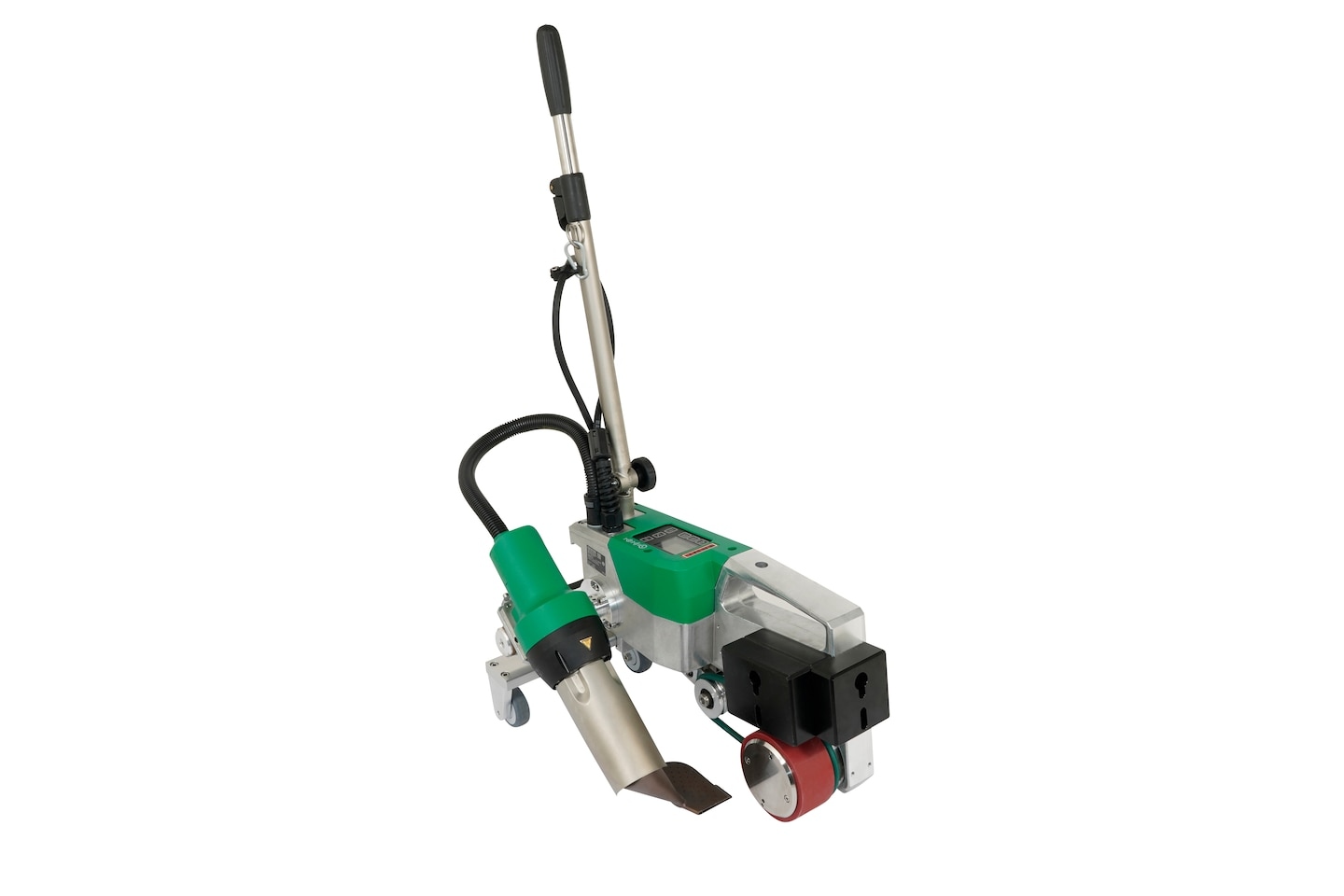

Leister 170.210 UNIROOF 700 Welder 230V/3680W, 80mm, EU, 3-pole, 16A

Leister 170.210 UNIROOF 700 Welder 230V/3680W, 80mm, EU, 3-pole, 16A

Special Features

• The UNIROOF 700 is a compact, automatic welding machine suitable for welding thermoplastic membranes (e.g. made of TPO, PVC, EVA, PIB and modified bitumen) on flat roofs up to approx. 500 m² and gently sloping roofs (slope up to 30 degrees). It complements the globally proven Leister line of automatic roof welding machines. With the Leister Quality System (LQS), not only are the important welding parameters (temperature, air volume and speed) under control, but also the welding quality is accurately documented.
• The "LQS Roofing" service can be used via the myLeister app if required. Reports with the welding data are then generated as PDF or CSV files via the myLeister app. In addition, it is possible to access the reports at any time via the cloud. To do this, users must have access to the Internet. Thanks to the tools' GPS integration, roofers can prove the quality of their work via GPS coordinates. Leister is setting a new, quality standard in the roofing industry. All the info about the LQS Roofing service, as well as the link to download the myLeister app, can be found on our website under SERVICES/MYSERVICES. The Monitor Welding Assistant ensures better quality control, as it alerts the user with an alarm and makes the digital display glow red if the machine leaves the welding zone during the welding process. Even if undervoltage occurs, the welding performance of the UNIROOF 700 is not affected thanks to the Leister power management system. If there is too much undervoltage, the UNIROOF 700 switches off because the quality of the weld seam is no longer guaranteed. A homogeneous weld seam is ensured with the standard nozzle specially developed for both UNIROOF 300/700 models (fitted on delivery). Moreover, insertion of the nozzle into the overlap seam is extremely easy. For TPO roofing membranes and difficult-to-weld geomembranes, Leister also recommends the patented scraper nozzle, which was also developed for both automatic roofing machines. The UNIROOF 700 voltage display allows users to check the voltage before welding and make changes if undervoltage occurs. For example, undervoltage can occur due to faulty extension cables and affect the quality of the weld. The UNIROOF 700 has low-maintenance, brushless motors. The excellent welding speed should also be noted. For example, the UNIROOF 700 welds PVC membranes at speeds of up to 10.8 ft/min. at 1076°F. This makes the automatic welding machine 20% faster than the UNIROOF 300. In Eco mode, the UNIROOF 700 saves up to 30 energy when the temperature and air volume reach their maximum capacities. Its slim design and movable conveyor shaft eliminate the need for time-consuming conversions for different applications. The UNIROOF 700 effortlessly welds close to the edge, up to 100 mm on and at the parapet, on large, flat roofs or hard-to-reach areas such as skylights. Another advantage is the LiveView with the myLeister app. This allows site supervisors to check the welding parameters of the UNIROOF 700 directly on their smartphone or tablet. In short: With its unbeatable advantages such as the Leister Quality System (LQS), the Monitor Welding Assistant and the standard nozzle, the UNIROOF 700 is ideally suited for flat roof welding and sets a new standard in the roofing industry. In addition, the UNIROOF 700 is prepared for software updates regarding future services, making it a safe investment.

Advantages

• Quality assurance by LQS: The LQS report with roof data can be used via the myLeister app for a small fee. Welding parameters (speed, air volume and temperature) are thus under control and documented.
• Supervised Welding: The supervised welding assistant on the UNIROOF 700 monitors the welding process and alerts users when they leave the welding zone.
• Welding recipes in the myLeister app: The myLeister app provides an overview of saved welding recipes. Prefabricated welding profiles for TPO, PVC, EVA, PIB are already entered.

Applications

• Bitumen welding
• Welding membranes for pitched roofs
• Welding membranes for flat roofs
• Truck tarpaulin welding
• Swimming pool waterproofing

Technical data

• Voltage 230 V
• Frequency 50/60 Hz
• Power 3680 W
• Speed 1 - 10 m/min
• Temperature 100 - 620 °C
• Air flow rate adjustable Yes
• Welding nozzle / Seam width 80 mm
• Welding materials Bitumen; EPDM; PIB
• LQS Yes
• Brushless Blower motor Yes
• Length 475 mm
• Width 360 mm
• Height 260 mm
• Weight 19.9 kg
• Plug EU, 3-pin, 16A
• Power cable length 3 m
• Approvals CB Certification; CE; UKCA
• Protection class I
• Country of origin Switzerland

Scope of delivery

• 132.429 Welding plate
• 138.817 Hand brush, stainless steel
• 100.530 Allen wrench 4 mm
• 154.827 Tool case
