Lievers 260000EURO DuoScreed drive unit Honda GX-35 4-stroke Vibratory Screed

Lievers 260000EURO DuoScreed drive unit Honda GX-35 4-stroke Vibratory Screed

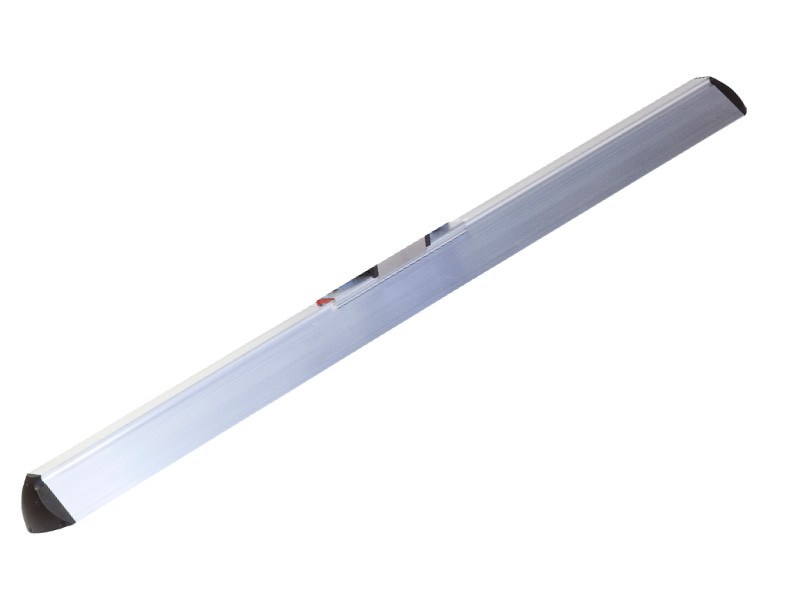

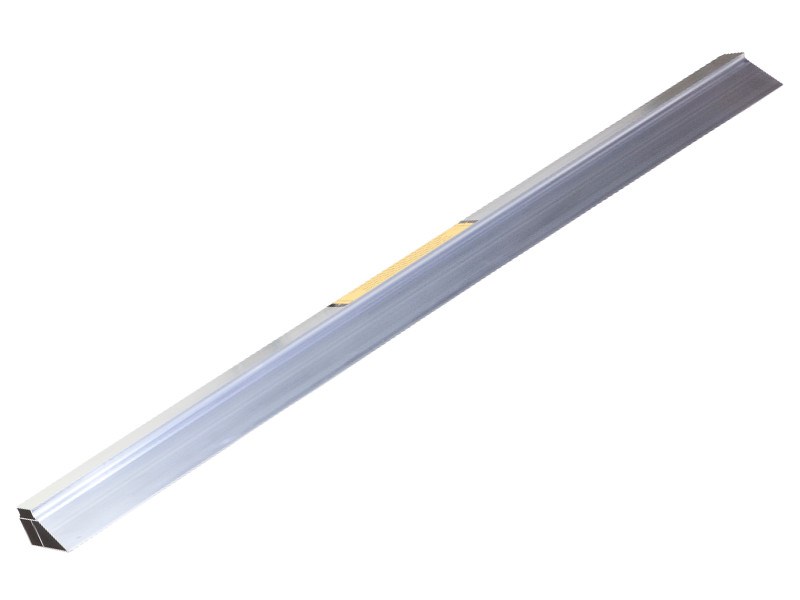

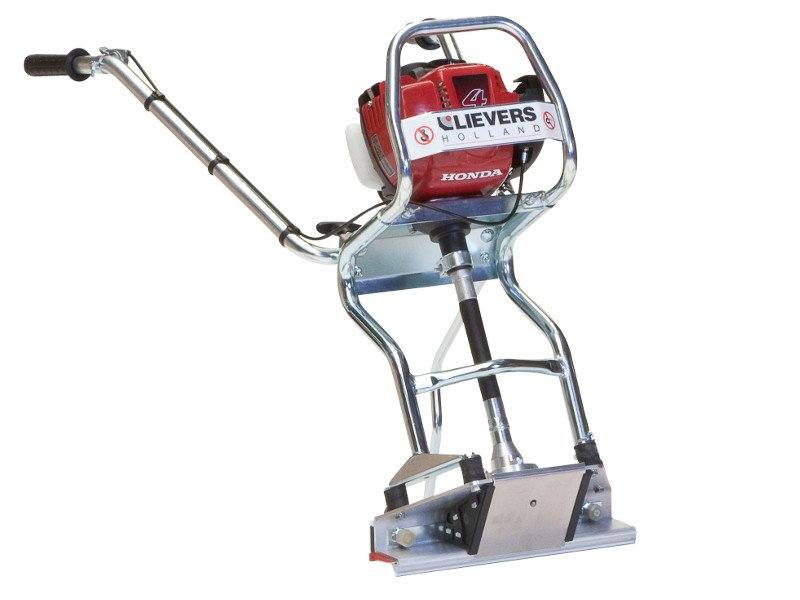

A multifunctional machine which can be used as vibrating beam and as a screed. DuoScreed is a combination of screed and vibrating beam in 1 machine. The patented machine (patent no. 1010349) consists of 2 components: a drive unit and an interchangeable profile available in various sizes. The drive unit weighs only 13 kg and is equipped with a 4-stroke Honda GX-35 engine. The standard profiles are made of aluminium and are also internally reinforced. The high rigidity achieved by this guarantees a flat floor finish. There are also lightweight (LW) profiles of only 2.9 kg/m1 available which also guarantee an excellent result.

Features

• Easy to transport due to delivery in 2 components
• The drive unit is equipped with a quick-clamping system with which aluminium and lightweight profiles of different dimensions can be changed easily and quickly without any tools
• Special sealing caps at the ends of the profile prevent the so-called drop-off edges on the concrete floor
• The drive unit is equipped with a height-adjustable and collapsible double operating handle for transport or storage
• By turning the drive unit 180°, the DuoScreed can be used as a screed or vibrating beam
• The vibration force is adjustable in 4 positions so it can be adapted to the length of the profile and/or the composition of the concrete
• From a length of 5.5 metres, 2 drive units must be used. (optional)

Specifications

• Propulsion four-stroke Honda petrol engine
• Feed Euro 95 petrol
• Power 1.6 HP - 1.2 kW
• Vibration frequency 5,500 vibrations per minute
• Vibration acceleration 5.39 m/s²
• Maximum exposure 6.8 hours
• Noise level 50 dB(A)
• Working width 150 cm, 154 cm, 183 cm, 190 cm, 244 cm, 250 cm, 300 cm, 305 cm, 366 cm, 375 cm, 425 cm, 427 cm, 488 cm, 500 cm, 550 cm, 600 cm (Optional)
• Weight 13 kg
• Pole length 90 cm
• Cord length Not available
• Degree of protection IP54

Includes

• Manual
• Delivered without profiles, these are optional!
