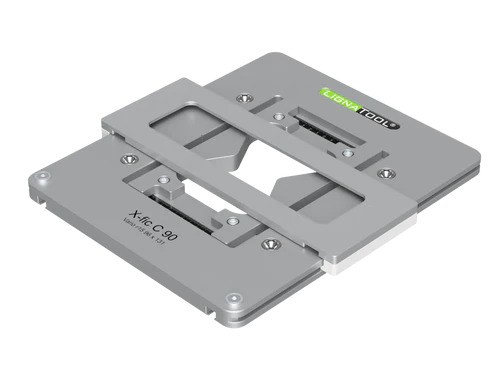

Lignatool LTX5022 Set X-Fit C 90 Vario Milling Template

Lignatool LTX5022 Set X-Fit C 90 Vario Milling template

Special features

• Connecting cross-laminated wood panels at the front or corners without using steel components or screws is complicated and time-consuming.
• The X-fix milling templates allow milling for the patented and ETA-18/0254
  approved X-fix wood connector and the components are connected together very quickly and optimally.
• The mold can be attached with screws or quick release clamps.
• The plastic locking plate is screwed to the bottom of the router.
• The copying ring is attached to the locking plate with a snap ring. During milling, the copying ring slides along the template and stops, following the milling contour.
• Suitable for Festool OF1400, OF2200, Mafell LO65, Dewalt 626, Makita RP2300 series ( router with special shank ).
• It can be milled to a depth of 90 mm.

Advantages

• Big for the workshop, but not too big for the construction site, making it easy to transport.
• The router is hooked securely into the router guide with the locking plate by rotating it 90 degrees. This allows you to work safely and without fatigue.
• Processing wooden parts in-house keeps the added value within your company.
• Some components such as the locking plate, various stops, etc. are interchangeable and combinable with other Lignatool milling systems.
• Save valuable work time through rapid on-site assembly.
• Wood joints are aesthetically demanding, which is especially important for orders with visible wood structures.
• Enables efficient, reliable and non-destructive dismantling of buildings and projects.
• With our approval ETA-18/0254, we offer you guaranteed quality and reliability.
• Be convinced and inspired by the static load capacity of this high-quality wood joint.

Technical data

• Milling size 96 x 130 mm
• Milling depth up to 90 mm

Standard included

• Systainer
• Milling template
• Milling guide
• 2 x screw clamp
