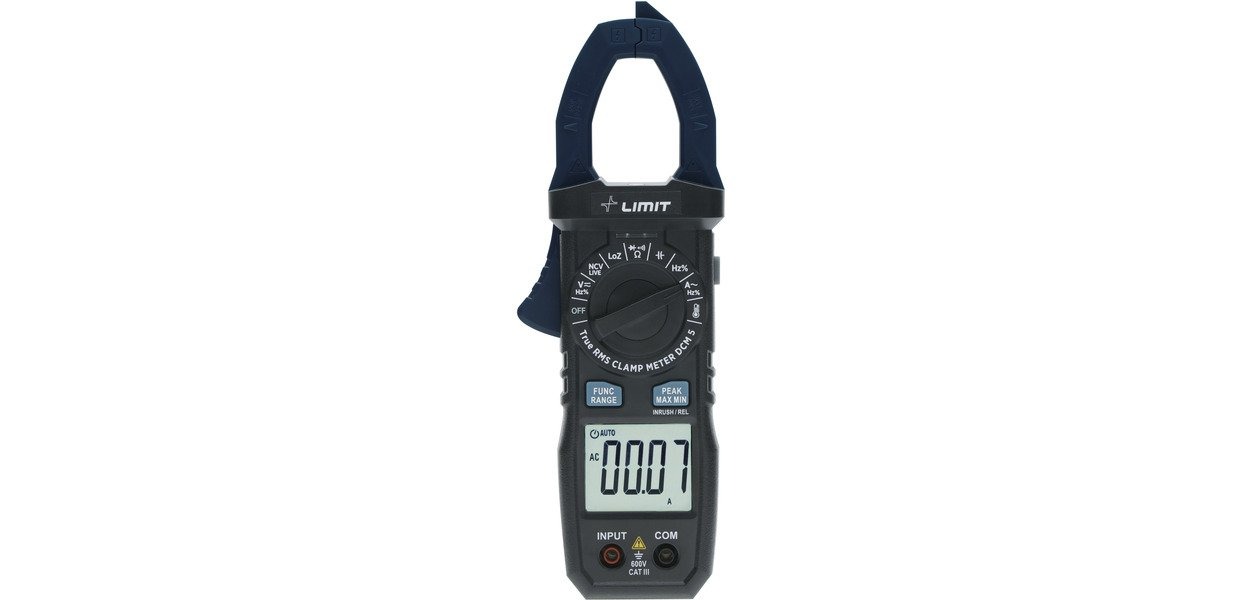

Limit 144800109 LIMIT DCM5 Digital current clamp multimeter incl. clamp

Limit 144800109 LIMIT DCM5 Digital current clamp multimeter incl. clamp

Special features.

• True RMS: For accurate measurements of both pure and distorted signals
• Built-in flashlight: Easily find the right connections in dark electrical cabinets
• Large illuminated display: Features 19 mm high digits for optimal readability
• Inrush function: Records high starting currents of electric motors and compressors
• LoZ measurement: Prevents measurement errors caused by induction voltage (phantom voltage) in nearby cables
• High ease of use: Includes Data Hold, Max/Min recording and automatic shutdown
• Function:Application
• Current & Voltage: Alternating Current (AC), Alternating Voltage (AC) and Direct Voltage (DC)
• Low Impedance (LoZ): Reliable voltage measurement without the influence of phantom voltages
• Temperature: Measurement in both °C and °F (including K-type probe)
• Resistance & testing: Resistance, Continuity (beep), Diode and Transistor test
• Capacitance & Frequency: Capacitors (Farad) and Frequency measurement (Hz)
• Safety: NCV (non-contact), Phase detection and overload protection

Technical Data

• Display: LCD with backlight, 6000 counts
• Safety class: CAT II 1000V / CAT III 600V (according to IEC 61010)
• Physical: Ergonomic design with 19 mm digit height and built-in flashlight
• Display: 6000 counts
• Safety isolation: CAT III 600V
• True-RMS: Yes
• NCV (Non-Contact Voltage): Yes
• Continuity test: Yes
• Diode test: Yes
• Auto power off: 15 min
• Batteries: 2 x AAA 1.5V (3V)
• Max. Voltage AC: 1000 V
• Min. Voltage AC: 6 V
• Voltage accuracy (AC): ±(1.0% + 5)
• Voltage resolution (AC):6 V - 1 mV, 60 V - 10 mV, 600 V - 100 mV, 1000 V - 1 V
• Max. Voltage DC: 1000 V
• Min. Voltage DC: 600 mV
• Voltage accuracy (DC):
• 600 mV - 600 V: ±(0.5% + 3)
• 1000 V: ±(0,8% + 5)
• Voltage resolution (DC): 600 mV - 0.1 mV, 6 V - 0.001 V, 60 V - 0.01 V, 600 V - 0.1 V, 1000 V - 1 V
• Max. AC current: 600 A
• Min. AC current: 6 A
• Current accuracy (AC): ±(2.5% + 10)
• Current resolution (AC): 0.1 A
• Max. resistance range: 60 MΩ
• Min. resistance range: 600 Ω
• Resistance resolution:600 Ω - 0.1 Ω, 6 kΩ - 0.001 kΩ, 60 kΩ - 0.01 kΩ, 600 kΩ - 0.1 kΩ, 6 MΩ - 0.001 MΩ, 60 MΩ - 0.01 MΩ
• Max. frequency: 10 MHz
• Min. frequency: 10 Hz
• Frequency accuracy: ±(0.5% + 4)
• Frequency resolution:, 10 Hz - 0.001 Hz, 100 Hz - 0.01 Hz, 1000 Hz - 0.1 Hz, 10 kHz - 0.001 kHz, 100 kHz - 0.001 kHz, 10 MHz - 0.001 MHz
• Max. capacitance measurement range: 100 mF
• Min. capacitance measurement range: 10 nF
• Length: 210 mm
• Width: 74 mm
• Height: 40 mm
• Weight: 0,24 kg

Scope of delivery

• 1x Current clamp
