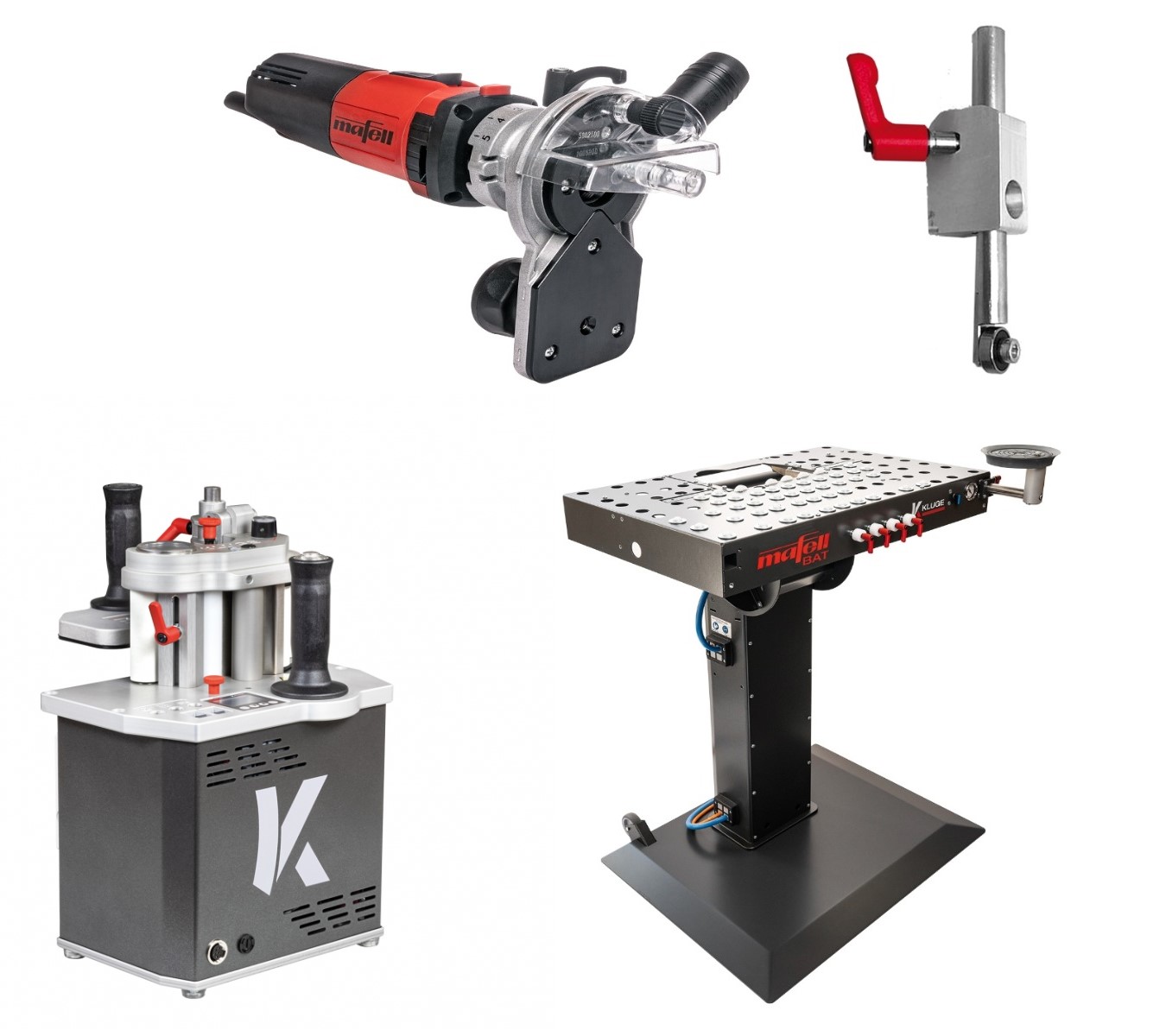

Mafell 1P0244 HIT-M65SA Seamless Edgebanding Machine + BAT+ Machining Table + Pressure Roller BAT + KF1000 Edge router

Mafell HIT-M65SA Seamless Edgebanding Machine + BAT+ Machining Table + Pressure Roller BAT + KF1000 Edge router

Description HIT-M65SA

• The HIT-M is the first and only mobile device for the realization of optically seamless joints. With the hot air injection, all seamless edgings available on the market can be processed with applied bonding layer - without using additional adhesive for the joint.
• The HIT-M is flexible and ideal for complex parts. The advantages are particularly great with free forms or small radii. In addition, perfectly straight, angled and round sheet materials can be processed.
• Perfectly straight, angled, curved and round sheet materials and shaped parts can be processed. Bevelled cutting edges of up to 55° can be easily realized.
• The working temperature is reached a few seconds after the aggregate was switched on. Intensive paint changes and cleaning of the glue pool are eliminated with the HIT-M.

Advantage HIT-M65SA

• For slanted sheet edges, the support plate can be swivelled up to 50°.
• Automatic edge retraction with edge detection as a stop function.
• Clear arrangement of the controls ensures easy and intuitive operation of the HIT-M.
• Connection socket for optionally available foot switch.

Applications HIT-M65SA

• Optimal e.g. for larger shaped parts and use on the construction site.
• For sheet metal with an edge height of up to 65 mm

Technical data HIT-M65SA

• Battery voltage 230 V
• Power consumption 3050 W
• Edge height 10 - 65 mm
• Miter range 0 - 50 °
• Edging strip thickness 0.4 - 3.0 mm
• Interior radius min. 12 mm
• Warm-up time 30 s
• Operating temperature max. 520° C
• Stepless feed rate 1 - 5.5 m/min
• Weight 10,8 kg
• Compressed air connection 6 - 10 bar
• Dimensions (L x W x H) 220 x 160 x 360 mm

Standard accessories HIT-M65SA

• 1 swivelling driven roller
• 1 swiveling support plate
• 1 cleaning brush
• 1 locking pin
• 1 adjusting knob
• 1 hexagonal wrench 2.5 mm
• 1 hexagon socket wrench 3 mm
• 1 hexagon socket wrench 4 mm
• 1 hexagon socket wrench 5 mm
• 1 hexagon socket wrench 6 mm
• 1 oil needle bottle
• 1 eye bolt with shackle
• 1 connection set 5 m (voltage/pressure air)

Description BAT+

• In combination with the BAT machining table, the mobile edge processing machine with zero joint becomes a semi-stationary system.
• Due to the perfect support of the workpiece with movable ball rollers, almost all edge processing variants are possible.
• Perfectly straight, inclined, curved and round sheet materials and shaped parts can be processed.
• Bevelled cutting edges of up to 55° are easily achieved.

Applications BAT+

• Semi-stationary system for use with edge processing machine with zero joint HIT-M

Advantage

• Ball bearing rollers can be positioned or moved individually.
• Ideal for variable positioning. For easy transport and mobility in the workshop.
• Angles of 0 - 55° can be freely adjusted.

Technical data BAT+

• Overall dimensions (L x W x H) 790 x 663 x 1000 mm
• Table top dimensions 780 x 490 mm
• Working height 1000 mm
• Miter range 0 - 55 °
• Electrical connection 230 V / 16A
• Compressed air connection 6 - 10 bar
• Weight 12,0 kg

Standard accessories BAT+

• 42 ball rollers
• 1 connection set 4 m tension / compressed air
• 1 angle table, pneumatically adjustableb
