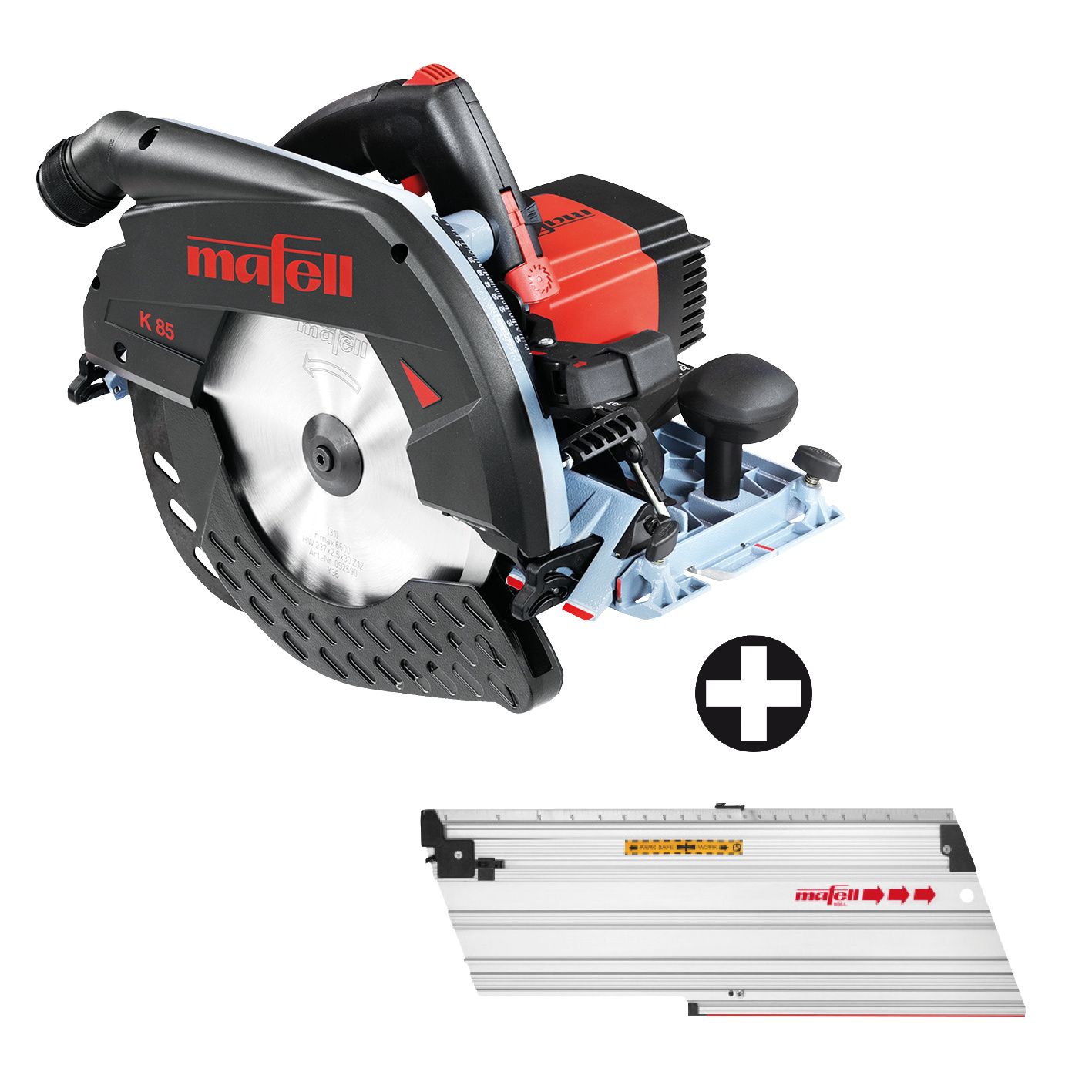

Mafell 1P0487 K 85 Accu Manual Circular Saw excl. battery and charger in L-MAX + Cut-off ruler L

Mafell 91E702 K 85 Manual Circular Saw in L-Max 237 mm

Features

MAFELL's handheld circular saws combine power and precision with ease of use and ergonomics. These defining features are uniquely united. With MAFELL's ErgoBalanceConcept, the tools are optimized for long-term use and overhead work. This guarantees precise work and ergonomically optimal support. Thus you efficiently avoid fatigue, pain and cramping. Concentrated power and high torque have a name: CUprex. This new power motor with digital electronics and newly developed steering technology provides optimum efficiency. In addition, the speed can be infinitely adjusted to all materials and applications. Removing the riving knife is no longer necessary - the spring-loaded FLIPPKEIL riving knife offers you optimum ease of use and safety when plunge-cutting.

Applications

• Angled cuts / double mitre cuts up to 60°
• Notching
• Chamfers and notches
• Materials such as: Panels, doors, worktops, paneling, interior trim and renovation

Advantage

• Optimal chip ejection, especially suitable for cutting insulation materials.
• Bright LED lights provide wide and even illumination of the workpiece.
• Razor-sharp cutting: the saw cut indicator automatically adjusts to the mitre angle setting.
• For greater cutting depths: up to 88 mm. Also from the guide rail, an unprecedented cutting depth of 82 mm is achieved.
• The cutting depth can be set and locked with one handle.
• The new angle setting with optimally readable graduations.
• Using the groove in the soleplate, the saw can be connected to the crosscut ruler, which is available as an accessory. This allows this saw to be used as a crosscut saw.

Technical data

• Cutting depth 0 - 88 mm
• Cutting depth (a) 0 mm
• Cutting depth (b) 88 mm
• Cutting depth at 45° 0 - 61,5 mm
• Cutting depth at 60° 0 - 44,5 mm
• Mitre range 0 - 60 °
• No load speed 2.250 - 4.400 1/min
• Power consumption 2300 W
• Extraction connection Ø 35 mm
• Saw blade diameter 237 mm
• Weight 6,8 kg
• Universal motor 230 V / 50 Hz

Scope of delivery

• 1 Saw blade HM 237 x 1.8/2.5 x 30 mm, Z 12, WZ, for rip cuts (rip cuts) in wood; Order no. 092590
• 1 Parallel stop K 85-PA; Order no. 205323
• 1 Hexagonal wrench 5 mm
• 1 Connecting cable 10 m
• in L-MAX case

Now additionally included

• Crosscut guide L 208171
