Mafell 916010 DD40P Duo Dumpster - PowerMAX

Mafell 916010 DD40P Duo-Deuvelmachine - PowerMAX

Now a total of 5 years warranty on Mafell DD 40 P Duo Machines(*)

(*) Now a total of 5 years warranty on machines after registration of your machine, using the enclosed warranty form.

Features Duo-Dumpster DD40 P - PowerMAX

• Quick to use Precision stop system Economical connections
• The DD40 duo dowel machine is a unique mobile dowel machine and a MAFELL world first.
• The use of all types of wood dowels in combination with the handy
• MAFELL has succeeded in perfecting joining technology for mobile use with its DuoDuvel machine, the DD40.
• In addition, the DD40-System works faster, more accurately and more economically than any other system.

Technical data DD40 P

• Drilling depth 0 40 mm
• Drilling distance 32 mm
• Mitre range 0 90
• Drill bit holder 8 mm
• Drilling diameter- max 16 mm
• Drilling diameter- min. 5 mm
• Idle speed 13,500 rpm
• Universal motor Voltage 230 V Frequency 50/60 Hz
• Power consumption 1000 W
• Power output 600 W
• Weight 2,8 kg

Includes:

• DuoDowelling System DD40 P PowerMAX in MAFFELL-MAX Order No. 916 010
• 200 MAFELL system dowels (8x30 mm) Order No. 802 010
• 100 MAFELL system dowels (10x40 mm) Order No. 802 020
• 40 MAFELL system dowels (12x60 mm) Order No. 802 030

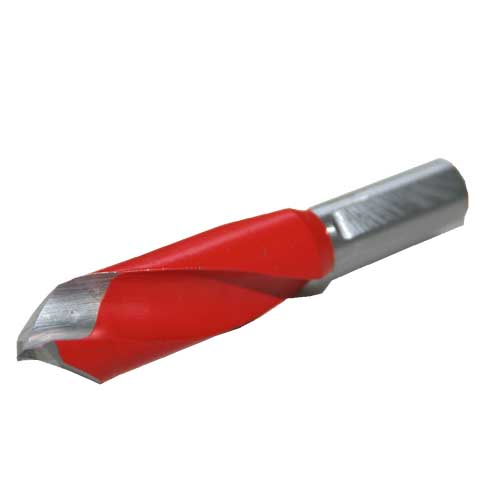

• 2 MAFELL dowel drills ( 8,10,12 mm)

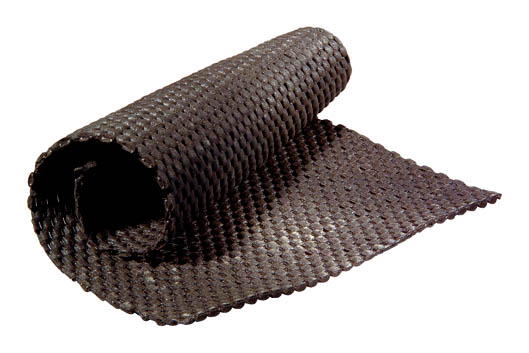

• 2 anti-slip mats Order No. 095 063
• 1 Glue bottle (without content) Order No. 095 059
• 1 Hexagonal screwdriver with handle Order No. 093 282
• 1 Dowelling nozzle, complete ( 8 mm) Order No. 095 060
• 1 Additional stops (assortment) Order No. 203 473
• 1 Connection cable 4 m
