Mafell 91C501 KF1000 Edge router in T-Max

Mafell 91C501 KF1000 Edge router in T-Max

Special Features.

• The digital electronics are equipped with soft start, constant loaded speed, limited clearance speed and overload protection.
• The labyrinth seal permanently protects the spindle and bearing from the smallest particles, dust and chips.
• Extremely quiet with a sound pressure level of only 71 dB (A)
• Spindle stop for easy cutter changes
• Made in Germany
• Stepless fine adjustment of milling depth with a screw setting with 1/10 mm scale
• The connection for the extraction hose is adjustable for an individually optimal working position
• For machining edges, the support ring can be removed
• Large, tiltable, support surfaces for precise results
• Stepless speed adjustment for optimum routing speed
• The large supporting surface also allows for accurate machining of bevels
• Plug-in additional stop provides secure guidance when working on corners
• The brake on the ball bearing guide ring prevents unsightly marks on the workpiece when working sensitive materials
• Standard cutters can also be used to machine edges on solid wood

Applications

• Ideal for smooth and contoured edge processing
• For solid wood, plastics and veneers

Technical data

• Universal motor 230 V / 50 Hz
• Power consumption 1000 W
• Clamping collar 43 mm
• Collet 8 mm
• Dimensions L x H x W 103 x 226 x 328 mm
• Speed at no load 4.000 - 25.000 1/min
• Weight 2,1 kg
• Sound pressure level db (A) 71 dB

Standard accessories

• 1 Support plate for 43 mm collar
• 1 Suction hose adapter
• 1 Open-end wrench 17 mm
• 1 Connecting cable 4 m
• 1 Swivel nut OZ 8

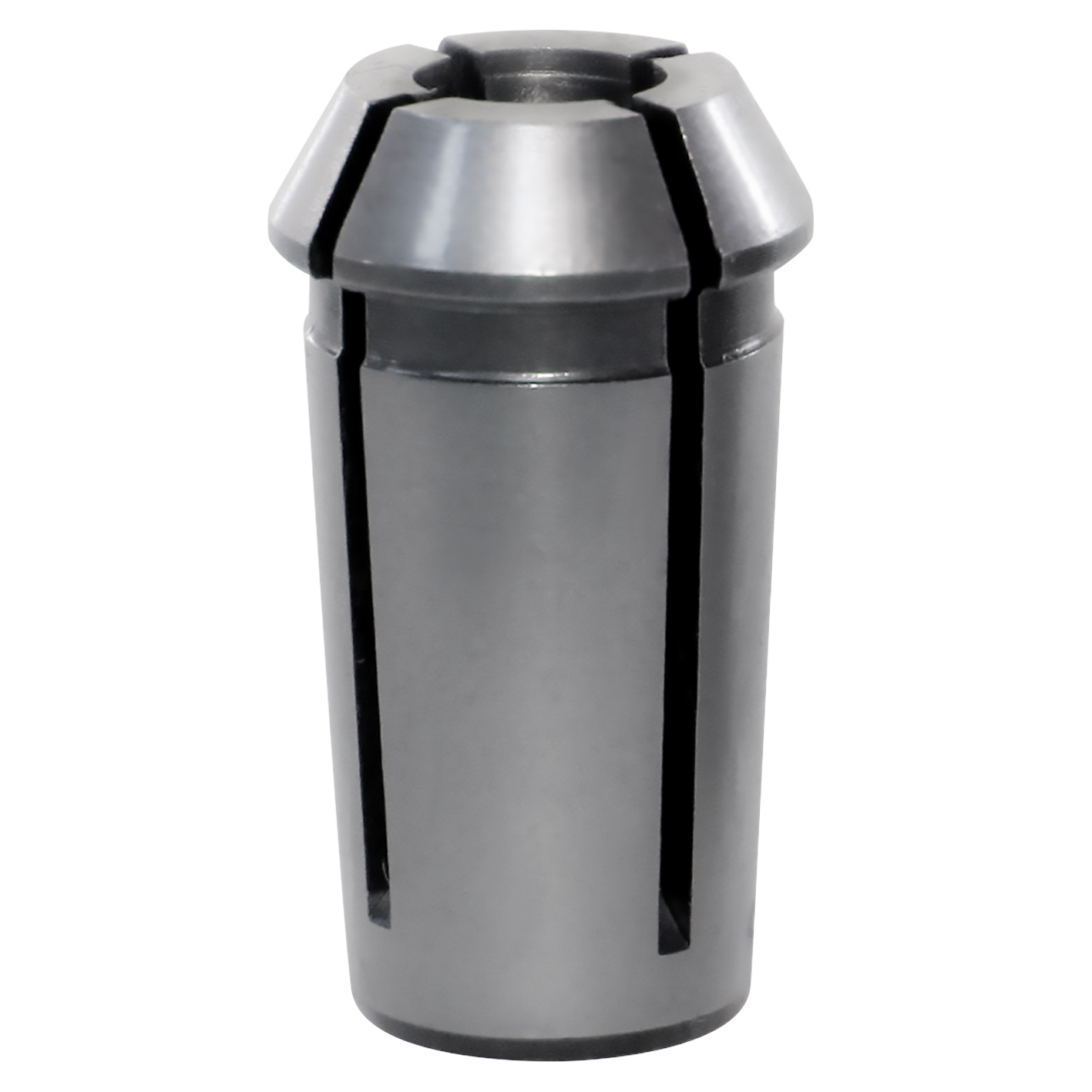

• 1 Collet OZ 8, 8 mm
• Storage case T-Max
