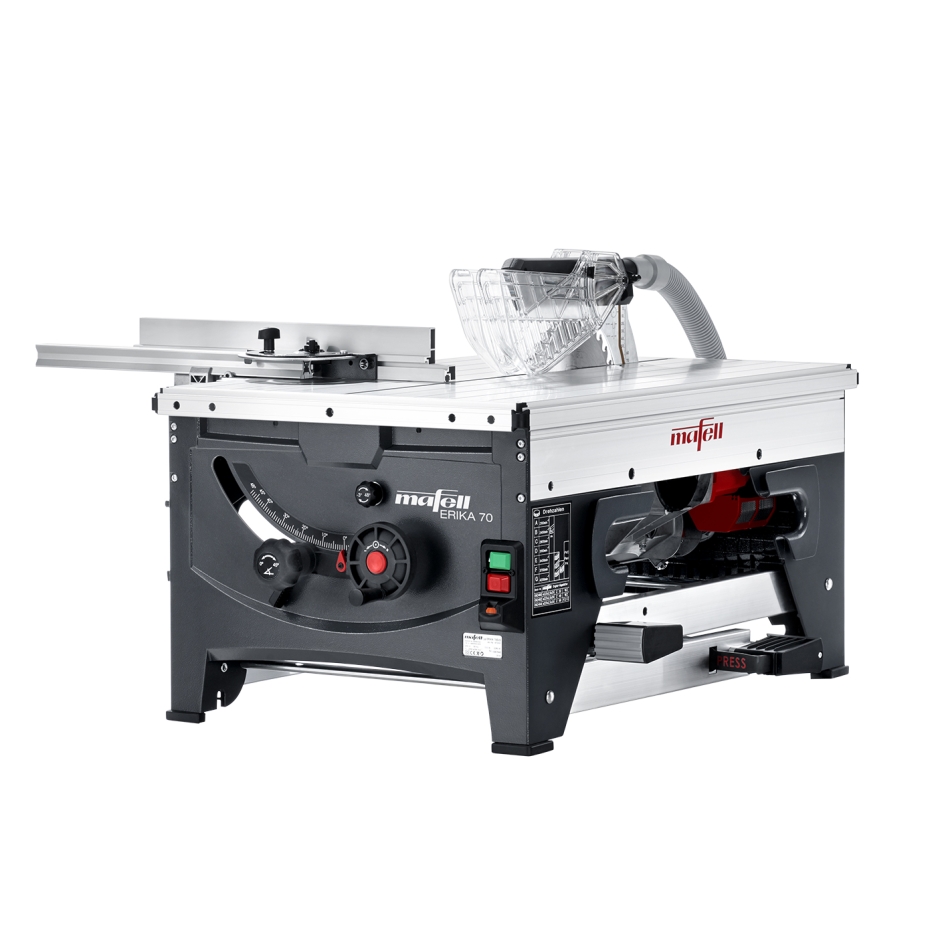

Mafell 972001 ERIKA70Ec Combi-Zaag

Mafell 972001 ERIKA70Ec Combi-Zaag

Now a total of 5 years warranty on Mafell Erika 70 Machines(*)

(*) Now a total of 5 years warranty on machines after registration of your machine, using the enclosed warranty form.

Features Combi-Saw ERIKA 70 Ec

• The ERIKA from Mafell was the first combi-saw machine in the world.
• Since then the ERIKA has become a household name.
• After almost 40 years of experience, the new generation of the ERIKA offers everything you would expect as a user of a modern combi saw.
• With the integrated Quickstand, the ERIKA stands on 4 stable aluminium legs in just a few seconds.
• Protective rubber caps on the foot also prevent slipping or vibrating.
• The unique dust channel bundles the sawdust and discharges it optimally.
• Thanks to this new development, the extractor is even more effective.
• Result: cleaner work in a cleaner workplace!
• The operation of the ERIKA leaves nothing to be desired.
• The clearly arranged controls are logically positioned at the front of the machine, wherever you are during the work, nothing suddenly disappears.
• Compare the ERIKA!
• The E-control and the original MAFELL saw blade enable you to cut not only wood but also other materials such as plastics or aluminium profiles.
• Further advantages of the ERIKA 70: extremely stable blade profile, mitre range from -3° to 48°, retractable spacer wedge and a max. cutting length of 340 mm.

Benefits

• New dust channel optimises the extraction - for even less dust at work.
• Lightest combi saw in its class - for quick and effortless transport.
• Adjustable speed - for machining wood, plastics or aluminium profiles.
• The no-load switch prevents uncontrolled start-up of the machine after a power failure.

Applications

• Trimming and rip-cutting (longitudinal saws)
• Table saw function
• Mitre saws up to 48
• Materials such as: solid wood, panel materials, parquet and laminate, aluminum profiles, plastic

Technical data ERIKA 70 E

• Zaaghoogte - 1 - 72 mm
• Cutting height at 45° - 1 - 49 mm
• Mitre range -3 - 48 °
• Cutting length 340 mm
• Saw table dimensions 525 x 818 mm
• Working height without stand 415 mm
• Working height on stand 891 mm
• No load speed 2.050 - 4.300 1/min
• Power consumption 2250 W
• Exhaust connection Ø 58 mm
• Weight (incl. universal stop) 37.2 kg
• Cutting speed 24,2 - 50,7 m/s
• Universal motor 230 V / 50 Hz

Includes

• Combi-Zag Erika 70 E Order No. 972001

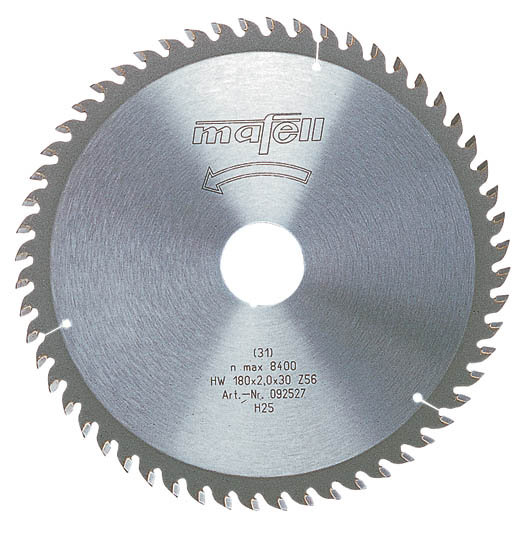

• 1 saw blade HM 190 x 1.2/2.0 x 30 mm, Z 36, WZ, for universal use; Order-No.: 092460
• 1 Universal stop with stop ruler; Order No. 201611
• 1 Push stick; Order no. 034901
• 1 Hexagonal Screwdriver 6 mm; Order No. 093081
• 1 Extraction set with 2 connections; Order No. 093639
• 1 Clamp; Order no. No. 038294
• 1 Quickstand
• 1 Connection cable 4 m
