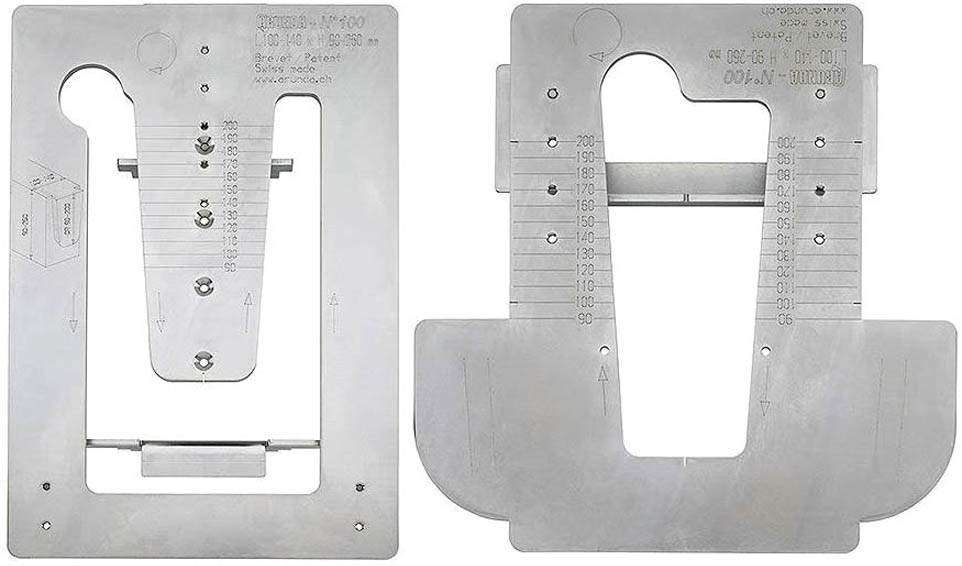

Mafell 91A711 Arunda 50B Midi Milling templates set for right angles

Mafell Arunda 91A711 50B Midi Milling templates set for right angles

Features

• With the Arunda system you can make dovetail joints for connecting beams by hand
• What you need is an Arunda routing template for the pin, the corresponding Arunda routing template for the hole and the Mafell router LO 65 with the Arunda accessories
• There are four sizes of routing templates
• With one size of milling template, you can edit a certain range of beam widths and heights
• You choose the size that fits the range of beam dimensions you are working with
• The larger the beam dimensions, the greater the load-bearing capacity of the joint
• "B" series with fixed 90° stops
• For all standard rectangular (or bevelled) joints

Benefits

• Speed: 8 to 18 connections per hour (pin hole)
• Simple: Very simple installation only from the top
• You do not need to move the beams sideways apart
• Accuracy: Double cone connection: self-locking with optimum fit
• Freedom: Straight or angled connection to supporting beams or trusses
• Versatility: Applicable for wood widths from 40 to 300 mm
• Save time: With one routing depth adjustment, you can rout both the pin and the hole
• Quality: High quality wood-in-wood connections between beams
• Load capacity: joint with permissible load of up to 2100 kg (21 kN)
• Dexterity: Can be used in the workshop as well as on the construction site
• For new buildings and for renovations
• Efficiency: Instead of buying metal connecting parts for each connection time after time, you buy the Arunda system once

Specifications

• For pegs from wood widths of 45 to 100 mm
• Timber height: 90 to 330 mm
• Cross section: min. 40 x 90 mm max. 100 x 330 mm

Includes

• 1 set of templates
• 1 houten box
