Mafell 917614 MT55CC MaxiMAX Circular saw in T-MAX with guide rail F160

Mafell MT55CC MaxiMAX Circular saw in T-MAX with guide rail F160 917614

Description

• The idea of developing a new plunge-cut saw is not new in itself. The novel aspect of this development, however, was the origination of a unique precision product from a set of especially designed machine components
• The MT 55 cc is a jack of all trades. It can execute plunge, parting, bevel and angled cuts with supreme precision and without any tearing
• The scoring function is quickly activated in a single movement. The MT 55 cc then cuts visible edges as cleanly as a stationary machine, even if the splinter guard is worn
• Continuously variable speed for a variety of materials and sawblades
• The cutting depth range has now been extended to 57 mm (2 1/4 in.). Thanks to the innovative tilting system, the options afforded for bevel cuts are practically unlimited as well

Features

• Facility for extremely fine adjustment of the cutting depth setting, e.g. when working with a resharpened blade or with Fermacell
• The closed saw blade cover and the slide bar at the saw-cut ensure a very low dust formation
• The MT 55 cc is equipped with a new CUprex-Compact motor for significantly elevated speeds and ample power in reserve
• The cutting depth can be set with millimeter precision. With or without a rail – simply turn the pointer to show the exact cutting depth
• For bevel cuts, the angle setting is fixed in two locations with half a turn of a single locking screw

Specifications

• Nominal power input : 1400 W
• Universal motor : 230 V / 50 Hz
• Tilt range : -49 °
• Nominal No. of strokes – no load : 3600-6250 1/min

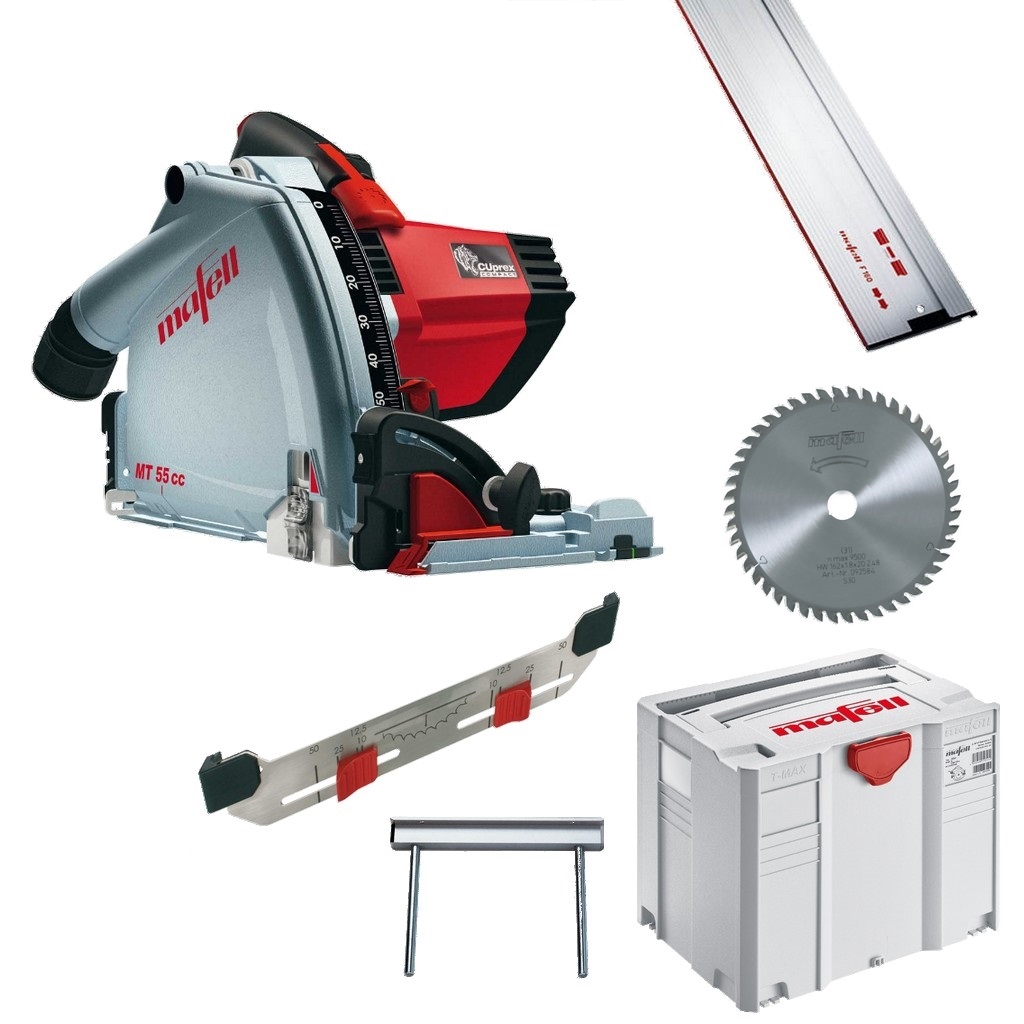

Includes

• TCT sawblade 162 x 1.2/1.8 x 20 mm, 48 alternating teeth, for universal use with board materials (092584)
• Guide rail F 160, 1,6 m (204365)
• Position indicator MT-PA (205398)
• Parallel guide fence (203214)
• Mains cable 4 m (13.1 ft) (087323)
• T-MAX storage case 4
