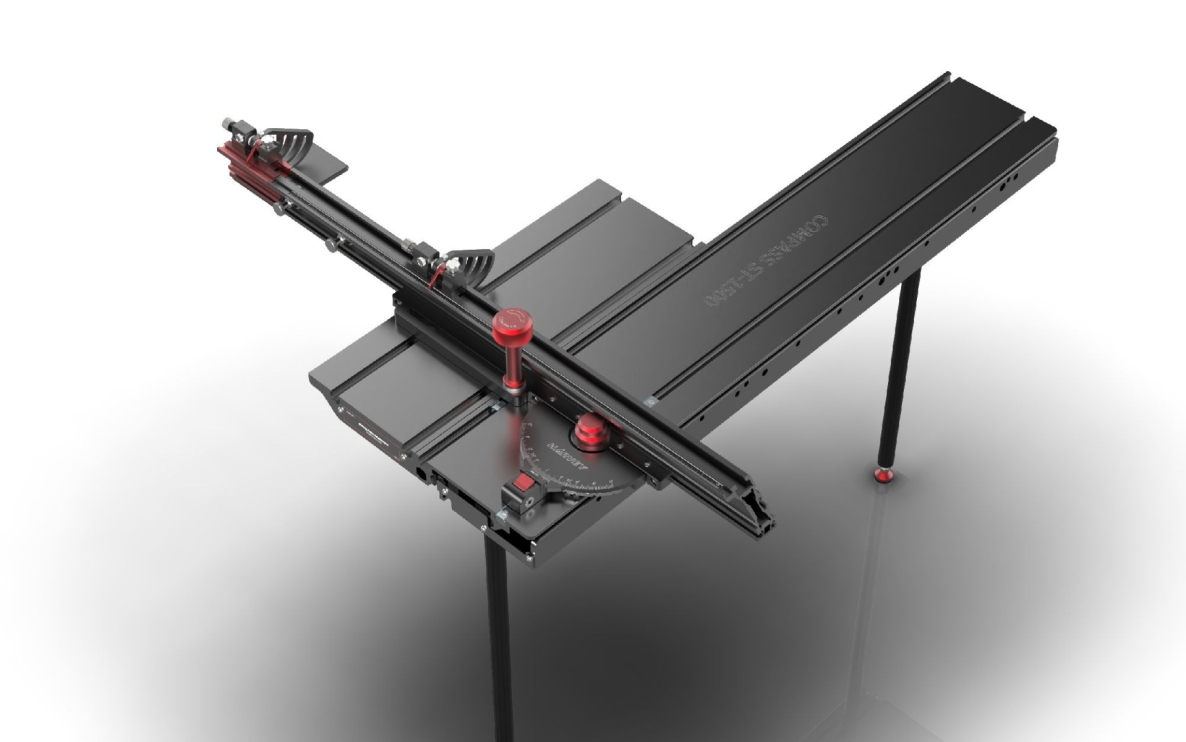

Metal Works 790034939 ATZS15 Harvey universal sliding table up to 1540 mm

Metal Works ATZS15 Harvey Universal sliding table up to 1540 mm

Professional and universal sliding table for table saws.

Description

• To extend the cutting capacity to 1540 mm
• Angle stop +60° / -60°, is fixed in a T-slot, can be fixed at any angle
• With positive stops at -60°, -45°, -22.5°, 0°, +22.5°, +45°, +60°
• Industrial conductor
• The index pen with smart trigger is released by pressing the front button with one finger
• Cross-sectional capacity up to 1,240 mm
• Telescopic guide with an adjustable stop
• Easy to install
• Flip stop with fine adjustment and one-hand operation, all graduations are laser marked.
• Fully stainless, from stainless steel, anodized aluminum, and brass
• Accurate results
• Smooth guidance through precise finishing of the guide system

Suitable for

• Most saw tables
• TZ series MW-Tech Harvey table saws

Technical data

• Sliding table dimensions mm 228.5 x 1200
• Extension table dimensions mm 228.5 x 600
• Max. table displacement mm 1540
• Max cross section capacity mm 1240
• Guide extended to mm 1500
• Angle adjustment ° -60°~+60°
• Positive stops ° -60°,-45°,-22.5°,0°,+22.5°,+45°,+60°
• Resolution vernier ° 0.1
• Micro-adjustment accuracy mm 0.02
