Metal Works 722316557 WD66I Diesel Infrared Heater 20kW

MW-Tools WD66I Diesel Infrared Heater 20kW

Gas too expensive, heat on diesel in your workshop, garage, etc.

Special Features

• Suitable for heating rooms from 200 to 1200m³, depending on the insulation and ventilation of the room. The better the insulation value of the building elements (lower K-value), the larger the space you can heat.
• Minimum heatable volume of 200m³, at a K-value of 2.5,: in case the building is not insulated, with single glazing, full stone walls, roof with old corrugated sheets, or for rooms where gates regularly open.
• Maximum heatable volume of 1200m³, at a K-value of 0.5: in case the building is well insulated according to recent building standards
• Suitable for professional and temporary use in areas with adequate ventilation.
• Easy to move thanks to 4 swivel casters
• Comprehensive LCD display showing: current temperature, thermostat temperature, timer setting and display lock
• Alarm indicators for: ignition fault, low fuel level, overheating and rollover protection
• Limited construction depth of 305 mm, takes up little space against a wall
• Suitable for room with adequate ventilation.
• Overheating protection
• 1.5 m long power cable with plug
• 4 freely rotatable wheels 65 mm
• Protection class IP24

Advantages

• The infrared heater with large radiant area releases pleasant heat evenly to the surrounding space. The large surface area of the heater provides even and gentle heat radiation at the right height for both standing and sitting work
• Large tank of 70 liters, for an extremely high autonomy of 40 h (5 to 6 working days)
• Low Noise. With only 48 decibels, this heater operates almost silently
• Low odor. Flue gases are burned completely.
• No air movement. The heat is dispersed thanks to the glowing steel tubes, there is no fan and therefore no disturbing wind or noise pollution as with classic hot air blowers
• High-quality Korean heater technology provides a complete combustion, and for the cleanest possible emissions
• Environmentally friendly: 99.9% of the fuel is burned

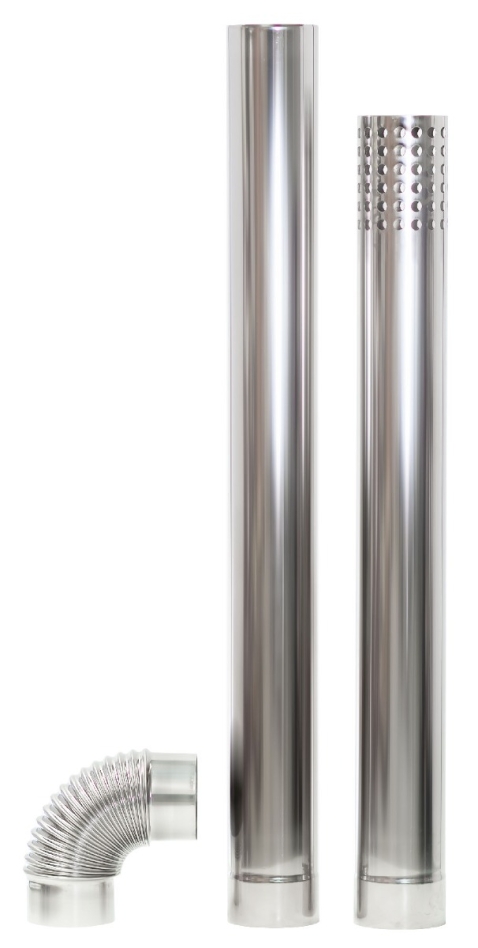

• Optional flue gas outlet exhausts gases and smoke, reduces indoor odors, while recovering additional heat from the exhaust gases
• Operates on both fuel oil and diesel
• Danfoss spray head of high quality, commonly available in the trade
• Built-in thermostat 0-40°C on the digital control panel
• Compact design. With its limited construction depth of only 305 mm, this heater stands compactly against a wall without blocking passage

Technical data

• Heat output kW/h 20
• Heat type Radiant heat
• Energy source Diesel / Petroleum / Fuel oil
• Thermostat Property
• Fuel tank capacity l 70
• Fuel consumption l/h 1.88
• Heatable space m³ 200-1200
• Voltage V 230
• Autonomy u 40
• Cable 1.5
• Mobile Yes
• Frequency Hz 50
• Noise level dB(A) 48
• Power consumption kW 0.08
• Weight kg 65.00
• Dimensions (l x w x h) mm 1150x305x1,115

Scope of delivery

• On Pallet
• Supplied without flue outlet!

Attention!!!

Ventilation is necessary with this heater. Ensure adequate ventilation to prevent oxygen deficiency or poisoning from the combustion gases and carbon monixide.
Do not use the heater in enclosed spaces and homes. It is recommended to preventively install a carbon monoxide sensor in the room where you use the heater.
