Metal Works 724562887 PKB1006 Parking ramp 3.6T 230V 2 vehicles length 4700mm

Metal Works PKB1006 Parking Bridge 3.6T 230V 2 vehicles length 4700mm

Special Features

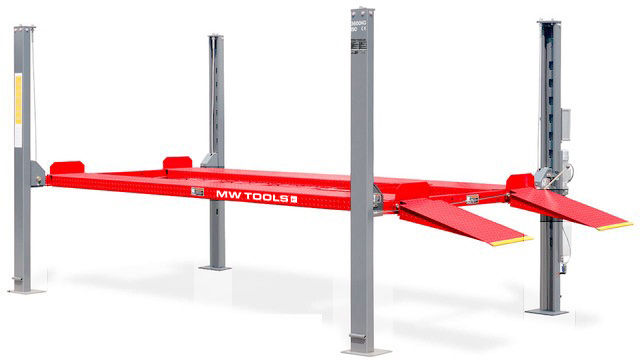

• Hydraulic Parking Bridge 4-Column with capacity 3.6 tons, for 2 vehicles.
• Long version with driving plates of 4700 mm
• Suitable for parking vintage cars, cars, motorcycles, garden machinery, trailers, boats, ...
• Optional cover plates transform the bridge into additional storage space.
• Electric lifting and lowering, manual release.
• Manual 1-point release for lowering the elevator
• The electrical cabinet and hydraulic pump are built on the front right column. Thanks to the mounting bracket provided, you can choose to mount the pump either on the side or on the front of the right column, depending on the space available in the garage
• Driving plates with safety plates on front and rear, the rear safety plate is manually retracted and extended
• Electric cabinet on low safety voltage 24V
• 4 columns for optimal stability and load distribution on the ground.
• Suitable for vehicles with asymmetrical weight distribution
• Built-in tooth bar in each column for permanent protection
• Powder-coated finish with high durability

Advantages

• Parking ramp in long version, suitable for larger vehicles such as SUVs, mobile homes, boats, etc.
• Model for 2 vehicles
• Very compact ground area
• Limited height, suitable for garages with low ceilings. Column height of only 2.5 meters
• Removable ramps reduce the floor area of the bridge, and allow the bridge to be positioned flush against an entry gate
• The ramps can be placed at the front and back of the bridge, entry and exit is possible from both sides
• Supplied with 3 plastic oil collection bins, they protect the lower trolley and the garage floor from leakage. The bins can be placed between the driving plates at the desired position
• Safe storage: the built-in toothed bar in each column ensures immediate and permanent securing of the load, even during long-term vehicle storage
• Low requirements for substrate strength: a concrete floor with thickness 100mm and strength C20/25 is sufficient
• 230V motor 2.2kw, suitable for any standard 230V grid

Technical data

• Lifting capacity: 3.6 tons
• Row length: 4700 mm
• Maximum vehicle width: 2490 mm (between columns)
• Minimum height of the driving plates: 130 mm
• Maximum height of the driving plates: 2200 mm
• Maximum available height under the driving plates: 2075 mm
• Power kW 2.2
• Voltage V 1X230V
• Capacity kg 3600
• Lifting duration s 70
• Required oil l 12
• Weight kg 865.00
• Dimensions (l x w x h) mm 5756x2990 x2476

Scope of delivery

• 2 ramps , length: 940mm, width 495mm, removable
• 3 oil sumps 940x600 mm, movable
• 2 safety plates in front and back of the driving plates
• Motor with 3-meter power cable, without plug

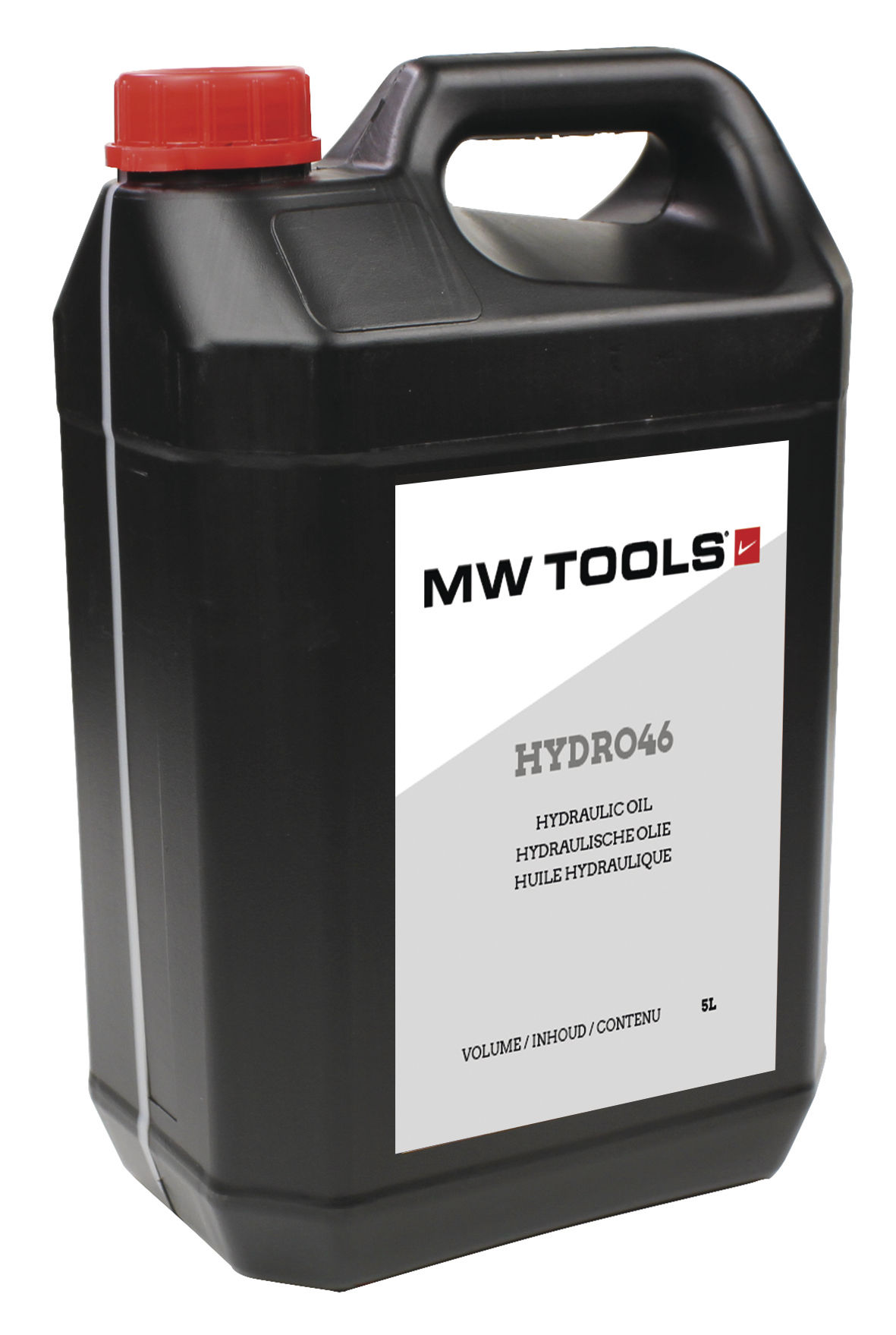

• Hydraulic oil. The required amount of oil is 12 liters (art. 790030046) and Set of rotating front wheels (art. 724563123) NOT included!

Optional

• Set of 8 steel cover plates, which can be used to cover the space between the driving plates. (Art. 724562882) With this the bridge can be closed, so that it can safely serve as storage space for other goods, boxes etc.
• Mobile jack 1.5 tons (art. 724562881) The jack is mounted between the driving plates, and has its application in minor maintenance and long-term support of the axle for relieving tires

Notice! For this item, in addition to already calculated shipping costs, additional handling fees will be charged by the carrier. This may vary by region or country in amount. You can request the handling fee in advance through our sales department. Please provide a forklift upon delivery.
