Metal Works 724562895 HB250M Lift double column wide 5.5T 1x230V

Metal Works HB250M Lift double column wide 5.5T 1x230V

Special Features

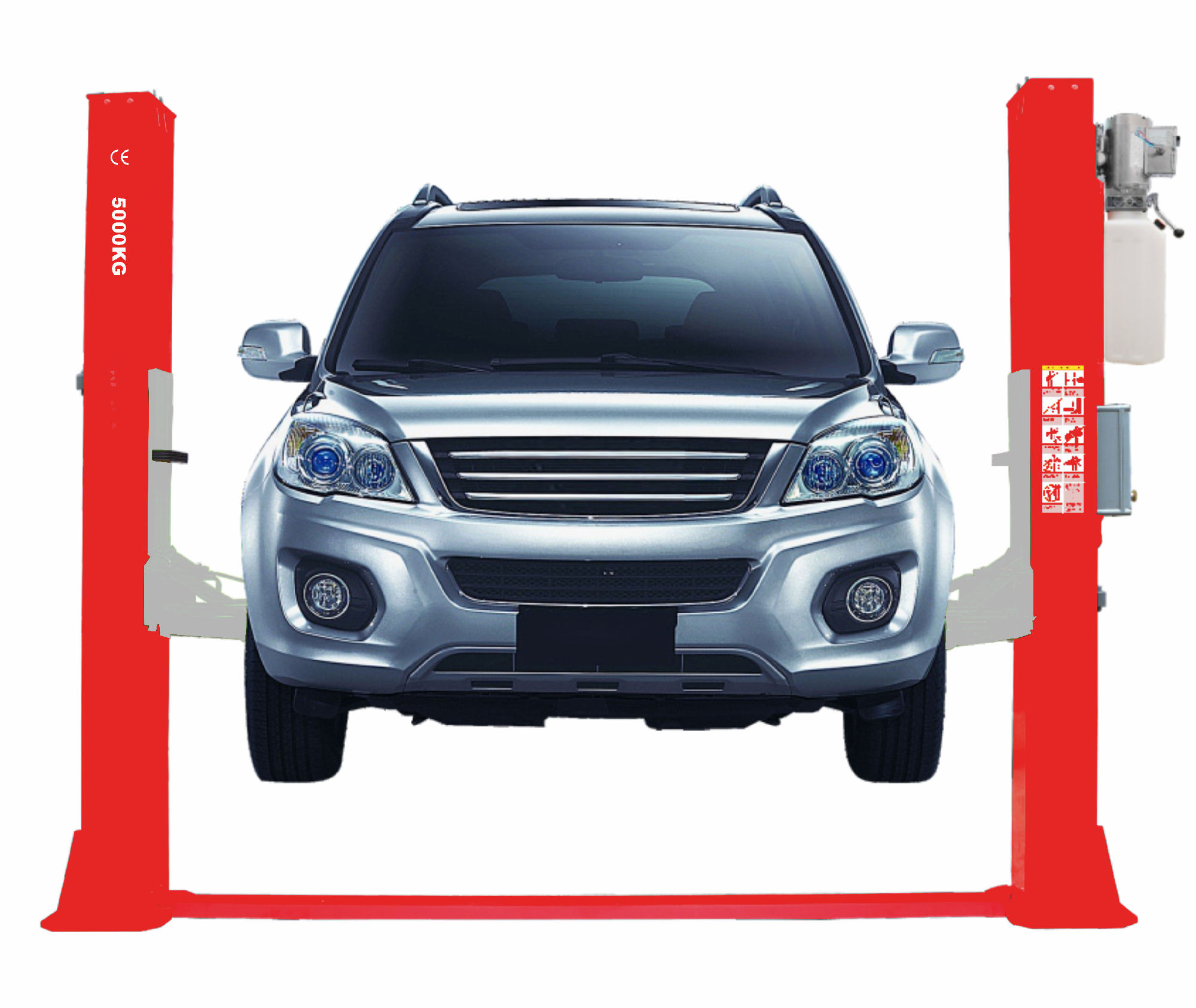

• Hydraulic 2-column lifting bridge 5.5 tons with lower link.
• This wide and heavy bridge gives smooth passage to large vehicles such as vans, SUVs, all-terrain vehicles, minibuses, etc.
• Because the bridge works with an under-connection, there is no limit to the height of d vehicles.
• Model on 1 x 230 V
• Lifting capacity 5.5 tons
• Fully electric control of lifting and lowering
• Suitable for wide vehicles: width up to 3022 mm
• Suitable for tall vehicles: there is no upper connection on this bridge
• 3-fold telescopic lifting arms with a large lifting range. Suitable for lifting both small and large vehicles with large distance between jack points such as mobile homes, vans, light trucks, etc.

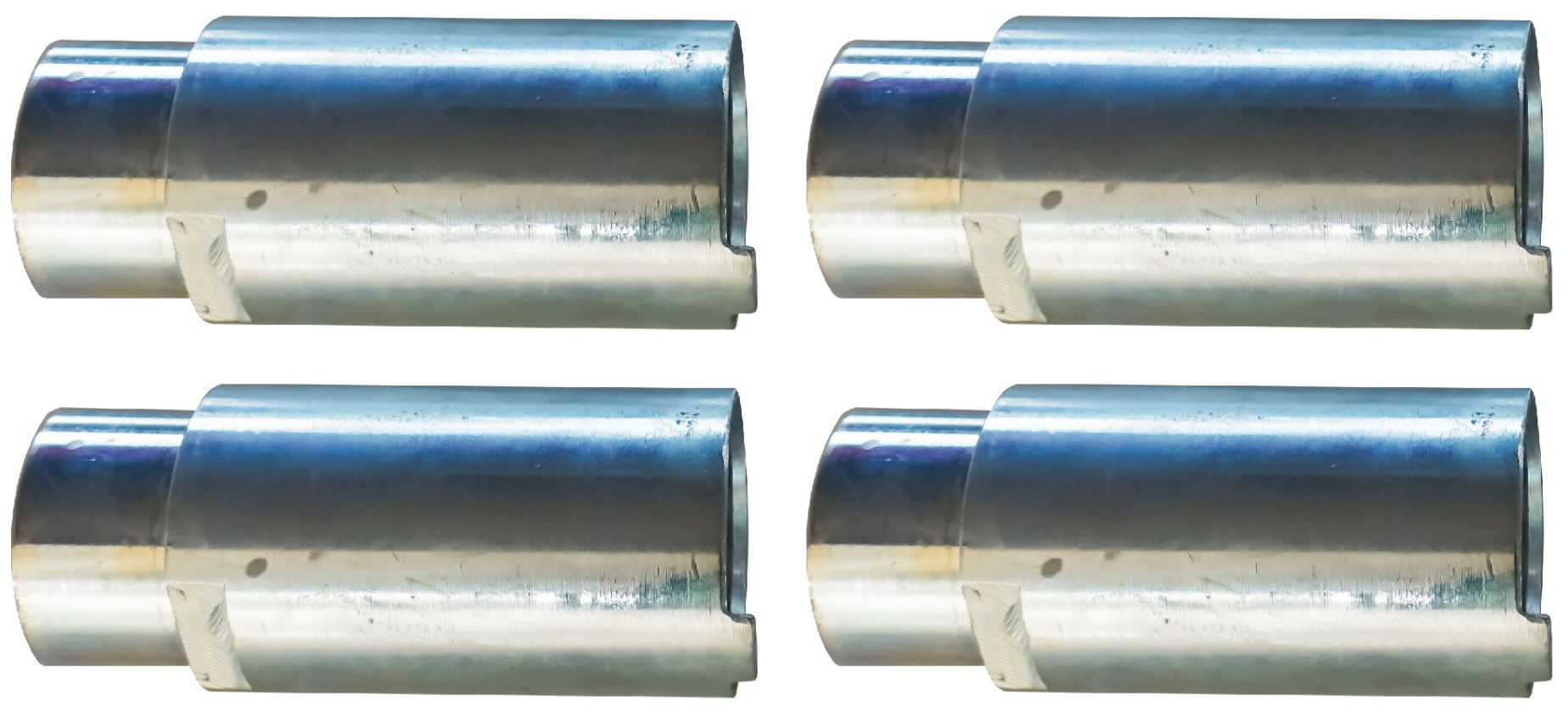

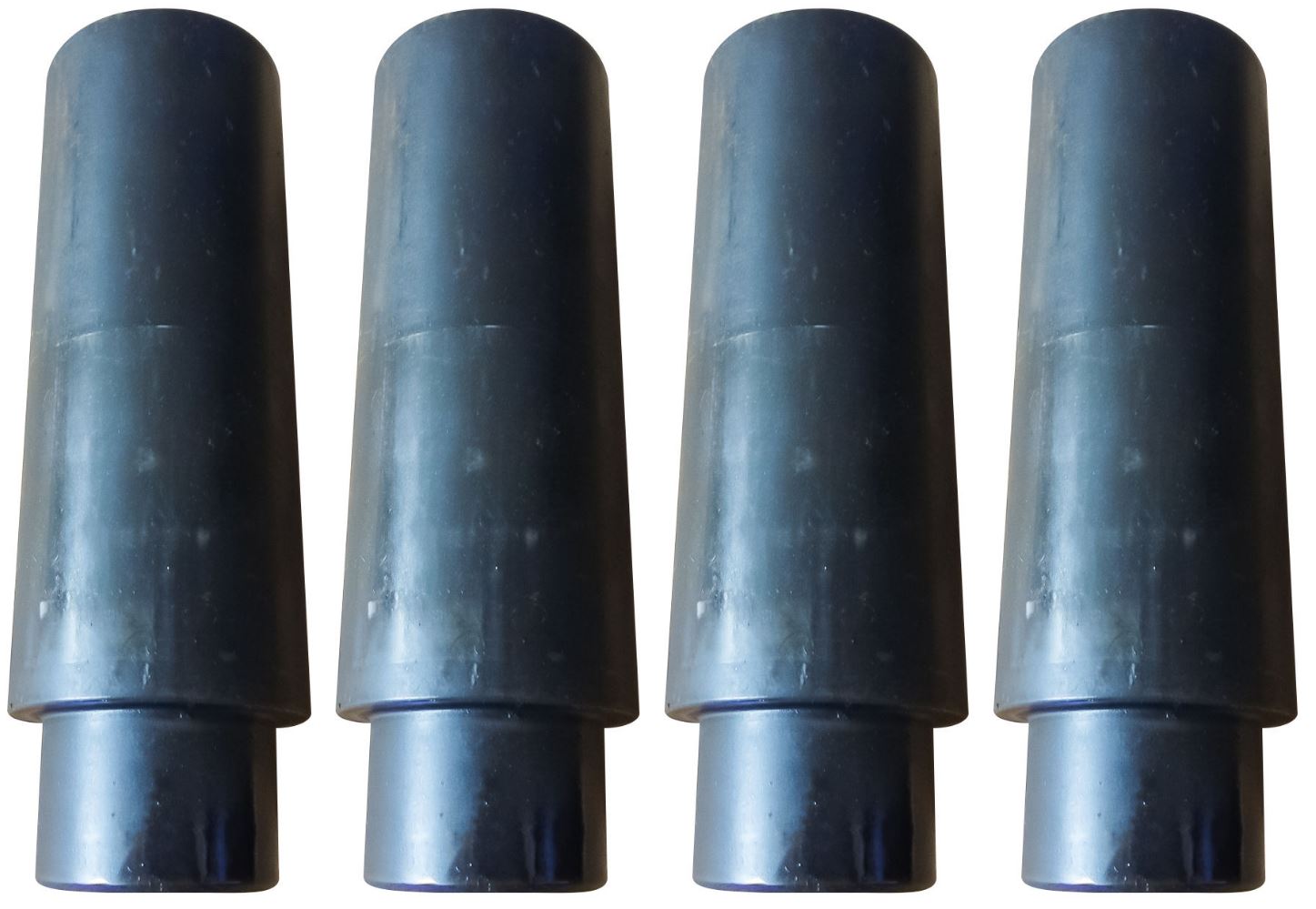

• With the optional 70 and 100mm adaptors, the rubber lifting points can be raised. This is especially interesting for large mechanics or special tools
• Lifting arms with height adjustable rubber caps 100 - 160 mm
• Minimum height 100 mm, also suitable for cars with low suspension
• Rubber caps protect the chassis and reduce vibrations
• Mechanical fall protection is automatically activated during lifting
• Electric release button for lowering.
• 2 high-quality hydraulic cylinders for smooth lifting and lowering
• Equalization of the two arms by means of a steel cable
• Foot protection on lift arms prevents injury when lowering the elevator
• End of line switch

Technical data

• Capacity t 4
• Power kW 2.2
• Voltage V 230
• Maximum height mm 1960
• Minimum height mm 100
• Maximum width vehicle mm 2780
• Capacity kg 4000
• Lifting duration s 50
• Duration bags s 50
• Weight kg 600.00
• Dimensions (l x w x h) mm 3365x700 x3740

Scope of delivery

• Motor with hydraulic unit - pump with reservoir
• Electrical cabinet IP54
• Rubber door protections on both columns
• CE certificate and manual
• Hydraulic oil. The required amount of oil is 10 liters (art. 790030046) NOT included!
