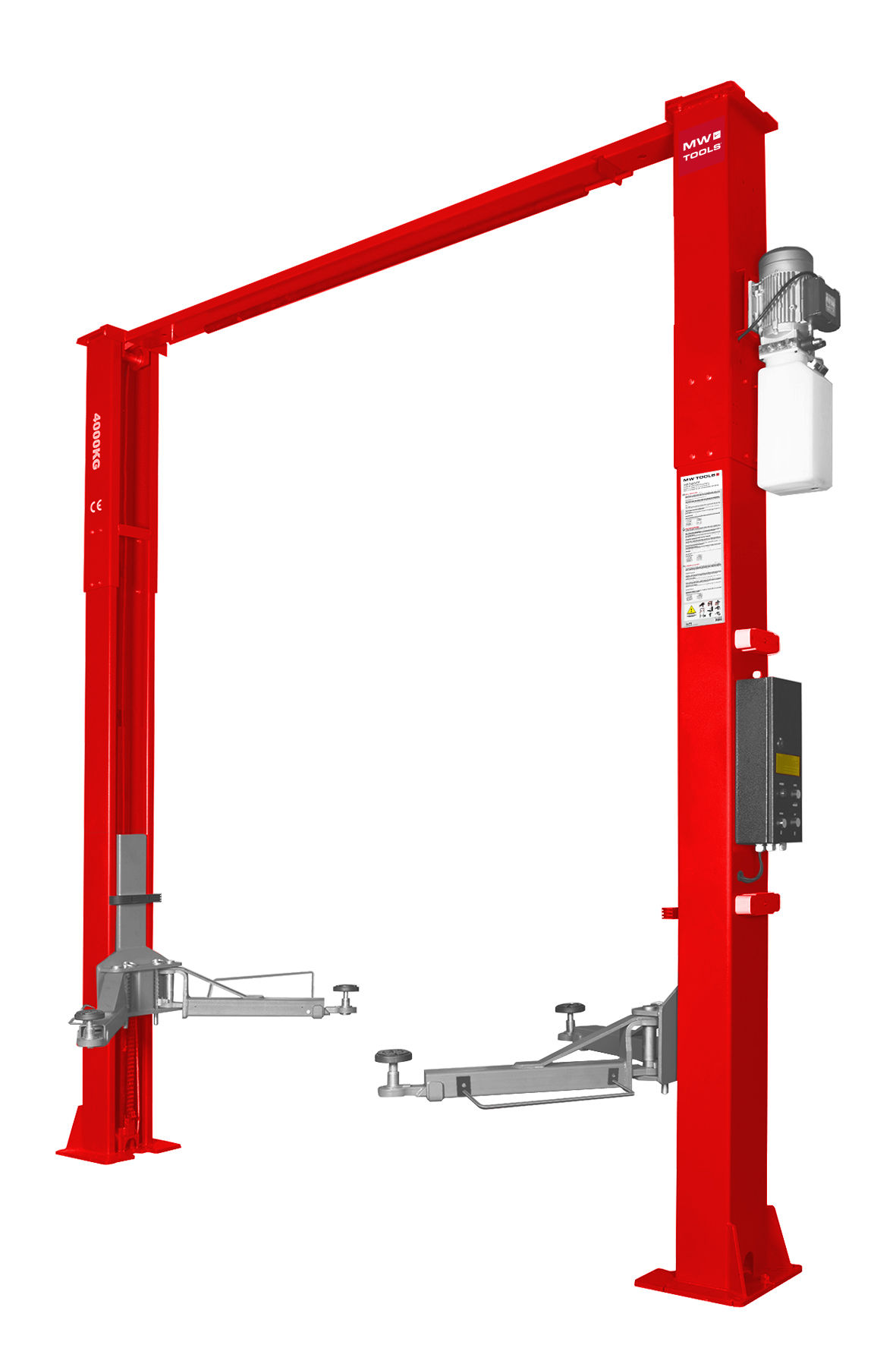

Metal Works 724563128 HB240CF 2 column lifting bridge 4 t with top connection

Metal Works HB240CF 2-column lifting bridge 4 t with top connection

Special Features

• 2-column lifting bridge 4 tons with top connection.
• The floor under the bridge remains completely free for working with oil discharge units, measuring devices, welding equipment, etc.
• Model 3 x 400 V
• Stable top connection ensures rigid bridge construction
• Mechanical limit switch upon reaching the highest point
• Lifting stops immediately upon touching the safety on the top link
• 2 symmetrical telescopic arms, also suitable for heavier and longer vehicles
• Electric control with up/down button
• Mechanical fall protection with automatic release during lowering
• Adjustable rubber supports with minimum height of 90 mm
• Rubber caps protect the chassis and reduce vibrations
• Industrial motor

Technical data

• Capacity t 4
• Power kW 2.2
• Voltage V 3x400
• Maximum height mm 1960
• Minimum height mm 100
• Maximum width vehicle mm 2780
• Capacity kg 4000
• Lifting duration s 50
• Duration bags s 50
• Weight kg 600.00
• Dimensions (l x w x h) mm 3365x700 x3740

Scope of delivery

• Motor with hydraulic unit - pump with reservoir
• Electrical cabinet IP54
• Rubber door protections on both columns
• CE certificate and manual
• Columns designed in 2 parts, for easy assembly
• Foot protection around the lifting arms
• Hydraulic oil. The required amount of oil is 10 liters (art. 790030046) NOT included!

Notice! For this item, there are additional handling fees charged by the carrier in addition to already calculated shipping costs. This may vary by region or country in amount. You can request the handling fee in advance through our sales department. Please provide a forklift upon delivery.
