Metal Works 724563257 HB435M 4-column hydraulic lift 3.5T 230V

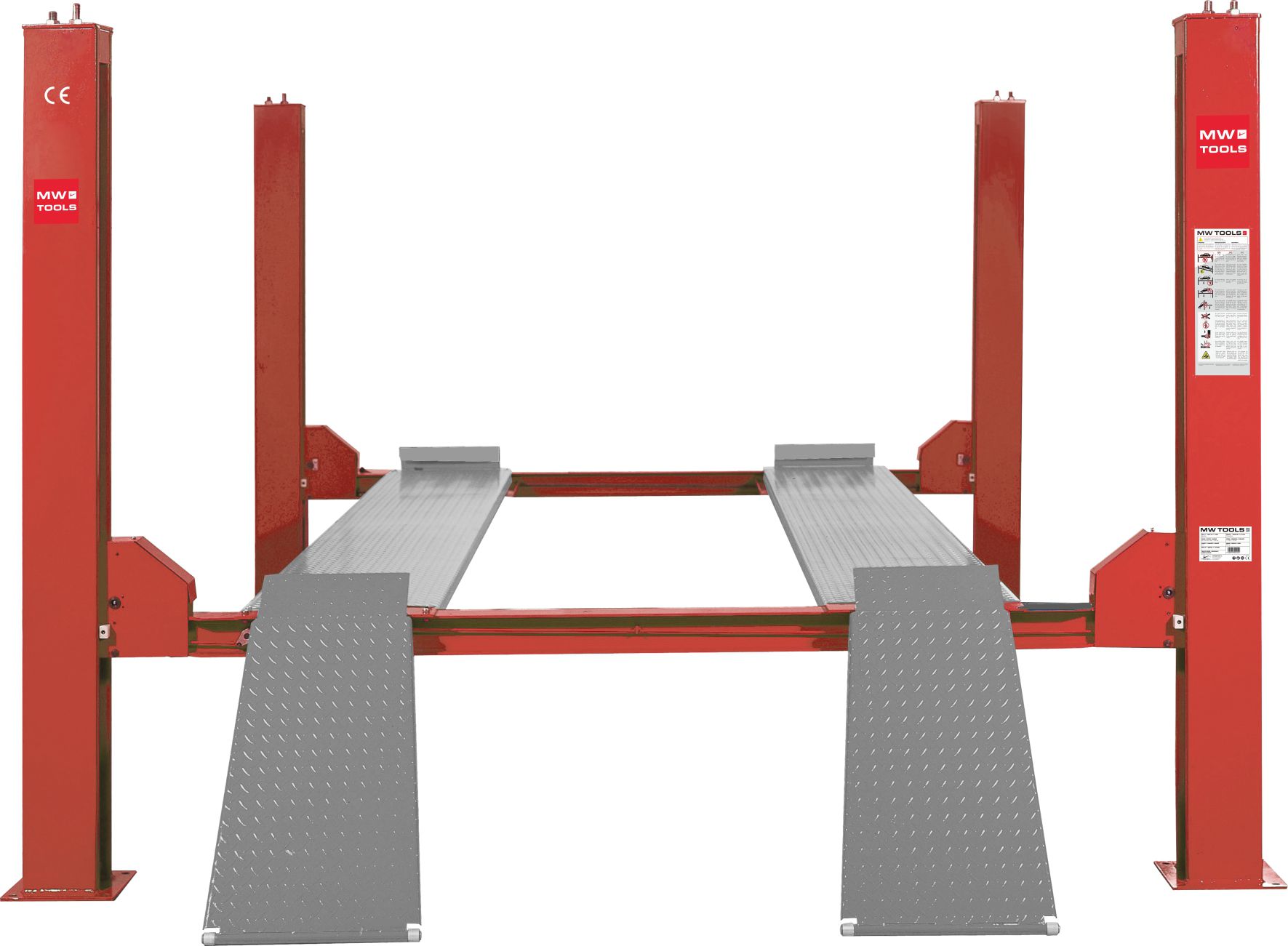

Metal Works HB435M 4-column hydraulic lift 3.5T 230V

Special Features

• Hydraulic 4-column lifting bridge 3.5 tons.
• Suitable for working freely around the vehicle without interference from columns when opening doors.
• Travelling plates adjustable at 3 intervals when mounted, so that the free space between them is always as large as possible
• 4 columns for optimal stability and load distribution
• Very suitable for vehicles with asymmetrical weight distribution
• Optimal door clearance
• Supplied with 2 long, hinged ramps with running wheels
• Built-in tooth bar in each column for permanent protection
• Fast lifting and lowering time
• CE compliant

Technical data

• Capacity t 3.5
• Power kW 2.2
• Voltage V 230
• Load surface dimensions mm 4250 x 530
• Max height mm 1700
• Minimum height mm 170
• Maximum width vehicle mm 2675
• Capacity kg 3500
• Lifting duration s 30
• Duration bags s 30
• Required oil l 12
• Weight kg 882.00
• Dimensions (l x w x h) mm 5100x3140 x2120

Scope of delivery

• 4 columns
• 2 long hinged ramps
• Hydraulic oil. The required amount of oil is 10 liters (art. 790030046) NOT included!

Notice! For this item, in addition to already calculated shipping costs, additional handling fees will be charged by the carrier. This may vary by region or country in amount. You can request the handling fee in advance through our sales department. Please provide a forklift at the time of delivery. A reinforced concrete foundation of at least 25 cm is required for safe assembly of the lift bridge.
