Metal Works 729840092 PTLK2-SET2000 Pack 2000kg manual: PTLK2 + HNRK2T + HNSJ2060

Metal Works PTLK2-Set2000 Pack Mobile Gantry Crane 2T

Features

• Mobile gantry crane 2 tons, with 2600mm width and 3760m height.
• This mobile crane is ideal for all kinds of lifting work in transport and logistics, assembly and assembly work in production companies and in areas where there is no fixed overhead crane available
• Model 2 Ton
• Height: Adjustable height 2560-3760mm. Free inside dimension is adjustable between 2400-3600mm high
• Width: 2380mm free interior dimension.
• Beam size 88x160mm
• Swivel casters with brake
• Stable and safe while being compact and lightly portable
• Reinforced upper beam and wheel bar with cross slats
• The height can be adjusted when unloaded, with a set of levers and safety bolts

Suitable chain hoists

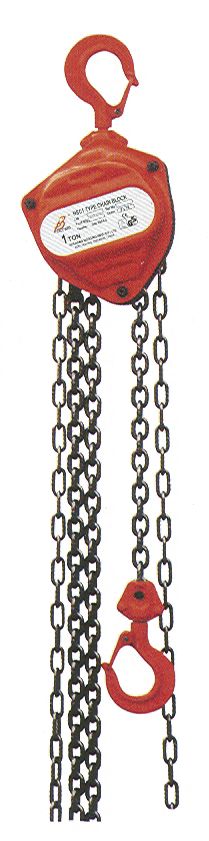

• Hand hoist 2000kg 6 meters with hook (758582060)
• Electric chain hoist 150kg 6 meters with hook 230V (758613105)

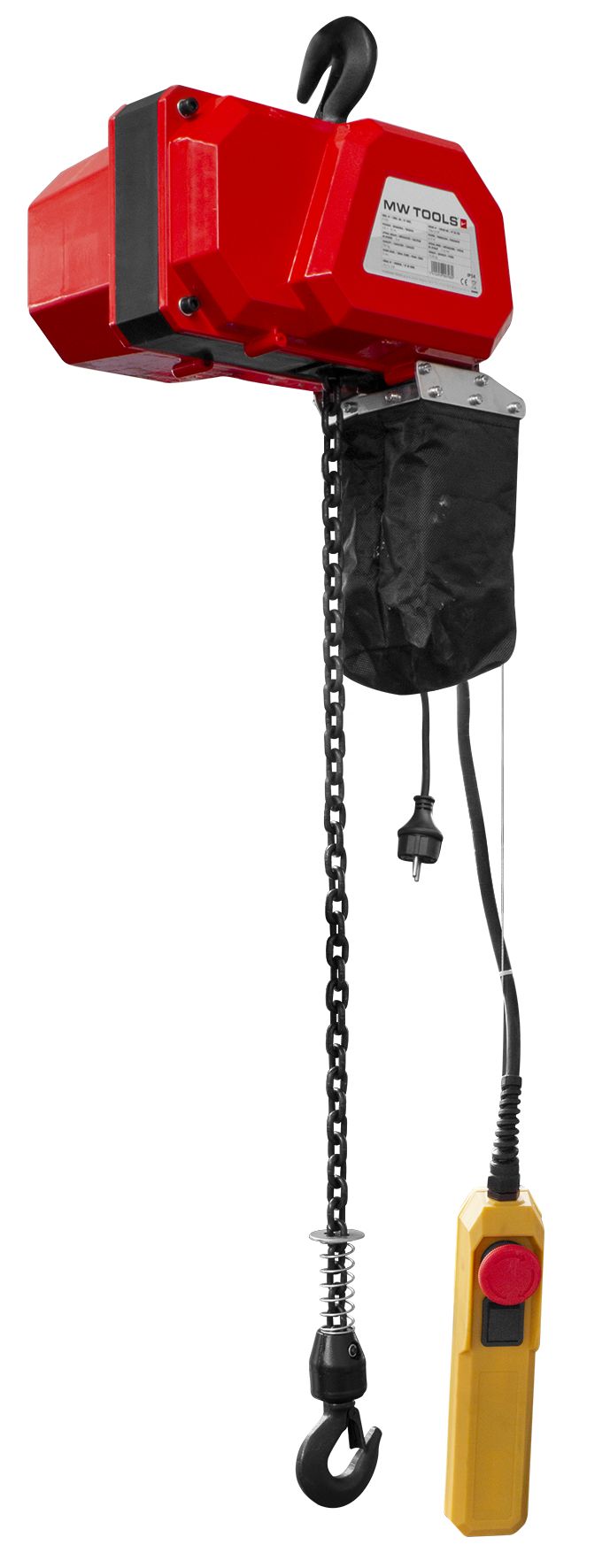

• Electric chain hoist 300kg 6 meters with hook 230V (758613107)
• Electric chain hoist 2000kg 6 meters with hook 230V (758613131)

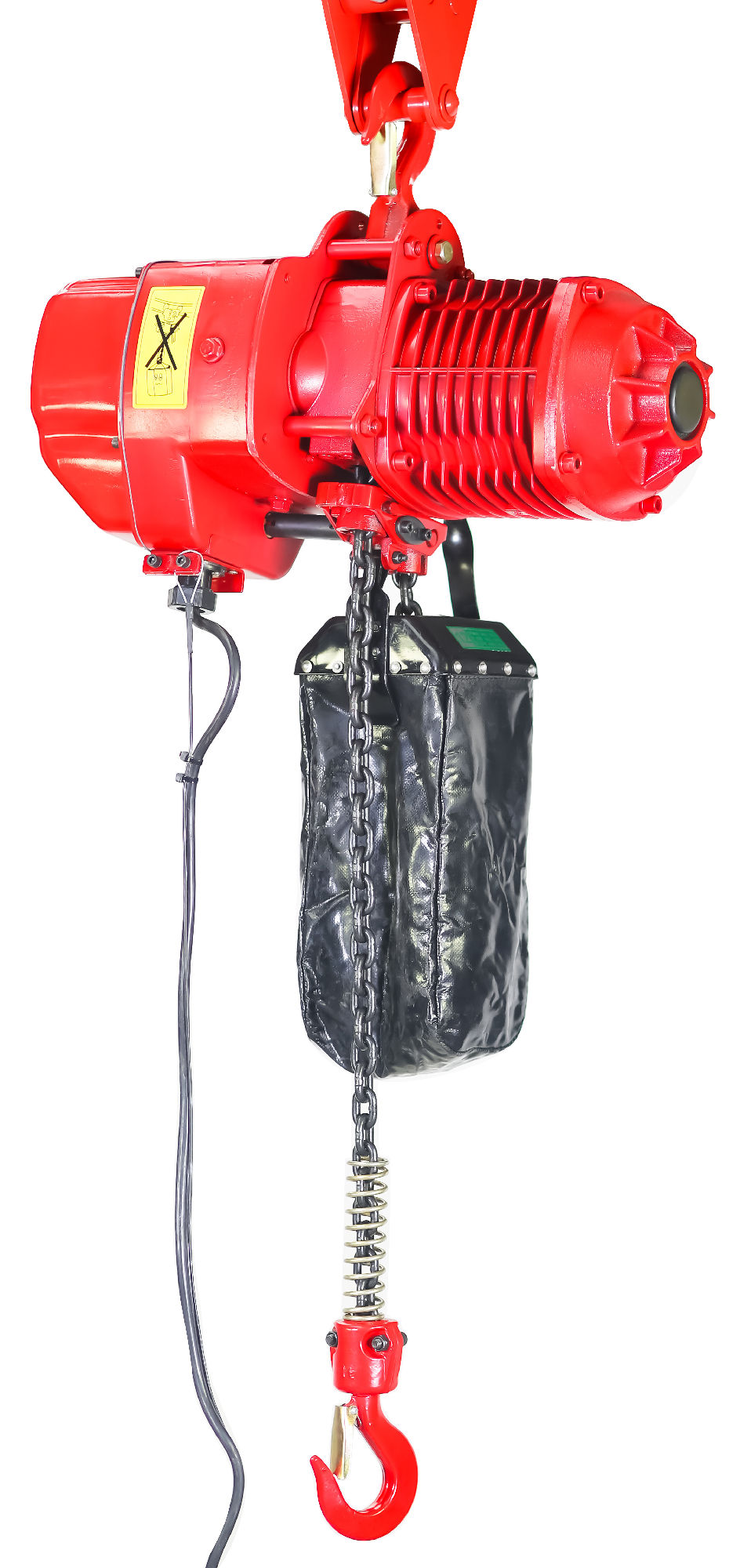

• Electric chain hoist 2000kg 6 meters with hook 3x400V, industrial (729840102)
• Electric chain hoist 2000kg 6 meters with trolley 3x400V, industrial (729840112)
• Chain hoists with hook can be attached to the gantry crane with a beam clamp (754751502

Suitable wire rope hoists

• Electric wire rope hoist 200kg 12 meters with trolley 230V (758613100 )

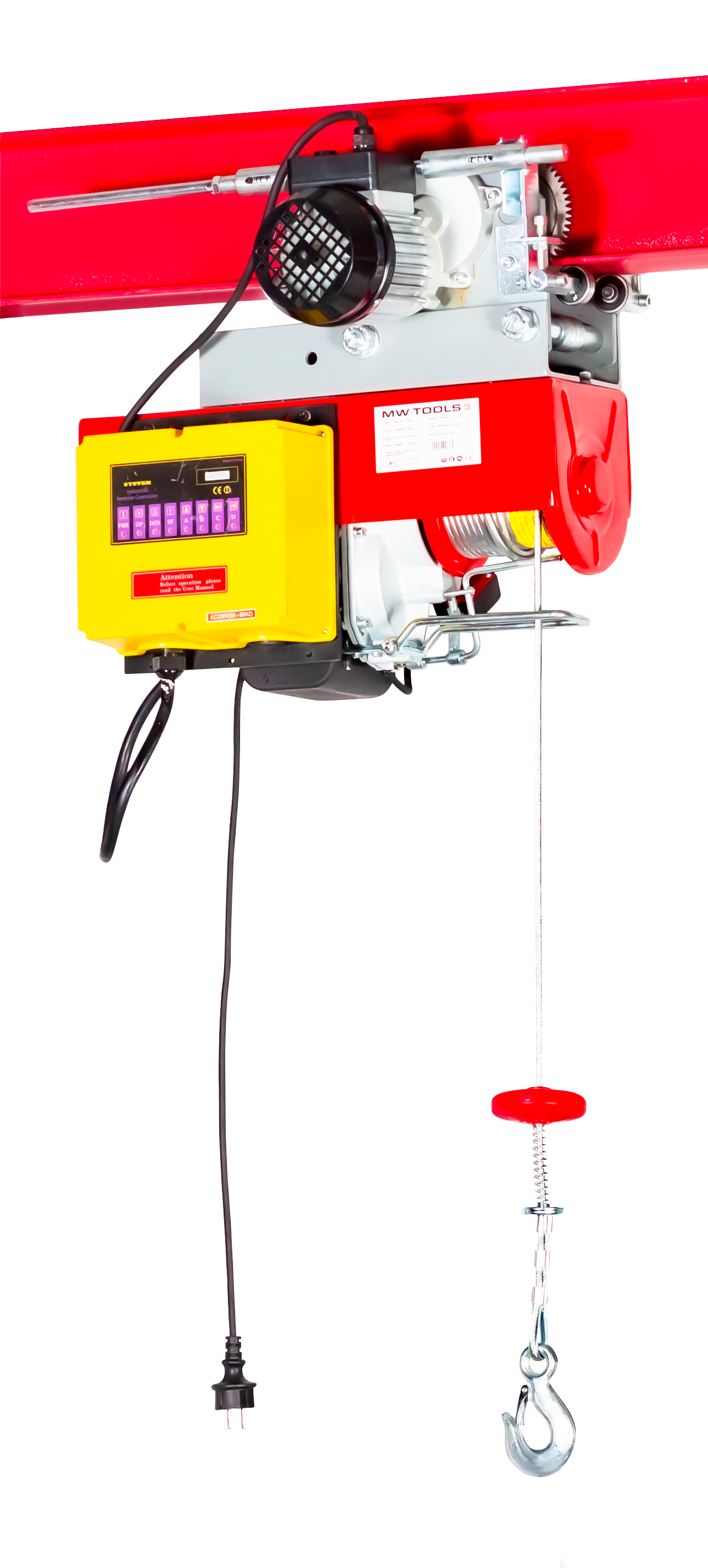

• Electric wire rope hoist 500kg 18 meters with trolley 230V (758613102)

Technical data

• Capacity t 2
• Height minimum mm 2400
• Height maximum mm 3600
• Width maximum mm 2380
• Beam size mm 88 x 160
• Net travel length trolley mm 1800
• Weight kg 152.00
• Dimensions (l x w x h) mm 2400x1200x0

Scope of delivery

• On pallet
• Gantry crane 2 ton PTLK2
• Trolley 2 tons
• Chain hoist kg HNSJ2060
• Note: Always choose lifting accessories with a capacity in accordance with that of the hoist used.
