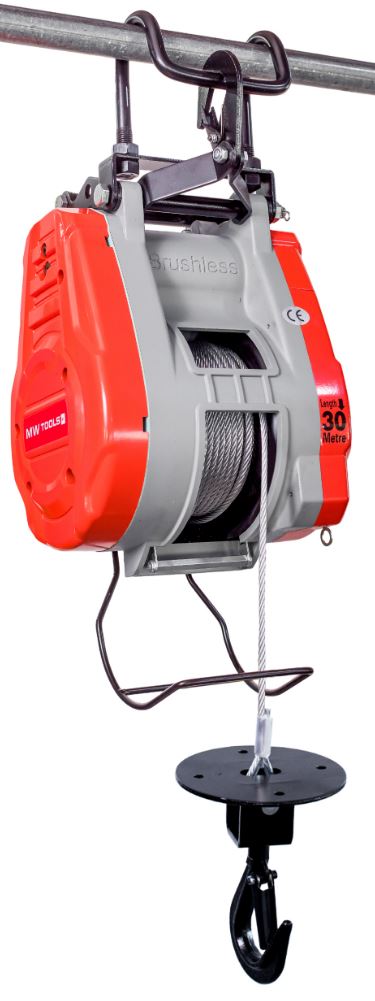

Metal Works 758613140 PHS34060 Electric wire rope hoist 340kg 60m wired control

Metal Works PHS34060 Electric wire rope hoist 340kg 60m wired control

Features

• Professional wire rope hoist 340kg with 60m cable, suitable for applications in production, piping, industry, warehousing, logistics, construction and renovation, etc.
• Capacity 340 kg
• Lifting height 60 meters
• Wired remote control with length 7 meters
• Buttons on the remote control: up/down button, variable speed button, emergency stop
• Steel hanging bracket with lock: easy, quick and safe hanging on axles, scaffolding, ceilings, etc.
• Industrial, copper-wound motor 2.4kW, withstands heat levels up to 200°C
• Energy-saving brushless motor with high power factor of 0.95 (cosinus fi)
• Motor with built-in overload switch
• Automatic braking in case of power failure or malfunction
• Engine tested for frequent starting (maximum 150 starts per hour)
• The motor stops automatically when reaching the highest position, and when reversing the rewind direction
• Dual braking system for direct and permanent braking
• 1. Mechanical brake discs in the gearbox consist of high friction material that require no maintenance
• 2. Electrical brake built into the circuit board
• Highly efficient gearbox capable of withstanding loads up to 3 times the maximum capacity of the hoist
• Galvanized industrial-grade steel cable with 3-fold safety factor
• 360° rotatable safety hook with 4-fold safety factor
• End position switches stop movement when reaching the highest and lowest position
• CNC milled machine housing with high dimensional stability for quiet and smooth operation, finished with a high-quality powder coating
• IP54 splashproof
• Noise level: 76 decibels

Trumps

• Wired remote control
• Variable speed from 6 -17 meters per minute. A rotary knob allows you to reduce the speed at the beginning and end of the movement. This increases personnel safety and prevents damage to the load.
• 50% high duty cycle, for intensive load
• High maximum speed of 17m/min
• Energy-saving, brushless motor with permanent magnet
• Electrical cables detach from the unit for easy transport
• Portable for 1 person: only 23 kg
• IP54 splash-proof

Technical data

• Capacity kg 340
• Voltage V 230
• Power kW 2.4
• Frequency Hz 50
• Lifting speed m/min 6-17
• Cable diameter mm 5
• Length of cable m 60
• Weight kg 23.00
• Dimensions (l x w x h) mm 270x215 x760

Scope of delivery

• In box
