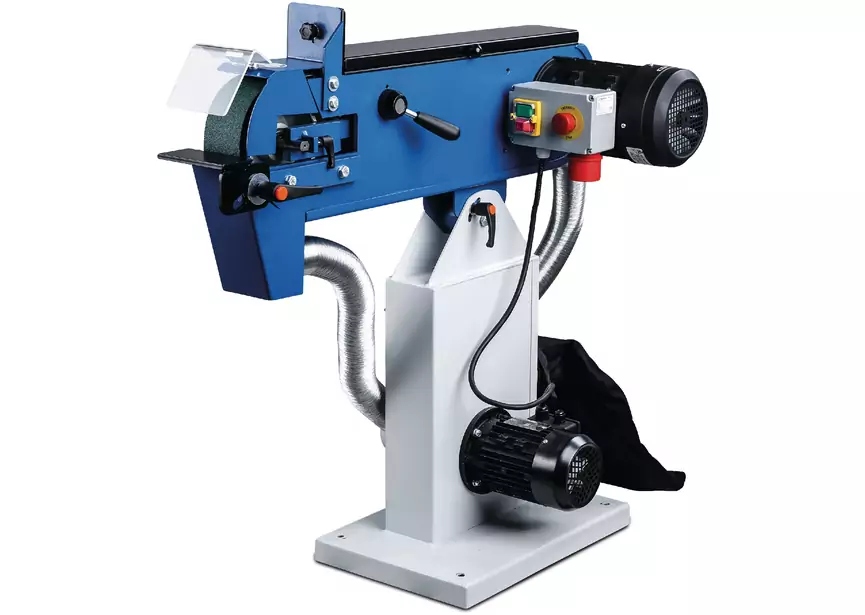

MetallKraft 713712076 MBSM75-20 AS Metal Belt Sander 3x400V with extraction

MetallKraft 713712076 MBSM75-20 AS Metal Belt Sander 3x400V with extraction

Special features

• Heavy duty belt sander with integrated extraction
• Suitable for grinding metals
• Sanding belt size: 75x2000 mm
• Powerful motor: 3 kW, 3x400V
• Vibration-free running thanks to rubber-coated pressure wheel
• Adjustable grinding surface from 10° to 30°
• Powerful 400V motor
• Integrated extraction with dust bag (0.37 kW, 540 m³/h)
• High belt speed of 30 m/sec
• Large horizontal surface grinding length
• Made in Europe

Technical data

• Voltage: 3 x 400 V
• Power: 3 kW
• Sanding belt dimensions: 75 x 2000 mm
• Abrasive belt speed: 30 m/s
• Pressure wheel dimensions: 200 mm
• Adjustable grinding angle: 10° - 30°
• Extraction tube (outer diameter): 60 mm
• Sound power level (LwA): 80 dB(A)
• Flow rate: 540 m³/h
• Width: 995 mm
• Height: 1025 mm
• Length: 490 mm

Scope of delivery

• 2 extraction openings
• 1 plexi protective cover
• 1 sanding belt grain 60
• Dust bag
• Dutch manual
• Inscriptions, CE mark and CE certificate according to Machinery Directive 2006/42/CE and EMC Directive 2014/30/CE
