mwtools 754751861 ARP30240 Alu ramp 3-fold 270 kg 2400x740mm wheelchair

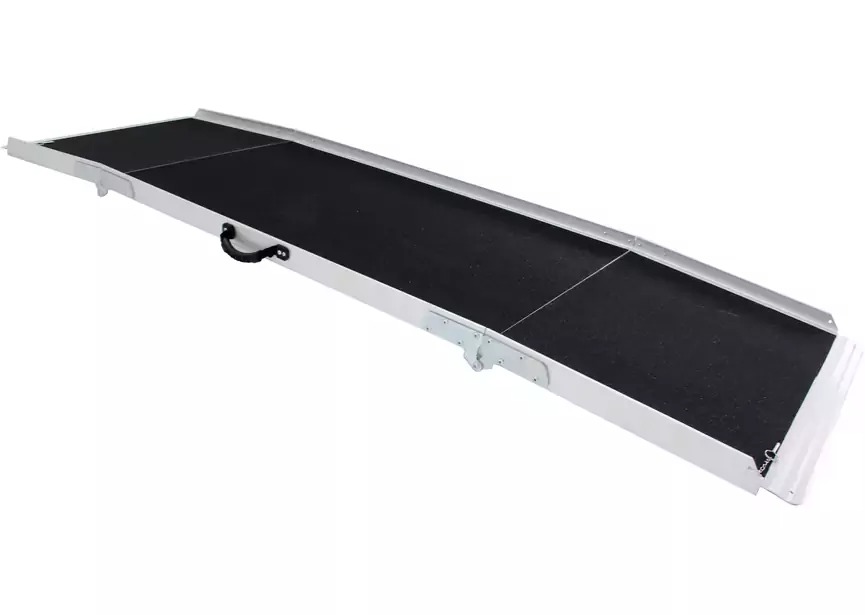

MW-Tools ARP30240 Aluminum wheelchair ramp 3-fold 270 kg 2400x740mm

Special features

• Delivered per piece
• Light and portable: only 20 kg
• Closed surface with fine non-slip profile. Even in rain the plate remains perfectly slip-resistant.
• Suitable for all types of small tires and wheels. Optimized for wheelchairs, walkers and scooters so that they can effortlessly drive up the plate
• Raised edge protects users and keeps vehicles safely on the ramp
• Made entirely of aluminum, completely rust and weather resistant
• Breaking strength = 1.5 x capacity

Technical data

• High capacity: 270 kg
• Length: 2450 mm
• Compact folded dimension: 1300 x 750 x 100 mm (hinges 2 x in width)
• Open dimension: 1850 x 750 x 60 mm
• Internal width: 720 mm, suitable for wide wheelchairs
• External width: 750 mm
• Profile height: 60 mm
• Suitable for ramp height up to 600 mm (at a 30% slope or 16.5°)
• The stated capacity is calculated with evenly distributed load on two points, spread along the length of the ramp, and does not apply as a point load.

Scope of delivery

• 1x ramp
