Nedo NV472034 Primus2 H2N Slope laser + Commander H2N + receiver + Slope guard

Nedo NV472034 Primus2 H2N Slope laser + Commander H2N + receiver + Slope guard

PRIMUS2 H2N with tilt sensor Thanks to the tilt sensor, the position of the laser is constantly monitored and adjusted if necessary, even in tilt mode. For the user, this means even better accuracy for the rotation laser and more safety when measuring slopes.

Nedo Primus2 is the new series of fully automatic rotation lasers for professionals in the construction industry. Ideal for leveling, stake out and checking slope. Reliable and robust for the rough and tumble of the building site. Uncompromising quality for professionals. The high-power laser diode with laser class 3R guarantees optimal visibility of the laser beam at all times, even in poor lighting conditions.

The new Primus2 series sets new standards for fully automatic rotation lasers. The Primus2 series of rotation lasers are highly accurate in all application conditions: in heavy rain, in freezing temperatures or in searing heat. Always when it matters most. Waterproof and dustproof to IP 66, Primus2 series rotation lasers operate reliably even under the harshest operating conditions.

After use, the Primus2 can even be hosed down and cleaned with a water hose. High-quality NiMH batteries with EneloopTM technology guarantee an extremely long service life of over 100 hours and minimal self-discharge. The smart energy holder allows a fast changeover from battery operation to battery operation and vice versa. Tired of cumbersome handling? Then you will be delighted with the simple, intuitive operation of the new - rotation lasers.

The LCD display clearly shows the operating mode, rotation speed, battery condition and for the H2N and HVA2N also the inclination in the X and Y axis.

Features Primus2 H2N :

• Fully automatic double-shot laser
• Robust, motorised levelling
• Single or double-axis slope with convenient % input for X and Y axis Entered slope values are saved when switching off
• Large clear display for indication of slope, rotation speed, battery charging status etc
• High visibility high power laser beam, laser class 3R, for uncomplicated work at short distances
• Automatic height monitoring stops the laser in case of strong vibrations
• This prevents height errors
• Rotor protection made of shatterproof glass
• Highly accurate under all operating conditions

Specifications

• Self-levelling range : ± 5° motorised with automatic monitoring
• Tolerance : ± 0.5 mm/10 m
• Deduction : ± 10 direct input in 2 axes
• Laser class : 3R, 635 nm,< 5 mW
• Rotational speed : 600 rpm
• Power supply : battery set NiMH 4,8 V, 7000 mAh
• Operating time : 100 h
• Weight : 3,7 kg
• Size : 210 mm x 205 mm x 185 mm
• Operating temperature : -20°C to 50°C
• Bereik Ø : 700 m
• IP-classificatie : IP 66

Includes

• Rotate laser Primus2 H2N

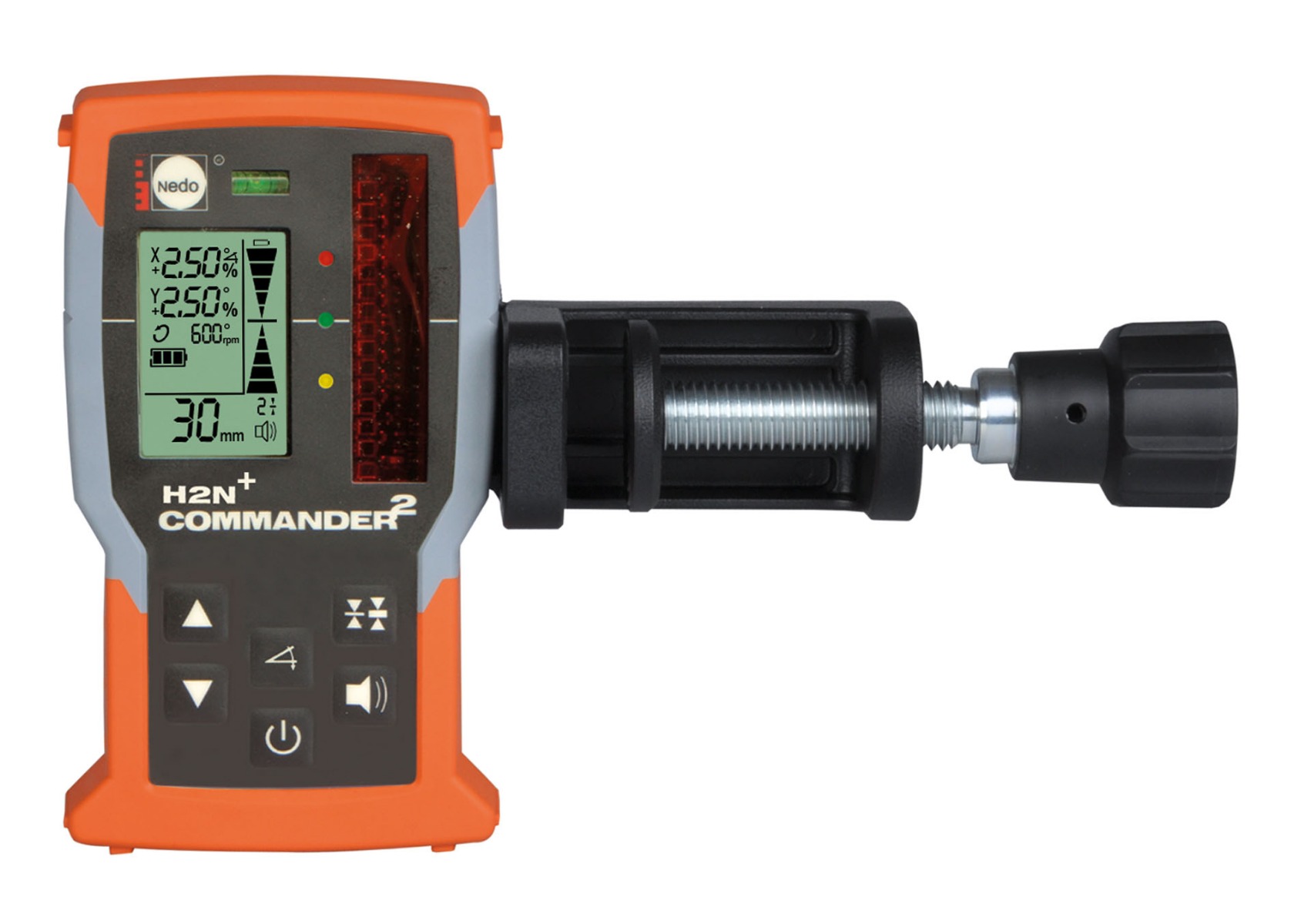

• Combi module Commander2 H2N (laser receiver with radio remote control)
• Staff clamp

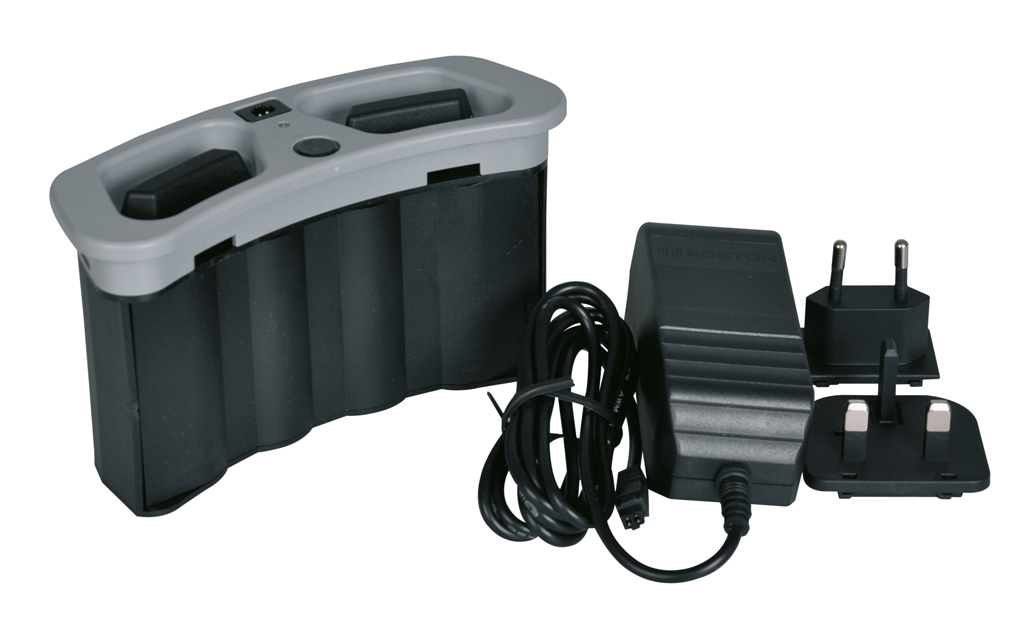

• Batteries and charger
• Primus2 Quickfix adapter
• Robust suitcase
• English manual
