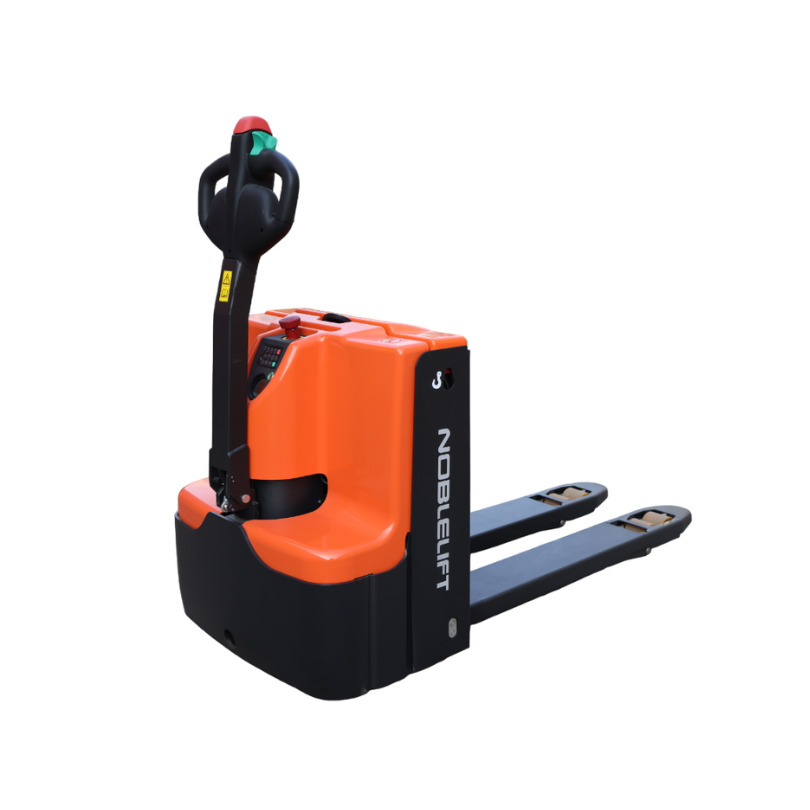

Noblelift PT20Li Electric Pallet Truck with folding platform Li-Ion 2000kg poly tandem 1150x540mm 24V 150Ah battery and charger

Noblelift PT20Li Electric Pallet Truck with folding platform Li-Ion 2000kg poly tandem 1150x540mm 24V 150Ah battery and charger

Special features

• Fast charging Li-ion battery - quickly operational again
• Electric Power Steering (EPS) - unparalleled driving experience, efficient and safe operation
• Multifunctional handle - increases operator comfort
• Compact design - smaller turning radius than comparable models, suitable for narrow aisles and small storage areas
• Adjustable and foldable safety arms - strength and operational stability
• Foldable arms and platform - easy storage, space saving
• Regenerative service brake - advanced braking system
• Dual hydraulic cylinders - for powerful and stable lifting
• Multi-function LCD display - intuitive operation, tracks operational data
• Integrated Battery Management System (BMS) - optimal battery life

Technical data

• Capacity: 2000 kg
• Lifting range: 85 - 120 mm
• Turning radius: 1482 mm
• Tilt angle loaded / unloaded: 8% / 15%
• Steering wheel material: Polyurethane
• Fork wheel version: Double polyurethane
• Number of wheels: 2, 4
• Drive wheel size: Ø230 x 70 mm
• Size loading wheels: Ø84 x 82 mm
• Size swivel wheels: Ø100 x 40 mm
• Service brake: Electromagnetic
• Ground clearance: 25 mm
• Drive: electric
• Power driving motor: 1,3 kW
• Power lift motor: 0.8 kW
• Travel speed loaded / unloaded: 5 / 6 km/h
• Lifting speed loaded / unloaded: 0,025 / 0,033 m/s
• Lowering speed loaded / unloaded: 0.045 / 0.031 m/s
• Battery pack: 24V / 150Ah Li-ion

Scope of delivery

• incl. battery and charger
