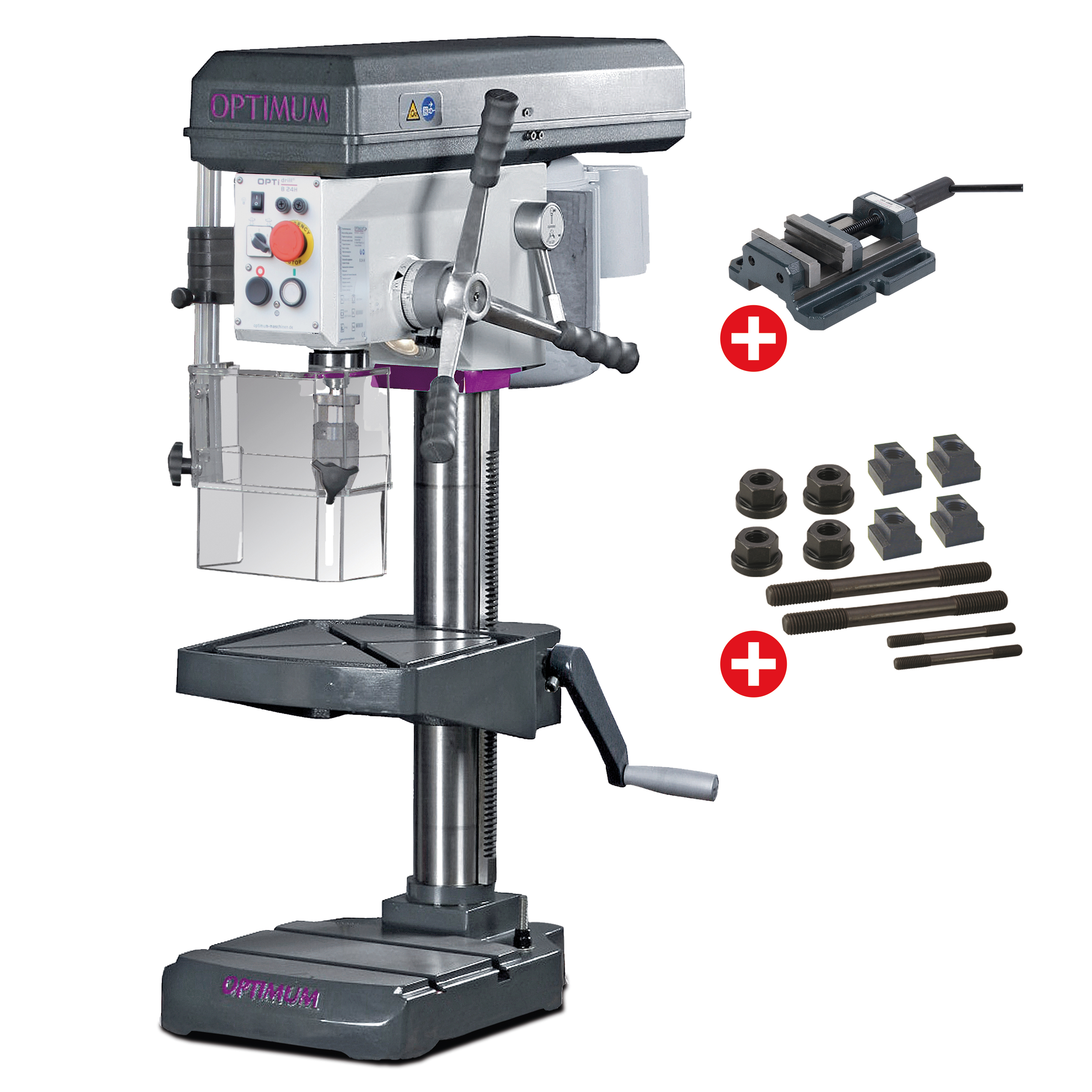

Optidrill 790029241 B24H PACK Table drill 850 watts 230V

Optidrill B24H PACK Table drill 850 watts 230V

Special features

• Professional table drill with belt / cord drive for the better workshop or training centers.
• Guaranteed concentricity accuracy better than 0.015 mm measured in the drilling spindle
• Spindle with precision ball bearing
• Quieter running due to aluminum pulleys
• With quality toothed drive belts, the machine obtains significantly better power transmission and significantly less performance loss.
• 7M industrial V-belt, guaranteed belt life up to 10,000 working hours
• Drilling depth stop
• Heavy, precisely machined work table with T-slots in diagonal pattern and 360° rotation around the column, equipped with double clamping.
• The table is easily adjusted in height by means of a wide rack.
• One-piece aluminum handle with soft grip"
• Solid, large base plate with T-slots
• All models are left - right handed
• 3 x 220 V model only possible with transformer.
• Suitable for: better workshop, maintenance service, schools and training centers.
• Drilling in steel up to 24 mm
• Recording morse cone MK2
• 7 speeds
• Motor 850 watts with aluminum housing
• Left-to-right
• Machine fully assembled

Technical data

• Voltage V 230
• Engine power kW 0.850
• Drilling capacity in steel S235JR mm 24
• Drilling capacity in continuous operation S235JR mm 20
• Spindle intake MK 2
• Number of speeds 7
• Spindle speed min-1 350-4000
• Drilling depth mm 85
• Unloading mm 165
• Diameter column mm 80
• Table dimensions (w x d) mm 280x300
• T-slots mm 14
• Rotation drilling table ° 360
• Distance spindle-table mm 515
• Distance spindle-foot mm 681
• Dimensions foot (w x d) mm 280x260
• T-slots foot mm 14
• Weight kg 84
• Dimensions (l x w x h) mm 665x434x998
• CE mark, and CE certificate according to Machine Directive 2006/42/CE, Low Voltage Directive 2006/95/CE and EMC Directive 2004/108/CE

Scope of delivery

• Quick-clamping drill chuck 1-16mm B16
• Conical mandrel according to DIN228 MK2/B16
• 2 T-nuts for T-slot 14mm and thread M12.
• Dutch language manual, inscriptions
