Optimum 713441758 DCMT070204 External/internal diamond-shaped cutting plate

Optimum TCMT110204 External/internal triangular cutting plate

Features

• Tungsten carbide cutting plates with TiN coating
• TiN = Titanium Nitride. This is a protective layer, which reduces heat generation and significantly extends the life of the cutting plate
• Cutting plates can be rotated, can be used multiple times
• According to ISO
• Packed per 5 pieces

Suitable for

• For general turning work in steel
• Lathe chisel set DBS0508 (713441662) - chisel 5
• Twist chisel set DBS0510 (713441664) - chisel 10
• Twist chisel set DBS0512 (713441666) - chisel 15
• Turn chisel set IWDBS310 (713441640) - chisel 63
• Turn chisel set IWDBS312 (713441641) - chisel 63
• Previous turning chisel set DBHM0708 (713441011) - chisel 3 and 4
• Previous turning chisel set DBHM0710 (713441111) - chisel 10 and 11
• Identical to 713441166

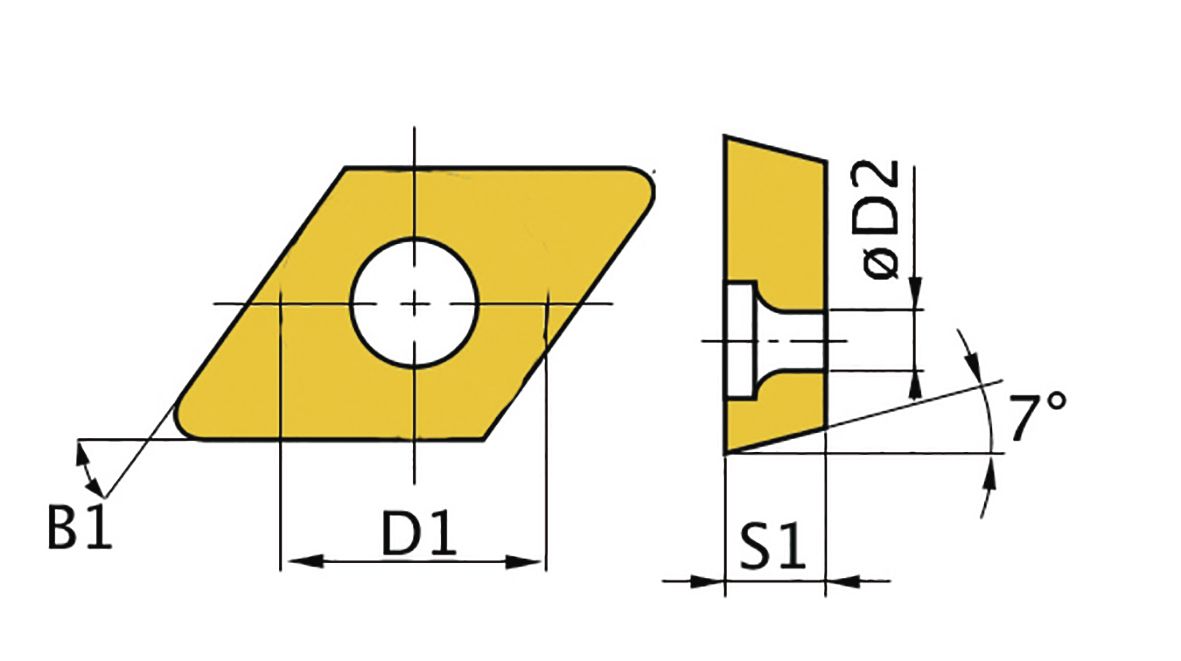

Technical data

• Chisel number 5/10/15
• ISO DCMT070204
• D1 mm 6.35
• D2 mm 2.8
• B1 ° 55
• S1 mm 2.38
• Re mm 0.4
• Weight kg 0.10
• Dimensions (l x w x h) mm 100x50x30
