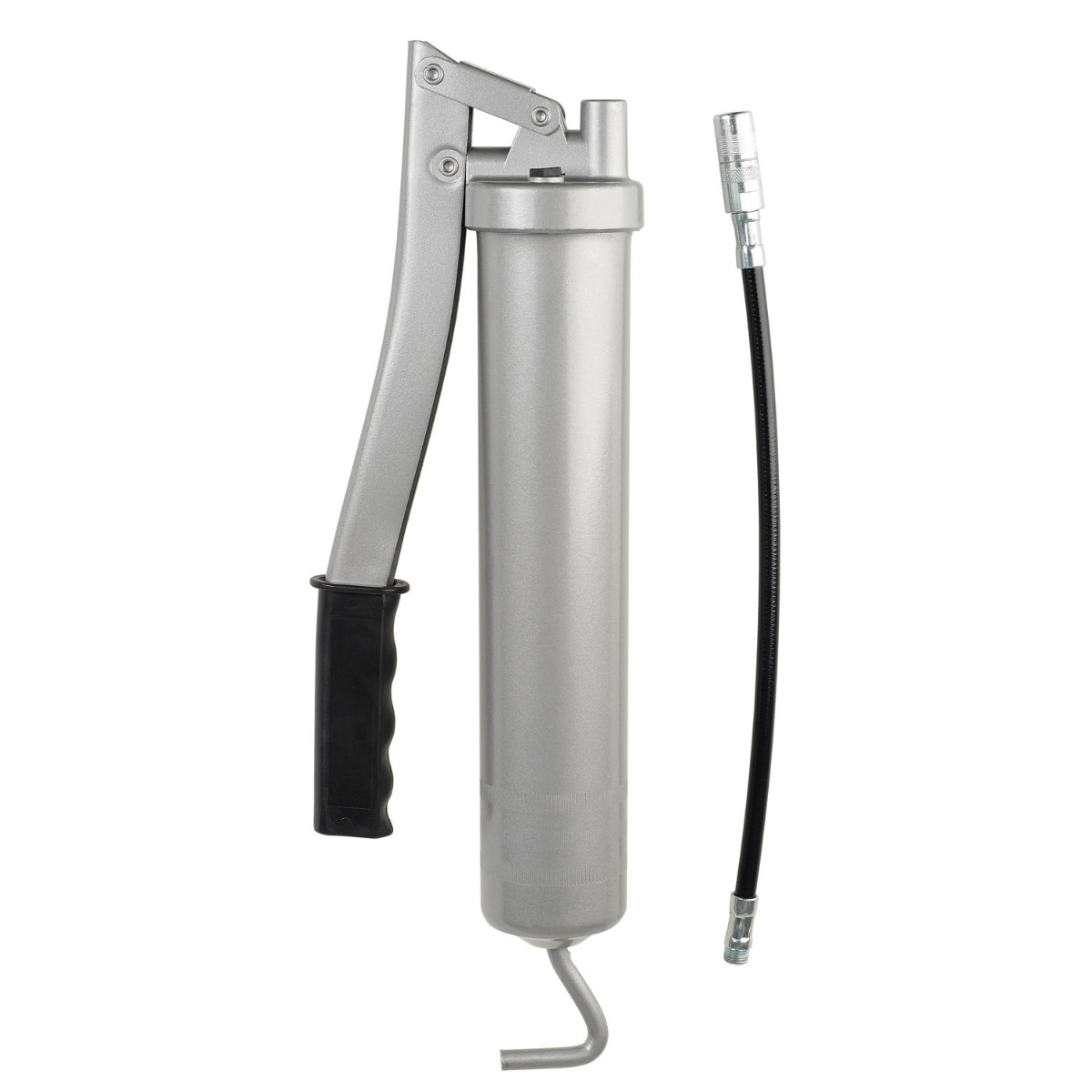

Pressol 12 630 Standard grease gun HHFP M 10 x 1 PZ MU

Pressol 12 630 Standard grease gun HHFP M 10 x 1 PZ MU

Description

• The device processes fats up to NLGI 2 at 20 °C
• Moulded sleeve with tight connection for loose grease or cartouches
• According to DIN 1283
• TÜV certified
• Pump piston with high fitting precision relative to the cylinder (no shear lubrication)
• Performance unchanged after 40,000 duty cycles
• Grease nozzle made of zinc die casting Z 410
• Strong knurling provides a secure grip
• Secure handle on the connecting rod
• Non-slip handle on the grease gun handle
• The loose cover with clamping piece allows manual spring support in any position for compression of loose grease or for pressing the cuff into damaged cartouches
• Low force impact during lubrication due to optimal lever ratios
• Quick venting by turning the grease gun tube half a turn
• Reinforced hose, M 10 x 1 bu, 8 x 300 mm (12 656)
• Hydraulic nozzle, M 10 x 1 bi (12 631)

Technical data

• Grease gun connection pressure side: M 10 x 1
• Filling volume (cm³): 500
• Filling options: 400-g grease cartridges, DIN 1284, or loose grease using a spatula
• Diameter grease pump piston (mm): 8
• Grease pump piston operation: by hand lever

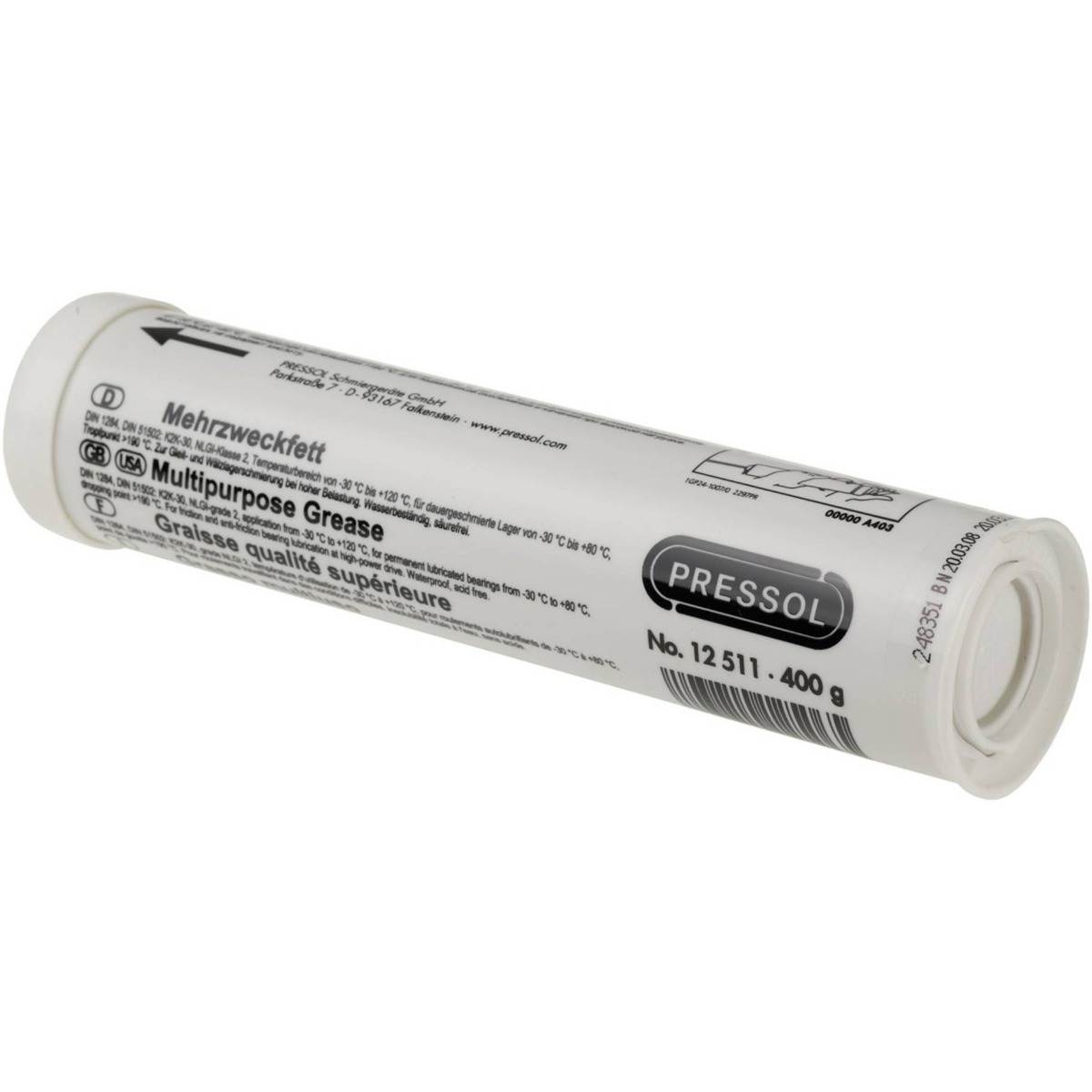

• Transport volume/stroke (cm³): 1.2 at a grease density of 0.92 kg/dm³, tested with grease cartridge 400 g (12 511)
• Throughput pressure up to (bar): 400
• Burst pressure system (bar): 850
• Burst pressure of grease nozzle (bar): 1200
• Sliding rod operation: using L-Handle
• Sealing cover: loose
• Wall thickness of grease spray tube (mm): 1.0
• Coating: silver
• Dimensions lxwxh (mm): 395 x 120 x 66
• Weight (kg): 1.27
• Packing: Poly bag printed, with EAN code
• Packaging dimensions lxwxh (mm): 400 x 360 x 145
• Weight including packaging (kg): 13.1
