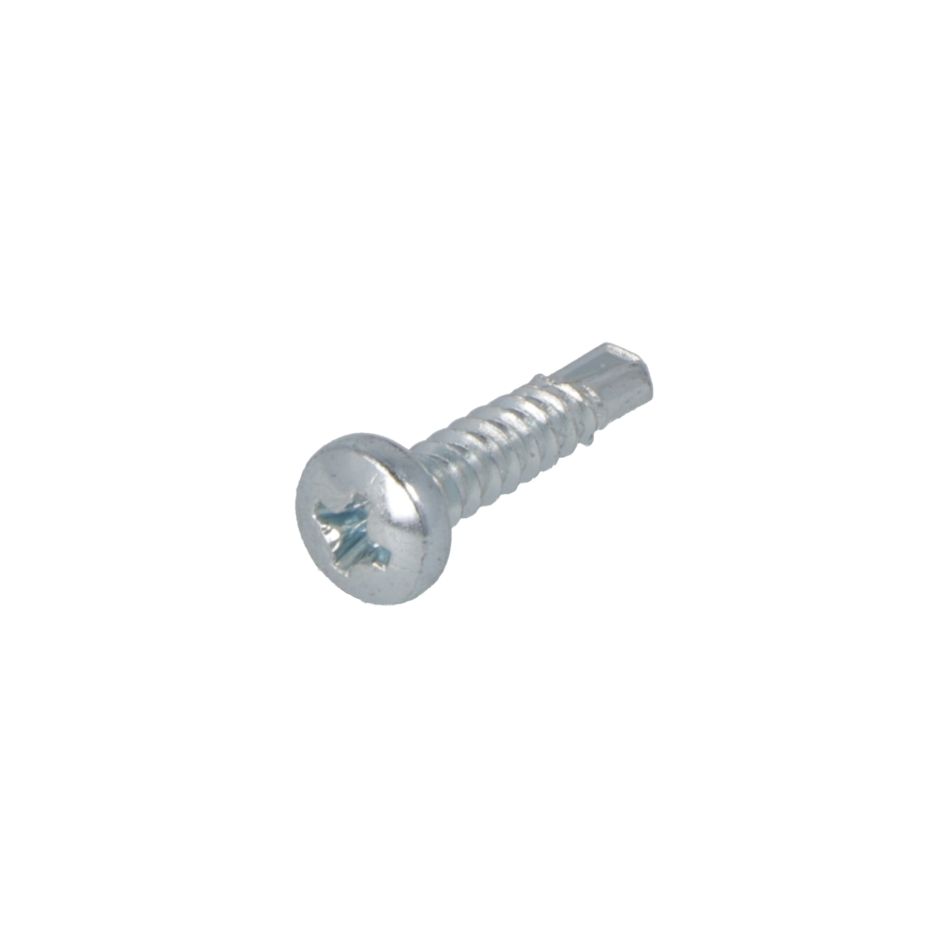

Proftec 5246.01.28920 Plate screw self-drilling VZ CK DIN7504N PH-2 4.2 x 19 mm - 200 pieces

Proftec 5246.01.28920 Plate screw self-drilling VZ CK DIN7504N PH-2 4.2 x 19 mm - 200 pieces

Special features

• A sheet metal screw fitted with a drilling tip
• With this it drills its own drill hole and is easy to turn out again
• This screw is mainly used in the metalworking industry for metal thicknesses up to 6.5mm
• The sheet metal screws are available in different head shapes: flat countersunk (DIN7504P), cylinder head (DIN 7504 N) and hexagonal head with a pressed washer (DIN 7504 K)
• You have sheet metal screws with a Phillips drive and with an inside square drive (Squardrive)
• Most versions are electrogalvanized because stainless steel A2 is too soft to provide a drill point.

Technical data

• Diameter: 4.2 mm
• Length: 19 mm
• Plate thickness min: 1.75 mm
• Plate thickness max : 3 mm
• Drive: PH-2
• Drill point type: Self drilling
• Thread version: Plate thread
• Model head: Cylinder head
• Head diameter: 8.2 mm
• DIN Standard: 7504-N
• ISO Standard: 15481
• Material: Steel
• Surface treatment: Zinc plated
• Surface treatment color: Blue
• Packaging type: Box
• Package contents number: 200 piece(s)
