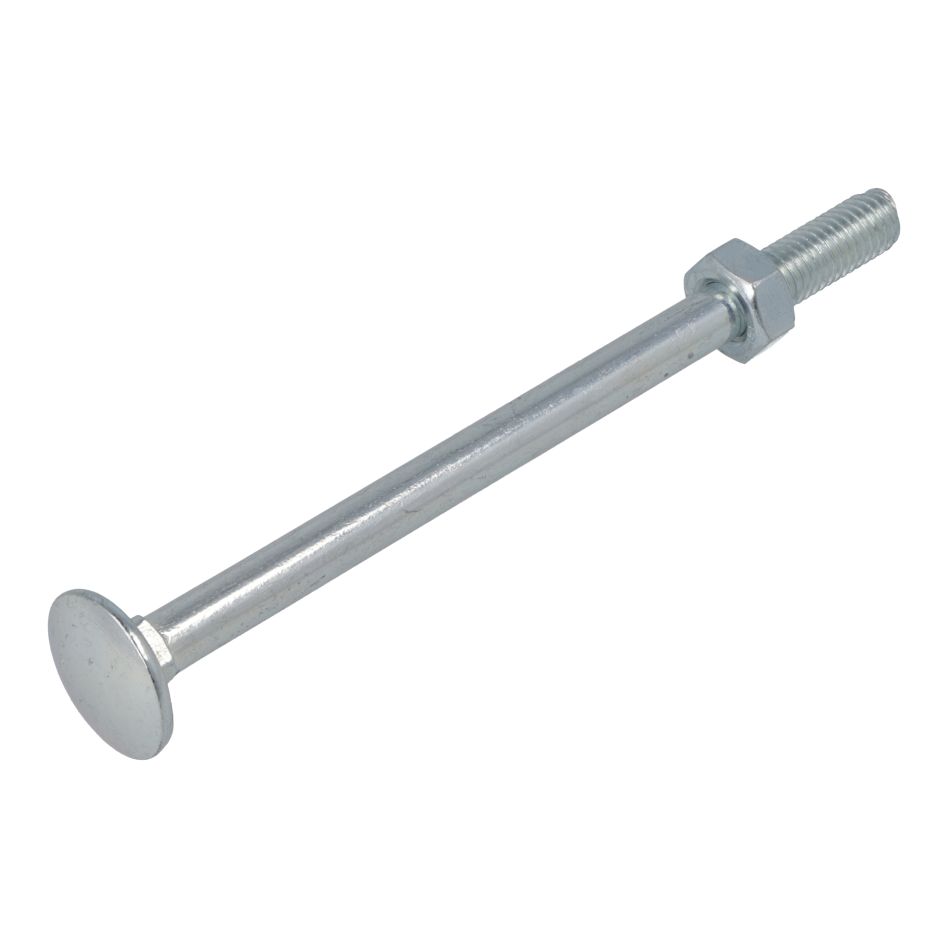

Proftec 5390.01.62601 Lock bolt + Nut VZ 4.8 DIN603/555 M8 x 100 mm - 25 pieces

Proftec 5390.01.62601 Lock bolt + Nut VZ 4.8 DIN603/555 M8 x 100 mm - 25 pieces

Special features

• A carriage bolt is a bolt with a round, low convex head, under the head there is a square to prevent turning with it
• The bolt can be used for timber structures such as canopies, conservatories and gates
• This bolt according to DIN 603 is available in steel grade 4.6 in an electrolytic galvanized variant
• The matching hex nut (DIN 934) is included in the package
• We also supply lock bolts in the PROFTEC range in a stainless steel A2 version (without nut).

Technical data

• Thread (metric): M8
• Length: 100 mm
• Length of thread: 22 mm
• Drive: hexagon SW-13
• Version: With nut
• Thread version: Metric
• Model head: Low bulb head
• Head height: 4.9 mm
• Head diameter: 20.6 mm
• DIN Standard: 603/555
• ISO Standard: 8677/4034
• Material: Steel
• Strength class: 4.6
• Surface treatment: Zinc plated
• Surface treatment color: Blue
• Packaging type: Box
• Package contents number: 25 piece(s)
