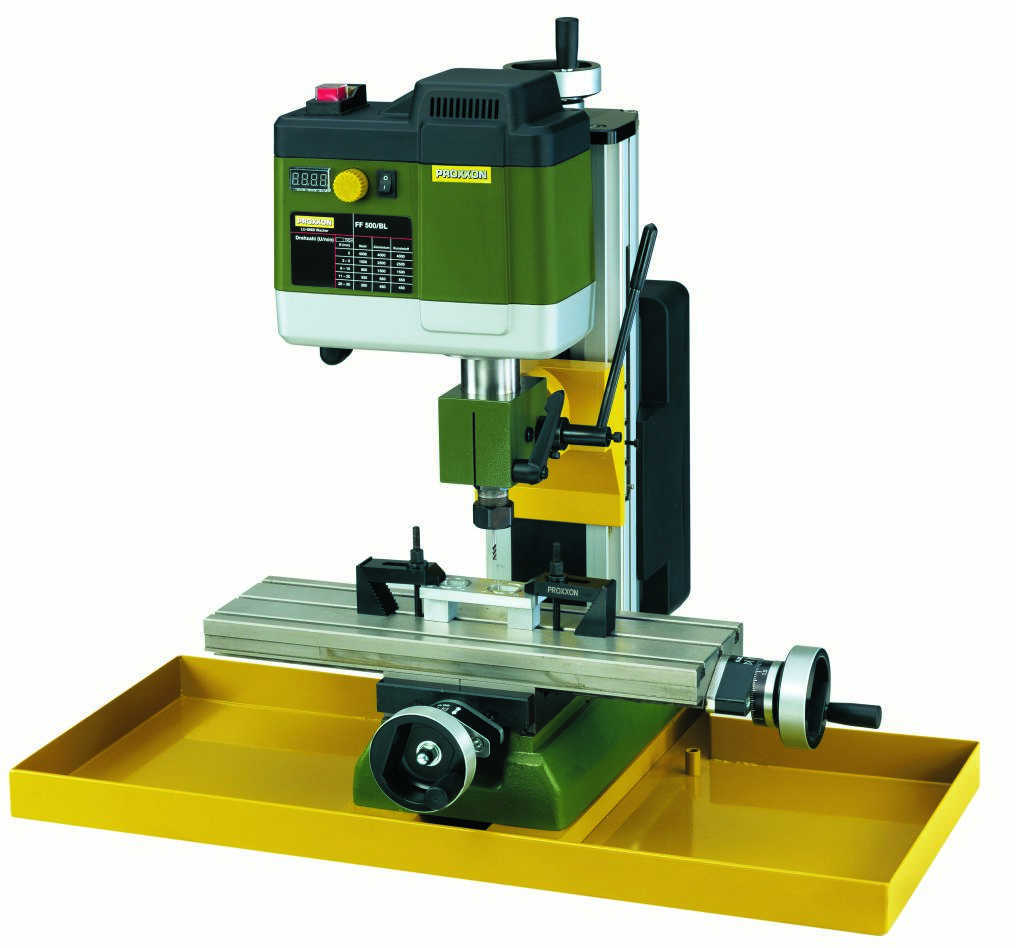

Proxxon 24350 FF 500/BL Fine milling machine 230 Volt

Proxxon 24350 FF 500/BL Fine milling machine 230 Volt

Features

• With infinitely variable speed for 200 - 4,000/min at higher precision
• With digital speed indicator
• External regulation by rotor poles and speed sensors guarantee high torque with the setting of a milling cutter below the speed range
• Solid column with profile guide
• Cutterhead rotatable to 90° left and right

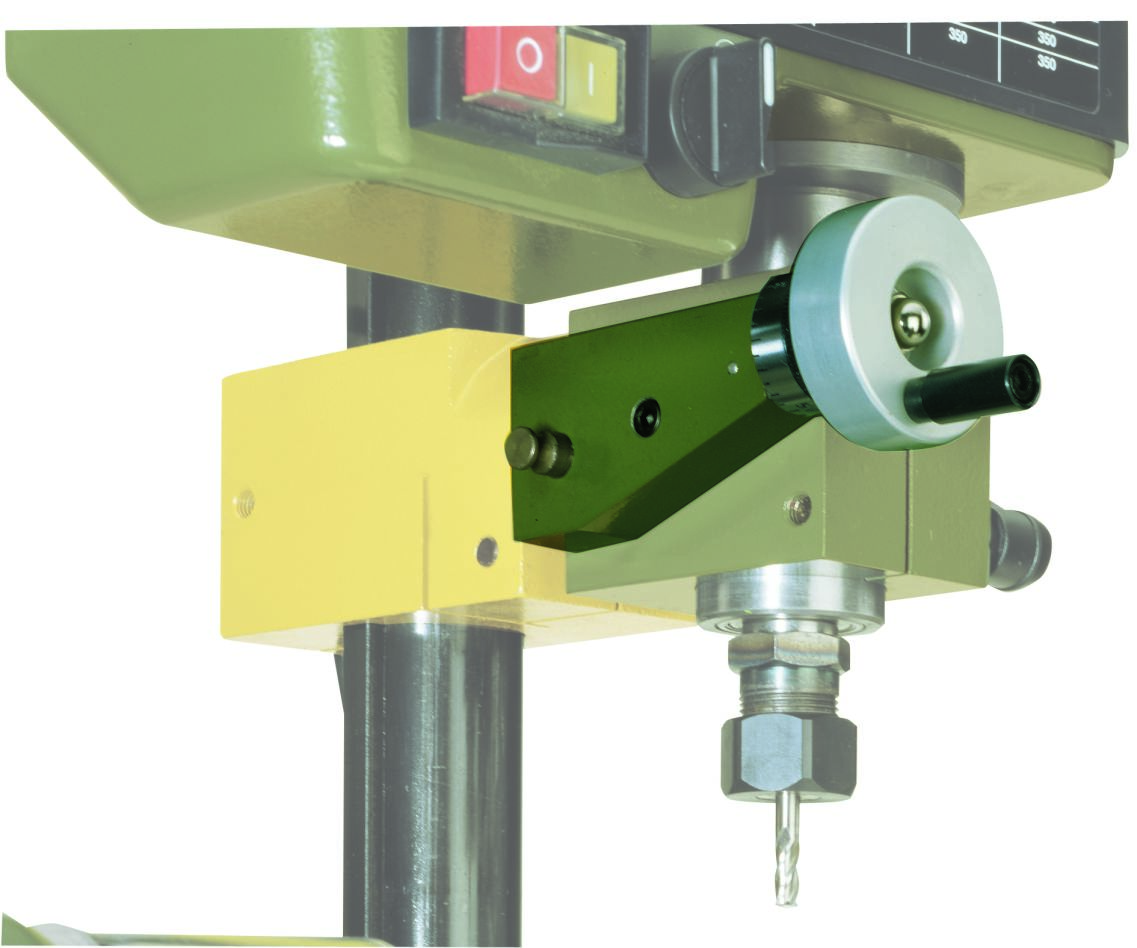

• The pinole is clampable and for adjusting the fine feed
• Tilt adjustment of the cutter head by means of a knob
• Solid steel cross table with 3 T-slots (12 x 6 x 5 mm)

Specifications

• Maximum power: 400 Watt
• Spindle speeds: 200 - 4000/min
• Unloading: 125 mm
• Sleeve knob: 30 mm
• Column: 120 x 100 x 430 mm
• Tafel: 400 x 125 mm
• Vertical (Z axis) 220 mm, horizontal (X axis) 310 mm, depth (Y axis) 100 mm
• Affmetingen: H = 750 mm, B = 550 mm, L = 550 mm
• Weight: 47 kg
