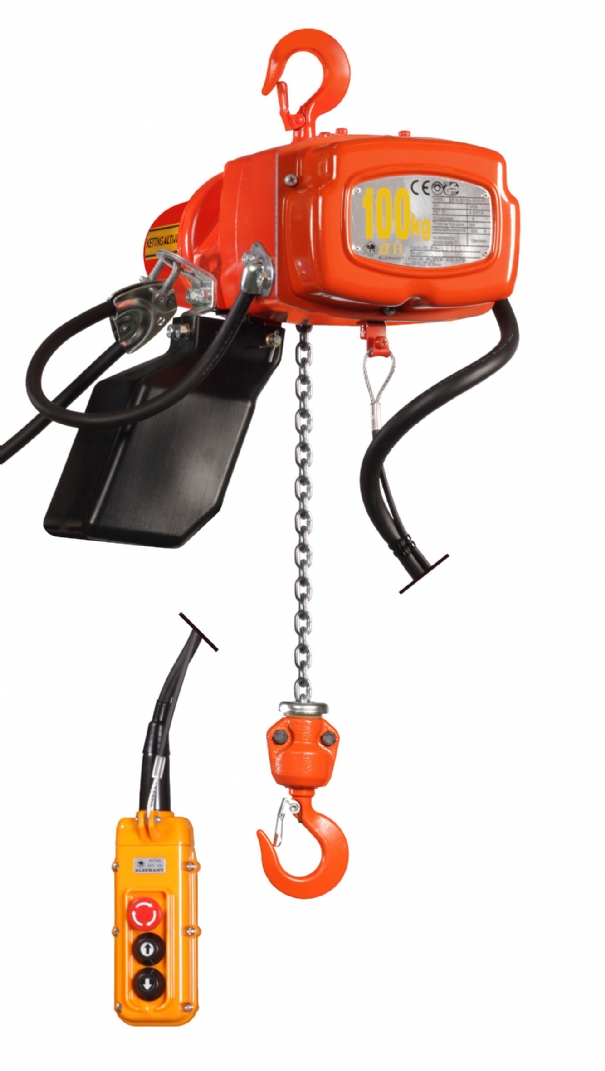

Rema 0511001-3 BETA-H/125KG/3M Elephant 230 V electric chain hoist 1 speed 3.0 mtr 125 kg 511001

Rema 0511001-3 BETA-H/125KG/3M Elephant 230 V electric chain hoist 1 speed 3.0 mtr 125 kg 511001

Special data

• The Elephant Beta 230 VAC electric chain hoists are very light, compact and ideal for light assembly work
• Equipped with slip clutch
• Load pressure brake that holds the load at any height
• Very low weight, only 7.5 kg
• Zeer compact
• Load hooks deflect gradually when overloaded and do not break off abruptly
• Grade 10 load chain according to EN 818-7

Technical specifications

• Insulation class: B
• FEM 9.511 motor: 1Am
• Operating voltage: 230 VAC
• Beschermklasse: IP54
• Control voltage: 230 VAC directly controlled

Standard delivery

• 3 m lifting height (maximum distance between top and bottom hook)
• 1.8 m control cable with strain relief and pendant control box, direct control
• 3 m power cable
• Chain bag max 10 m
• Excluding trolley
• Option Any other hoisting and operating height is also possible
• Push trolley
• Standard: EN12100-1/2, EN818-7, EN14492

Specifications

• Type: BETA-H/125KG
• Safe working load (kg): 125
• Hoisting speed (m/min): 6.5
• Power-on time 150 sch/h (%): 150 (25)
• Load chaining DxT (mm): 3 x 9
• Number of batches: 1
• Max. lifting height (m): 10
• Construction height (mm): 280
• Power (kW): 0.18
• weight (kg): 7.5
