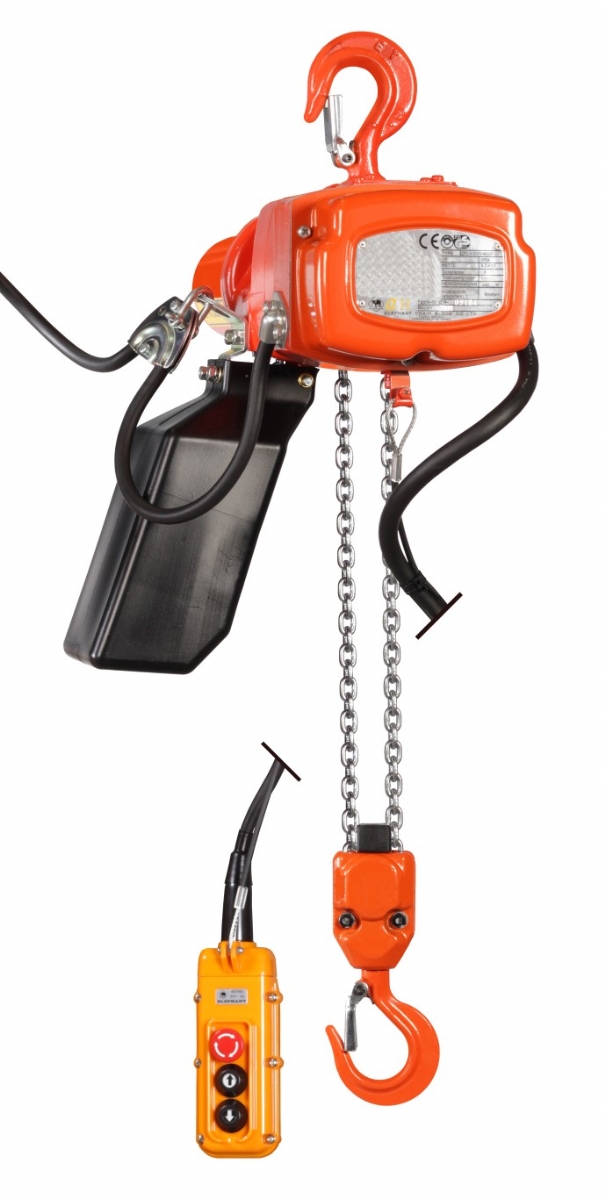

Rema 0514005-3 ALC05/500/3M Elephant Alpha 400 V electric chain hoist 1 speed 3.0 mtr 500 kg 514005

Rema 0514005-3 ALC05/500/3M Elephant Alpha 400 V electric chain hoist 1 speed 3.0 mtr 500 kg 514005

Special data

• The Elephant Alpha 400 V electric chain hoists are compact and have a very low own weight (aluminium housing)
• High duty cycle combined with high hoisting speed for a wide range of applications
• Slip clutch against overload
• Load pressure brake that holds the load at any height
• Load hooks deflect gradually when overloaded and do not break off abruptly
• Galvanized load chain, class DAT (Grade 8) according to EN 818/7

Technical specifications

• Insulation class: E
• FEM 9.511 engine: 2m
• Operating voltage: 400 Vac
• Beschermklasse: IP54
• Control voltage: 24 V

Standard delivery

• 3 m lifting height (maximum distance between top and bottom hook)
• 1.8 m control cable with strain relief
• Hanging pushbutton box 400/24V control
• 4 m power cable
• Plastic chain box for 3 m lifting height
• OptionAny other hoisting and operating height is also possible
• Larger chain box >3 m
• Push trolley Standard: EN12100-1/2, EN818-7, EN14492

Specifications

• Type: ALC05/500
• Safe working load (kg): 500
• Lifting speed (m/min): 4.5
• Power-on time 120 sch/h (%): 40
• Load chain DxT (mm): 4 x 12
• Number of batches: 2
• Max. lifting height (m): 15
• Construction height (mm): 415
• Power (kW): 0.55
• weight (kg): 22
