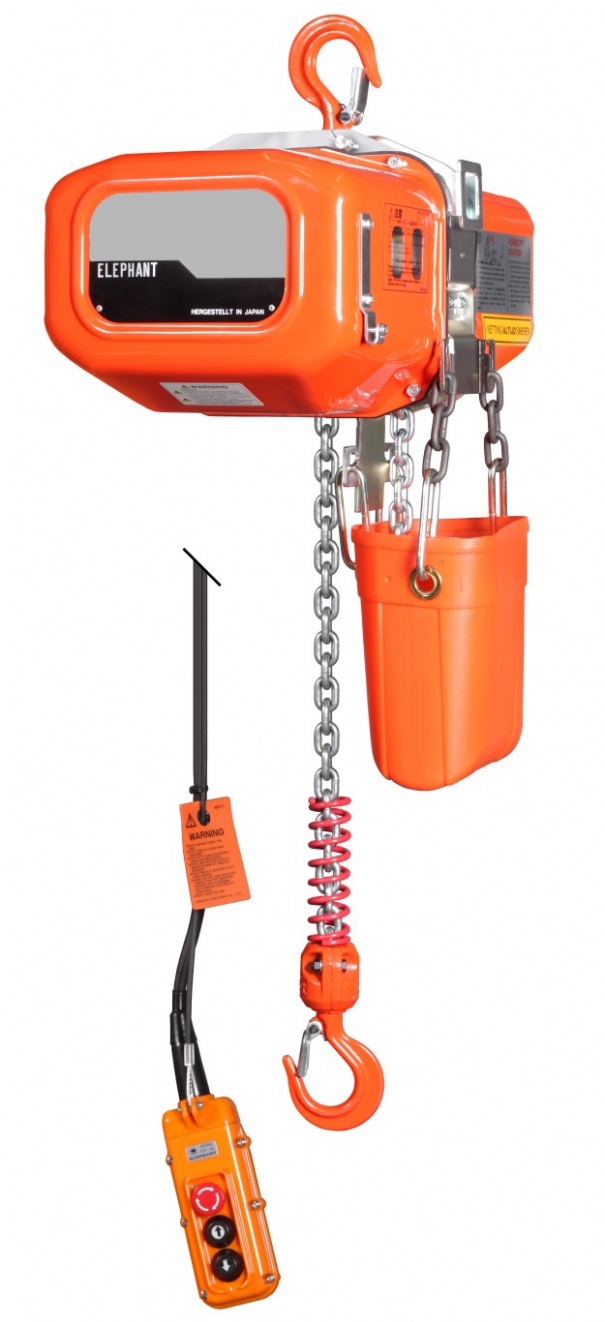

Rema 0515001-4 FAH/500KG/4M Elephant 400 V electric chain hoist 1 speed 4.0 mtr 500 kg 515001

Rema 0515001-4 FAH/500KG/4M Elephant 400 V electric chain hoist 1 speed 4.0 mtr 500 kg 515001

Special data

• The 400 V electric chain hoists are extremely robust and have a robust sheet steel housing
• Very popular because of the complete design with limit switches, 24 V control voltage and plug-in connections
• High duty cycle and lifting speed ensure trouble-free operation and long service life
• Slip clutch against overload
• Brake that holds the load at any height
• Limit switches for top and bottom hook position
• Control 24 Volt
• Power and control cables are equipped with plug connectors
• Phase protection against motor reversal
• Galvanized load chain, Class DAT (Grade 8) according to EN 818/7
• Operating voltage 400 VAC/50 Hz
• Load hooks deflect gradually when overloaded and do not break off abruptly
• 1 speed hoisting and lowering

Standard delivery

• 4 m lifting height (maximum distance between top and bottom hook)
• 2.8 m control cable with strain relief
• Upper and lower limit switches
• Pendant switch box 24 V control
• 4 m power cable
• Plastic chain box for 3 m lifting height
• Excluding trolley
• Option Any other hoisting and operating height is also possible
• Larger chain box >3 m
• Radio control
• Push / electric trolley
• 440 V/60 Hz on request
• Standard: EN12100-1/2, EN818-7, EN14492

Specifications

• Type: FAH/500KG/4M
• Safe working load (kg): 500
• Hoisting speed (m/min): 7.0
• Power-on time 120 sch/h (%): 40
• Load chain DxT (mm): 6,3 x 19,1
• Number of batches: 1
• Max. lifting height (m): 30
• Construction height (mm): 480
• Power (kW): 0.9
• weight (kg): 43
• A (mm): 161
• B (mm): 124
• C (mm): 224
• D (mm): 311
• H (mm): 480
• K (mm): 36
• L (mm): 26
• M (mm): 86
• N (mm): 24
• O (mm): 19
• insulation class: E
• Operating voltage (V): 400
• beschermingsklasse IP: IP54
• FEM 9.511 hoisting motor: 1Am
