Rems 580004 R22 Akku Curvo 22 Volt Drive Machine excl. batteries and charger

Rems 580004 Akku Curvo 22 Volt Drive Machine excl. batteries and charger

REMS Akku-Curvo 22 V - tubes ribbon-free bending. Universal for many types of pipes. Can be used immediately without adjustment work. Rapid and creep motion with quick stop for accurate bending. Quick change of bending segments and slide pieces. Li-ion battery 21.6 V, 5.0 Ah (optional), for approx. 90 bends of the stainless steel pipes of press fitting systems with one battery charge.

Special Features

• Universal application: In plumbing, heating, air conditioning, refrigeration and hydraulic engineering. Excellent for pipes of pressfitting systems, for hard and semi-hard copper pipes, as well as for thin-walled copper heating pipes according to EN 1057.
• System advantage: Only one type of bending segments and sliding pieces for REMS Akku-Curvo 22 V, REMS Curvo, REMS Curvo 50 and REMS Sine. Therefore simple, economical stock keeping. No interchanges possible.
• Cost advantage: Pipe bender pays for itself after just a few bends by saving fi ttings. No costs for fi ttings, stock, purchase. Saving of soldering locations, press connections and labor time. Increased security due to fewer pipe joints.
• Design: Compact, handy power tool with power transmission locked in during bending. Super light, drive machine only 8.5 kg. Can be used anywhere immediately. No adjustment work. Simple, effortless, fast work, e.g. 90° bend, Ø 22 mm only 6 sec. Quick and creep for dimensionally accurate bending. Cat back bends, double bends, storey bends, reversal bends possible. Height-adjustable machine stand as an accessory.
• Bending segments and sliding pieces: Shape-, and pressure-stable, made of high-quality, highly sliding, fiberglass-reinforced polyamide. The optimal alignment of bending segment and sliding piece guarantees material-oriented bending without cracking and ribbing. Scale for bends from 0 to 180° on each bending segment and marking on each sliding piece for dimensionally accurate bending. Quick change of bending segments and sliding pieces. Bending segments and sliding pieces for different pipe diameters, materials and bending radii.
• Drive: Robust, maintenance-free drive gear. Overrun protection in both directions of rotation by safety clutch. Penetrating battery motor 21.6 V, with large power reserve, 500 W output. Right and left-hand running. Stepless, electronic safety tip switch for fast and creep speed, with quick stop. Machine state control with overload protection of the drive machine against excessive current, with overheating protection by temperature monitoring of the motor (NTC), with electronic control of the charging state and indication of the charging state by a 2-color, green-red LED.

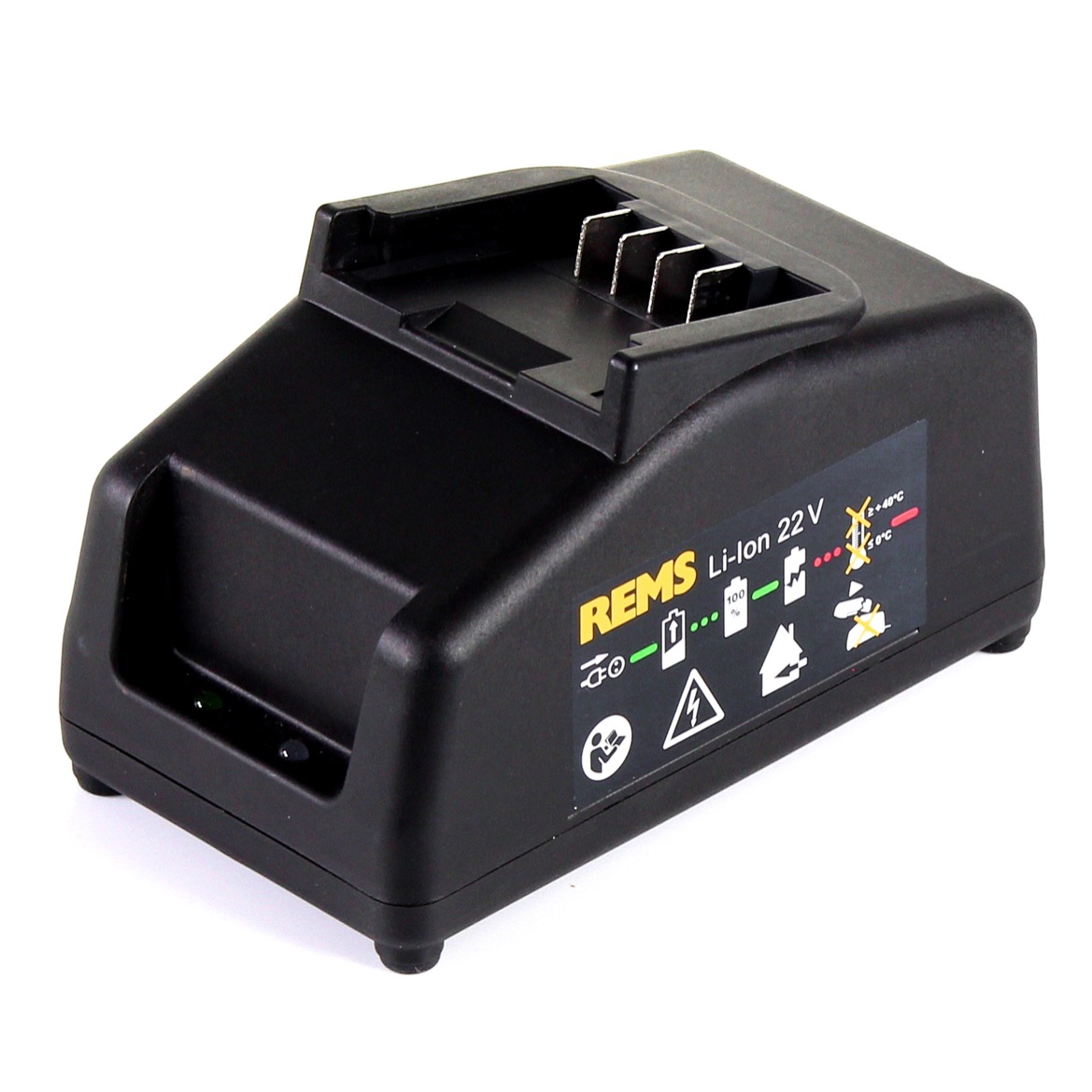

• Battery or mains-powered Li-Ion 22 V Technology. Heavy-duty battery Li-Ion 21.6 V with 5.0 or 9.0 Ah capacity for long run time. Light and powerful. Battery Li-Ion 21.6 V, 5.0 Ah, for approx. 90 bends, 9.0 Ah for approx. 160 bends of the stainless steel tubes of press fi tting systems with one battery charge. Stepwise indication of charging status with colored LEDs. Operating temperature range from -10 to +60 °C. No memory effect for maximum battery capacity. Rapid charger Li-Ion 230 V, 50 - 60 Hz, 90 W. Rapid charger Li-Ion 230 V, 50 - 60 Hz, 300 W, for shorter charging times, as an accessory. Power source Li-ion 230 V/21.6 V, 70 A, for mains supply 230 V instead of battery Li-ion 21.6 V, as accessory.

Technical data

• Hard, semi-hard, soft copper pipes, also thin-walled Ø 10 - 28 mm, Ø ⅜ - 1⅛"
• Soft sheathed copper tubes, also thin-walled Ø 10 - 18 mm
• Thick-walled copper tubes K65 for refrigeration and air conditioning EN 12735-1 Ø ⅜ - 1⅛"
• Pipes of press fitting systems made of: Stainless steel Ø 12 - 28 mm C-steel, also sheathed Ø 12 - 28 mm
• Soft precisions
