Ridgid 25668 HC450 Hole saw 4 3/4" 120 mm 115 V

Ridgid 25668 HC450 Hole Saw 4 3/4" 120 mm 115 V

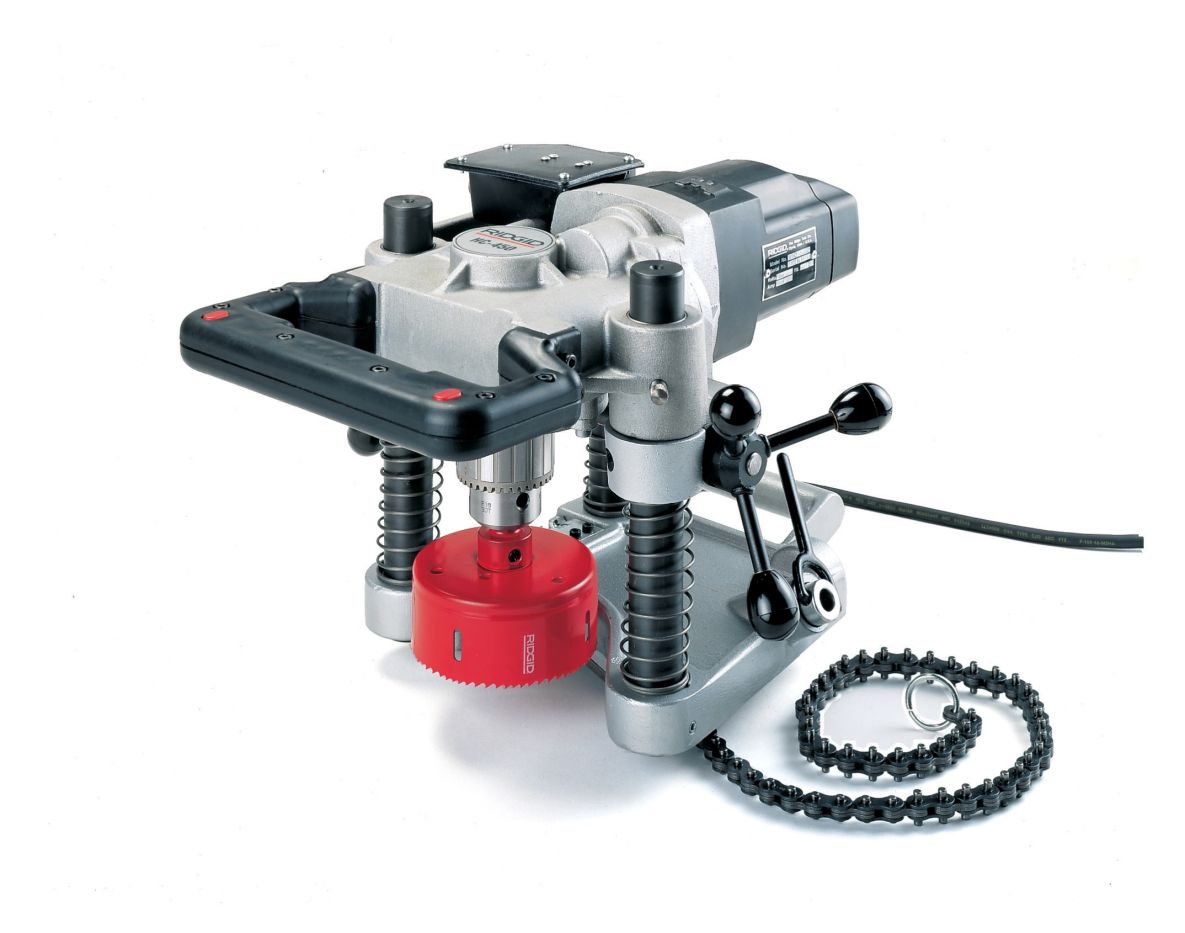

The RIDGID® Model HC-450 is designed for continuous cutting of 1/4" (6 mm) to 4 3/4" (120 mm) holes in steel, non-pressurized piping up to 8" (203 mm) in diameter. The built-in level ensures multiple hole alignment during pipe branching using Mechanical T® or Vic-O-Let™ fittings or welded saddles. The HC-450 is ideal for mechanical, industrial maintenance and fire protection professionals because it can cut holes in a wide range of pipe materials. No out-of-stock drill hole saw can compare to the rugged, purpose-built model 450 in terms of performance and durability.

Special features

• Designed for continuous dry or oil lubricated hole cutting.
• Controls on both sides allow easy operation.
• Ground fault circuit breaker and built-in fuse for user protection.
• Two carrying handles facilitate mounting and alignment.
• Built-in level for multiple hole alignment.

Technical Data.

• Hole cutting capacity: Up to 4 3/4" (120 mm) (pipe diam. schedule 10, 40 and 80)
• Mounting range pipe diameter: 1 1/4" to 8"
• Motor: Universal, 115V, 50-60Hz
• Output speed: 110 rpm (no load)
• Drill head size: 1/16'' - 5/8''
• Holders: up to 1⁄8'' (3 mm) - 5/8'' (16 mm)
• Height: 12 5/8"
• Length: 43 cm
• Width: 43 cm
• Voltage: 115V
