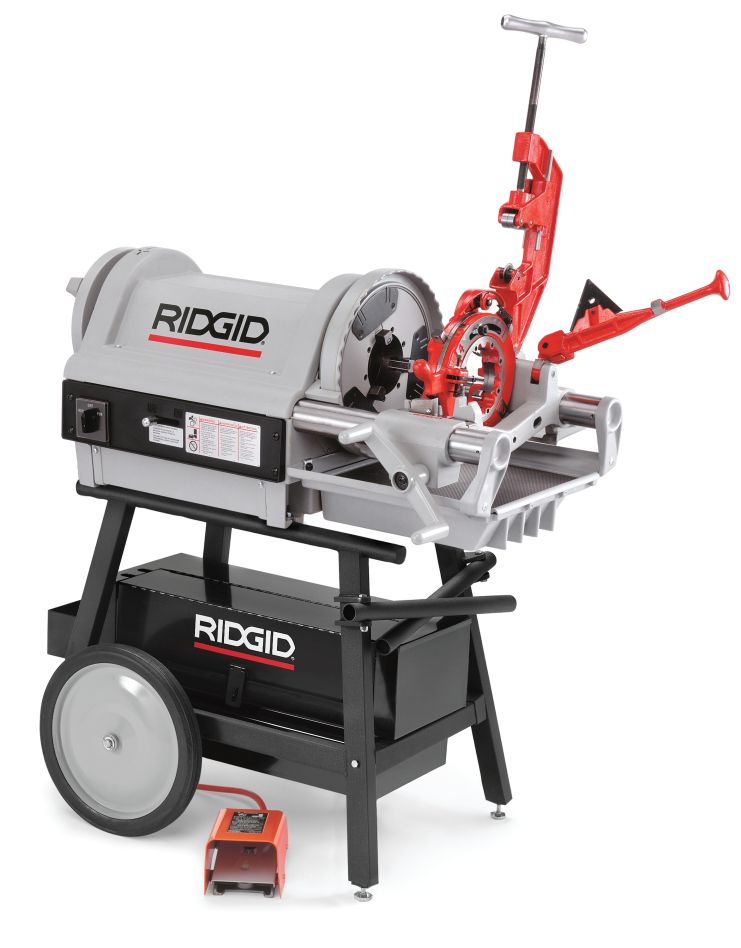

Ridgid 26092 Model 1224 Thread cutter with hammer drill head 1/4" - 4" NPT 120V

Ridgid 26092 Model 1224 Thread Cutter with Hammer Drill Head 1/4" - 4" NPT 120V

Model 1224 cuts a wide range of pipes, including black, galvanized and plastic-coated pipes as well as stainless steel, IMC and conduit pipes with large wall thickness, as well as rods up to 30 Rockwell C.

Special features

• An induction motor helps minimize noise.
• A special motor with capacitor for starting/capacitor for turning allows the 1224 to cut a wide range of materials where a voltage drop occurs.
• 1/4"-2" universal cutting head; 2 1/2"-4" receding cutting head for cutting tapered or straight NPT/NPSM or BSPT/BSPP threads.
• Constant and correct lubrication of cutting pads and workpiece via cooling oil lubrication system through the head.

Technical Data.

• Nominal pipe capacity: 1/4"-2" (6 mm-100 mm) at 36 TPM, 2-1/2"-4" (65 mm-100 mm) at 12 TPM, 4"-6" (100 mm-150 mm) with thread cutter 161 with drive gear.
• Bolt capacity: 1/4"-2" (6 mm-50 mm).
• Motor control: reverse/off/forward, heavyduty dial and integral foot switch.
• Gearbox: Two-stage gearbox, gear ratio 3:1.
• Chuck: Hammer type with interchangeable insert jaws.
• Rear centering chuck: Ridge action.
• Cooling oil pump: Self-priming gerotor pump, automatic reversal, constant flow rate.
• Cooling oil system: Through cutting head.
