Ridgid 28098 K-400 AF with C-32 IW Drum Unblocking Machine Kit

Ridgid 28098 K-400 AF with C-32 IW Drum Unblocking Machine Kit

For drain lines from 30 to 110 mm (1 1⁄2" to 4") The Model K-400 offers reliable power that thoroughly cleans everyday drain line, pipe, shower and sink drain unclogs. Streamlined appearance and user-friendly design make it easy to get started, quickly moving on to the next job. Ideal for drain cleaning companies, plumbers, maintenance departments at government agencies and other institutions and property management companies. Not designed for root drain removal.

Special features.

• A 10 mm (3⁄8") spring is best suited for 40 to 75 mm (1 1⁄2" to 3") pipes.
• A 12 mm (1⁄2") spring is best suited for 50 to 110 mm (3" to 4") pipes.
• Integrated transport cart - Easy movement to and from the work site. Large, solid wheels move easily over bumps and up stairs.
• Retractable handle - can be pulled out during transport.
• Spring control system - causes the drum to stop rotating if the cutting blade gets caught in a blockage, reduces the chance of tipping the spring in the drum and indicates to the operator when there is a blockage.
• Solid-core spring - uses a solid, fully wrapped 10 mm (3⁄8") or 12 mm (1⁄2") solid-core spring that is rugged and resistant to kinking.
• AUTOFEED® feature - this patented, automatic spring feeder that moves the spring in and out of the drain line is included as an accessory. When the direction of the AUTOFEED is reversed, the spring is guided back into the drum.

Technical Data.

• Drum Capacity: 30.5 m (100') long spring with 10 mm (3⁄8") diameter or 22.5 m (75') long spring with 12 mm (1⁄2") diameter.
• Motor: 1/3 HP motor spins the spring at 165 rpm.
• Weight (machine only): 20.4 kg (45 lbs).
• Dimensions: Length 53 cm (21") 61 cm (24") with AUTOFEED, height 58.5 cm (23") width 43.2 cm (17").
• All Model K-400 machines come with a RIDGID® drain cleaning glove and user manual.

Scope of delivery

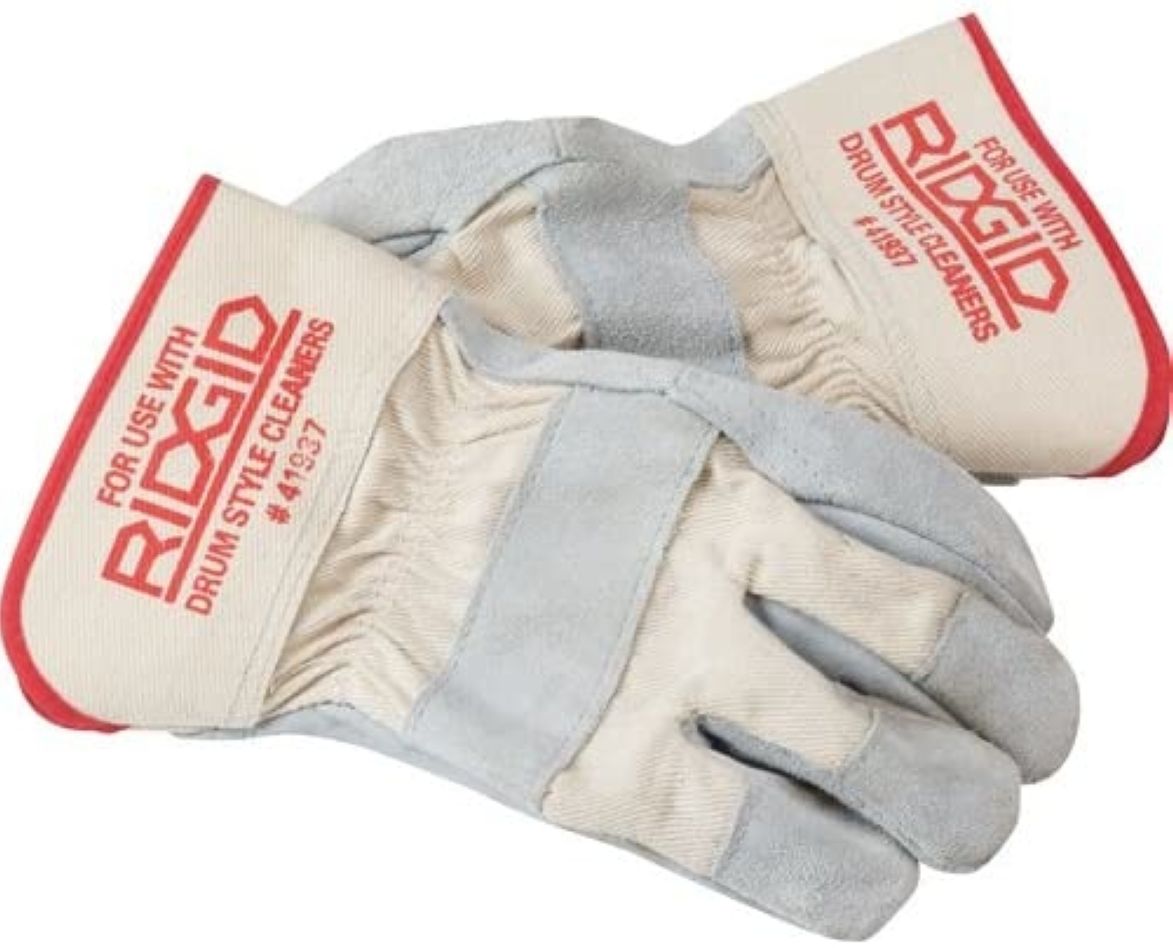

• RIDGID sewer cleaning gloves AUTOFEED C-32 IW
• Cable 3⁄8" (10 mm) x 75' (23 m) with solid core (integrally wound)

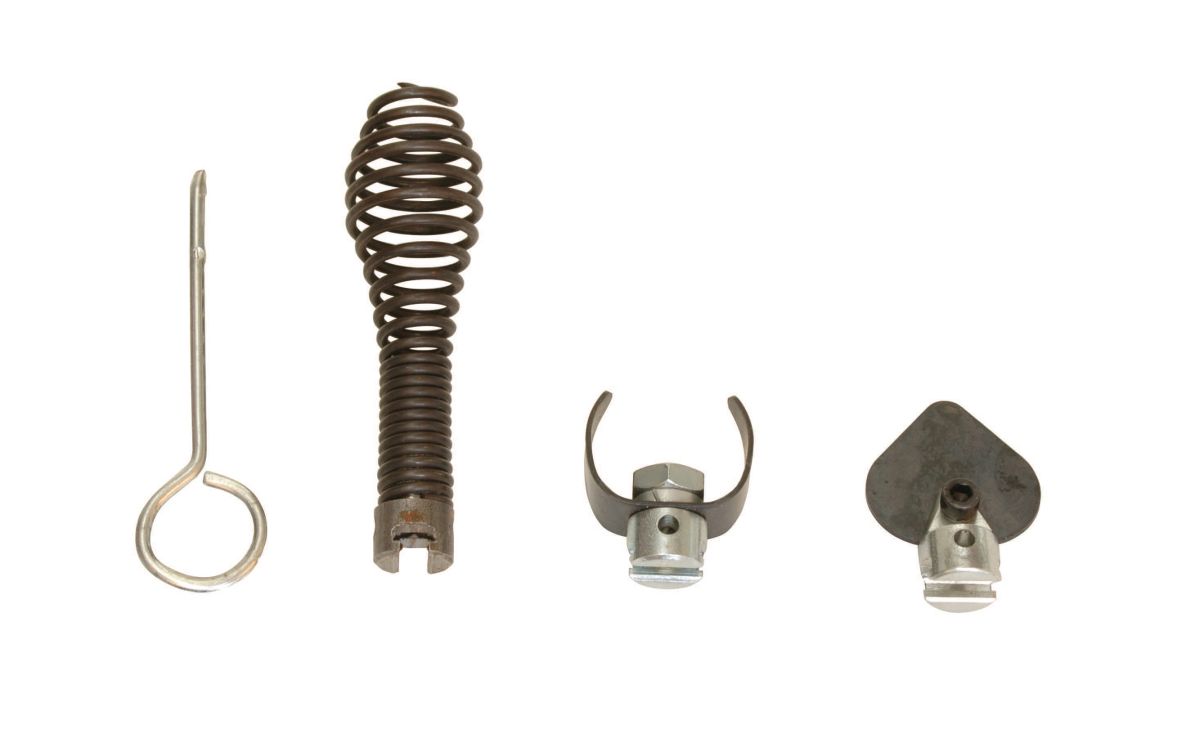

• T-260 tool set
