Ridgid 68832 SF-2500 SuperFreeze Pipe Freezing System

Ridgid 68832 SF-2500 SuperFreeze Pipe Freezing System

The SuperFreeze pipe freezer is an easy-to-use device that allows water circuits to remain operational during contractor repairs. For fast freezing of pipes up to 21 ⁄2" (65 mm)

Features

• This pipe freeze tool prevents costs and inconvenience caused by shutting down and draining the system
• The SuperFreeze pipe freezer is an easy-to-use pipe freezing system that allows water circuits to remain operational during contractor repairs
• The RIDGID Model SF-2500 is a mini refrigeration unit with autonomous refrigerant circulation to the aluminum freezing head
• This will form an ice pop in a 1⁄2" (12 mm) copper pipe in just 6 minutes
• The system can also be used with 21⁄2" (65 mm) copper tubing or 2" (50 mm) steel pipe
• Once the pipe section is frozen, repairs can be made while the system prevents the ice pick from melting
• The system is supplied with a bottle of freezing gel with a special composition to freeze the pipe quickly
• Apply the gel to the freezing heads before placing them on the pipe

Specifications

• Capacity: Copper pipes from 1⁄2 - 21⁄2" (12 - 65 mm) and steel pipes from 1⁄2 - 2" (12 - 50 mm)
• Compressor: Roterend, 230 V, 50 Hz, 2.4 A, 505 W
• Coolant: R-507. Weight: 55 lbs (25 kg)
• Hose length: 2.6 m (5.2 m span)
• Dimensions: 227⁄8" (58 cm) x 11" (28 cm) x 141⁄2" (37 cm) (L x W x H)

Includes

• SuperFreeze system
• 2 Velcro® fasteners

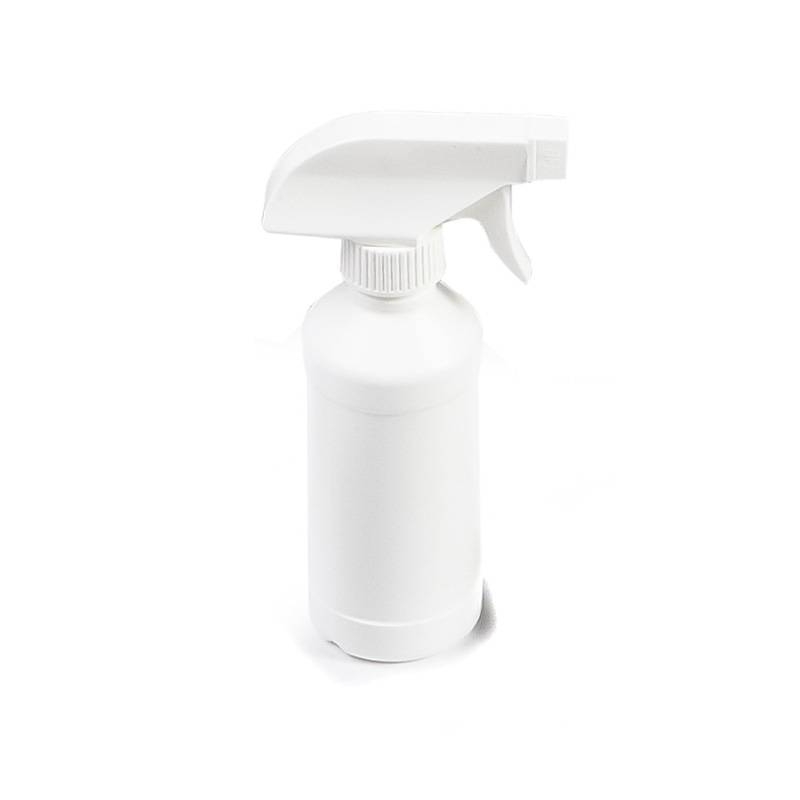

• 1 spray bottle
• 1 clamping bar

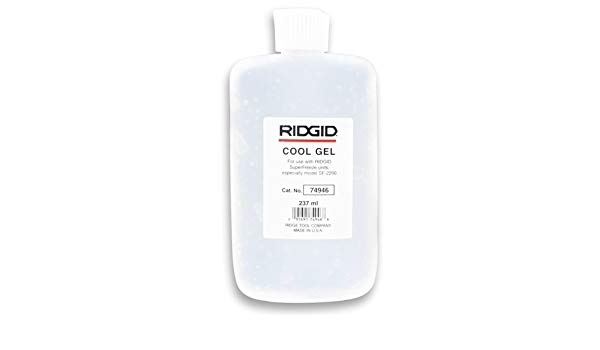

• 1 bottle of Freeze Gel (237 ml)
• Set with 2 adapters for 1⁄2" and 3⁄4" pipe (12 and 20 mm)
• Standard sizes on freezer head: 1" (25 mm), 11⁄4" (32 mm), 11⁄2" (40 mm) and 2" (50 mm)

Note: Always ensure that the SuperFreeze heads and hoses are completely defrosted before removing them from the line. DO NOT forcibly remove them from the line using a tool as this may irreparably damage the head and hoses.
