Ridgid 96062 Model 535 Electric Wire Cutter with Hammer Drill Head

Ridgid 96062 Model 535 Electric Wire Cutter with Hammer Drill Head

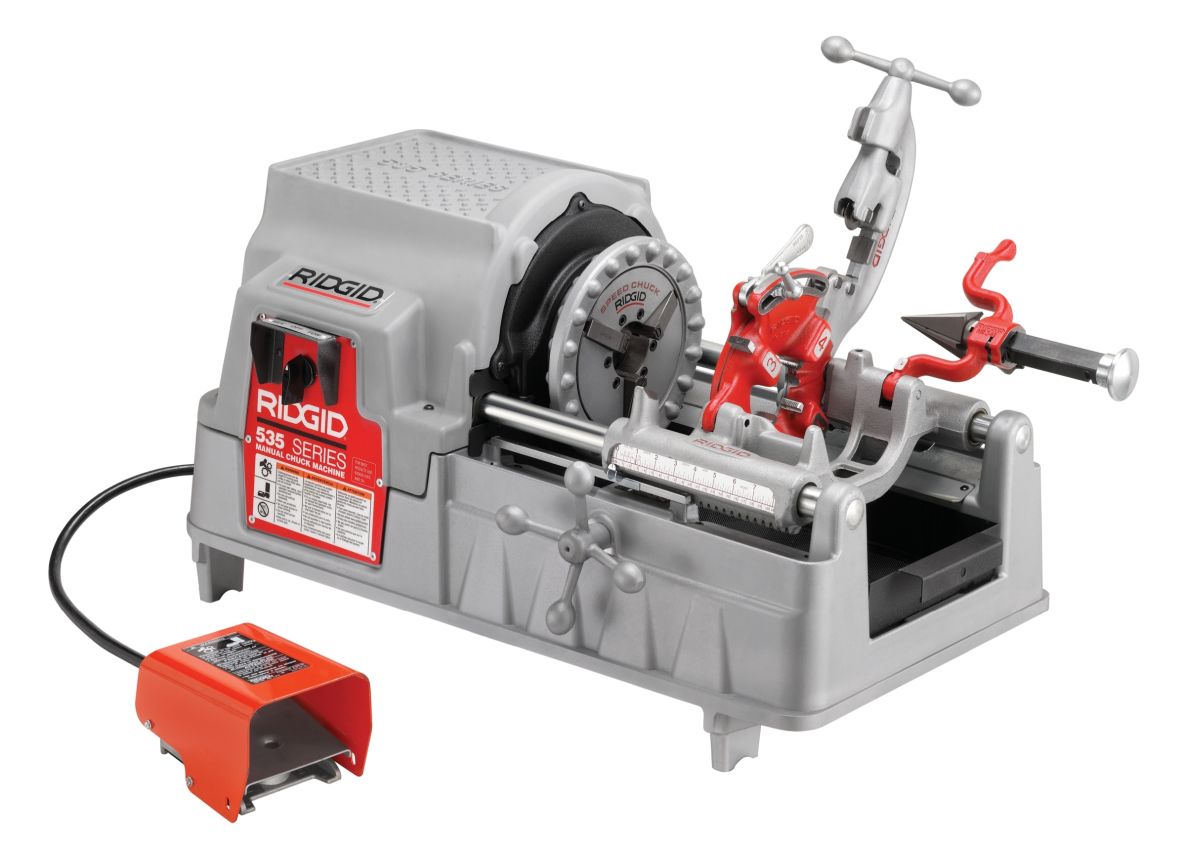

The ruggedness of the industrial workhorse is retained in Model 535, while features have been added that make threading more productive. A larger chip pan and oil reservoir make the 535 ideal for longer continuous threading. Model 535 is designed for maximum uptime with the upgrades that matter most to the professional. Users also benefit from common parts between the 535, the 535A automatic and other RIDGID® equipment.

Special features

• Large 6.6 l oil pan.
• Large chip tray.
• Spacious cover on top for storing tools and fittings within easy reach.
• High passage undercarriage makes thread cutting easier.
• Quick chuck with interchangeable insert jaws instantly centers and grips the workpiece.
• Can be used with thread-cutting irons with gearing models 141 and 161.
• Uses cutting head model 815A automatic opening and model 811A quick opening.
• Length gauge for fast and accurate cutting.
• Cutting heads and cutting pads.
• Cutting head racks.
• Three models of standards available.
• Thread cutting oil.
• Nipple chuck.

Technical Data.

• Tubing capacity: 1/8"-2" (6 mm-50 mm) 2 1/2"-4" (65 mm-100 mm), 4"-6" (100 mm-150 mm) with thread-cutting irons with gearing models 141 and 161.
• Bolt capacity: 1/4"-2" (8 mm-50 mm).
• Switches: forward/off/reverse and integral foot switch.
• Chuck: Speed Chuck™ chuck with three interchangeable insert jaws.
• Back-center chuck: Cam action with chuck.
• Pipe cutters: Self-centering, full-floating. Two models available: standard model 820 cutter with wheel, pipe capacity 1/8"-2" (6 mm-50 mm), bolt capacity 1/4"-1" (8 mm-25 mm). Optional model 821 blade-type cutter, pipe capacity 1/2"-2" (15 mm-50 mm). See ordering diagram.
• Reamer: Cone with 5 grooves, right side, 1/8"-2" (6 mm-50 mm).
• Oil pump: Self-priming gerotor oil pump.
• Reamers: Combination reamer right/left available.

Scope of delivery

• 11931 - Thread cutting oil
• 42365 - 341 reamer-constr.
• 42390 - 820 reamer-constr.
• Cutting wheel, E1032
• Allen wrench 5/32
• Allen wrench 3/16
• excl. cutting head and dies
