Description

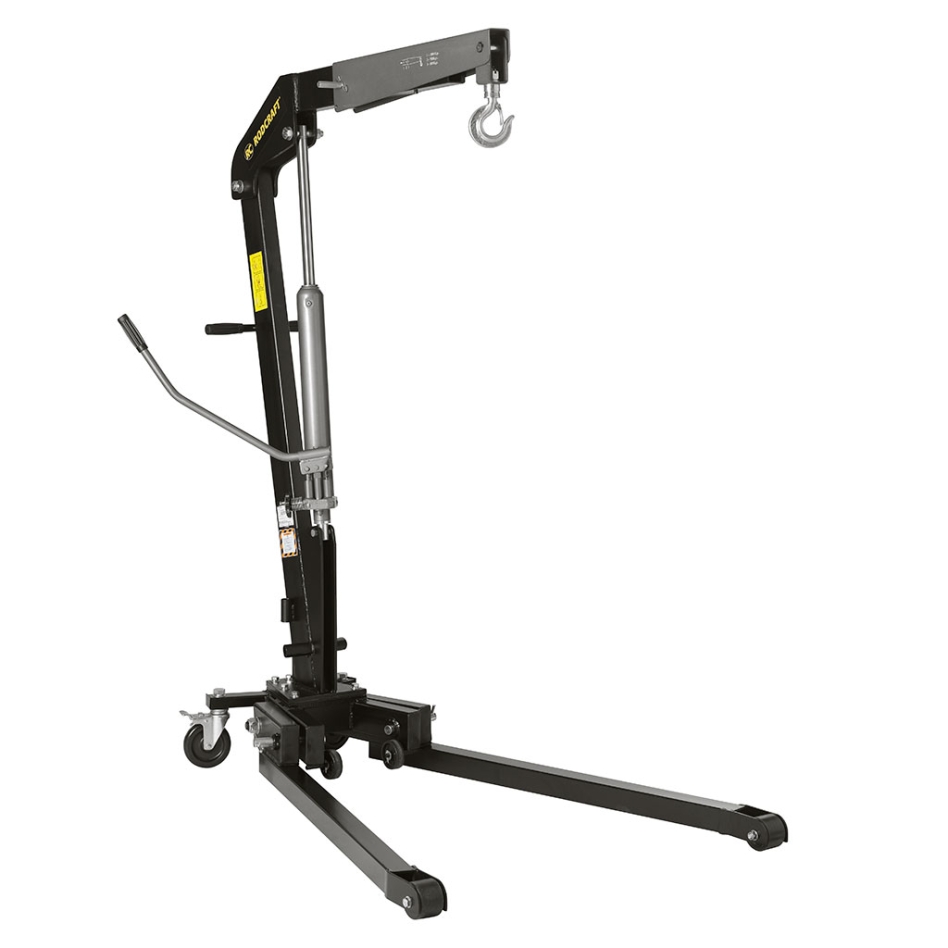

Rodcraft 8951000166 Wk1000 Workshop crane 1Ton
Workshop crane 1Ton - foldable
Bijzondere Kenmerken
- Hand pump (200 ° swiveling) allows operation from the right or left side of the crane
- Large working range up to 1350 mm at 500 kg
- Lowering valve with deadman control (closes immediately upon release of the valve)
- Lifting arm with 3 extension positions and pin locking mechanism
- Handle on the back for easy moving
- Rotating pump handle position
- Relief valve at the bottom of the cylinder
- Swivel hook with safety clip
- Dual pump system: Pumps operate in both the lifting and lowering motions
- V-shaped legs
- Nylon wheels with low profile in a very low frame - 90 mm
- Foldable and compact with 2 wheels to move the crane once folded
Technische gegevens
- Capacity P1:1000 kg
- Capacity P2:750 kg
- Capacity P3:500 kg
- Capacity P4:/ kg
- Weight:98.5 kg
- A:1560 mm
- E:2120 mm
- G:2240 mm
- J:1525 mm
- K :780 mm
- L:981 mm
- M:90 mm
- P:480 mm
- S:460 mm
- R min:1100 mm
- R med.:1225 mm
- R max:1350 mm
Leveringsomvang
- Pallet
More Information
| EAN | 4030178834059 |
|---|---|
| Order Number | 8951000166 |
| Manufacturer | Rodcraft |
| Warranty | 1 year |
