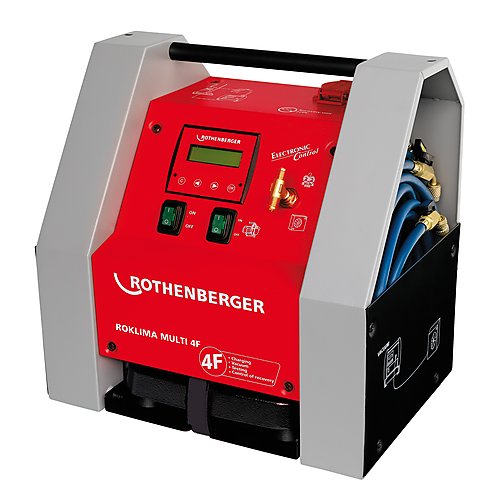

Rothenberger 1000000138 ROKLIMA® MULTI 4F Vulpomp

Rothenberger 1000000138 ROKLIMA® MULTI 4F Vulpomp

The ROTHENBERGER ROKLIMA Multi 4F is used for fully automatic operation and maintenance of air conditioners and heat pumps. The extensive range of accessories makes it possible to work with various refrigerants. Evacuation time and filling quantities can be easily set, different sensors start and stop the processes accordingly. For the recovery process a suction device can be connected to the unit. When the desired bottle weight is reached, the power supply to the suction device is interrupted.

Features

• Pressure resistance up to 80 bar guarantees full operation even with heat pumps
• Everything at hand in one hand
• Simple menu guarantees case-oriented work
• Fully automated functions mean more time for parallel work
• Safe transport
• 2 "Plus" series pressure hoses (2,500 mm) with ball valve - Safe and comfortable handling of refrigerants without the risk of refrigerant loss
• 2 different pressure gauges "Pulse-free", class 1.6, 80 mm - Universally applicable for air conditioning units with all common refrigerants
• Extendable digital precision scale up to 100 kg - Safe stand for large and small containers
• Integrated 2-stage vacuum pump with 42 l/min suction capacity - System evacuation according to DIN 8975
• Interactive display with 16 characters and 4 function keys - Easy entry of all necessary parameters
• Capillary plastic pipe - Safe, leakproof filling thanks to shut-off valve
• Robust, compact metal housing - Protection of all components such as vacuum pump and scale

Technical data

• Solution 10 g
• final vacuum 1 x 10-2 mbar
• Weight 17 kg
• Length (pressure hoses), 2500 mm
• Pump capacity 42 l/min
• Weighing range 100 kg

Scope of delivery

• Supplied without accessories
• in box
