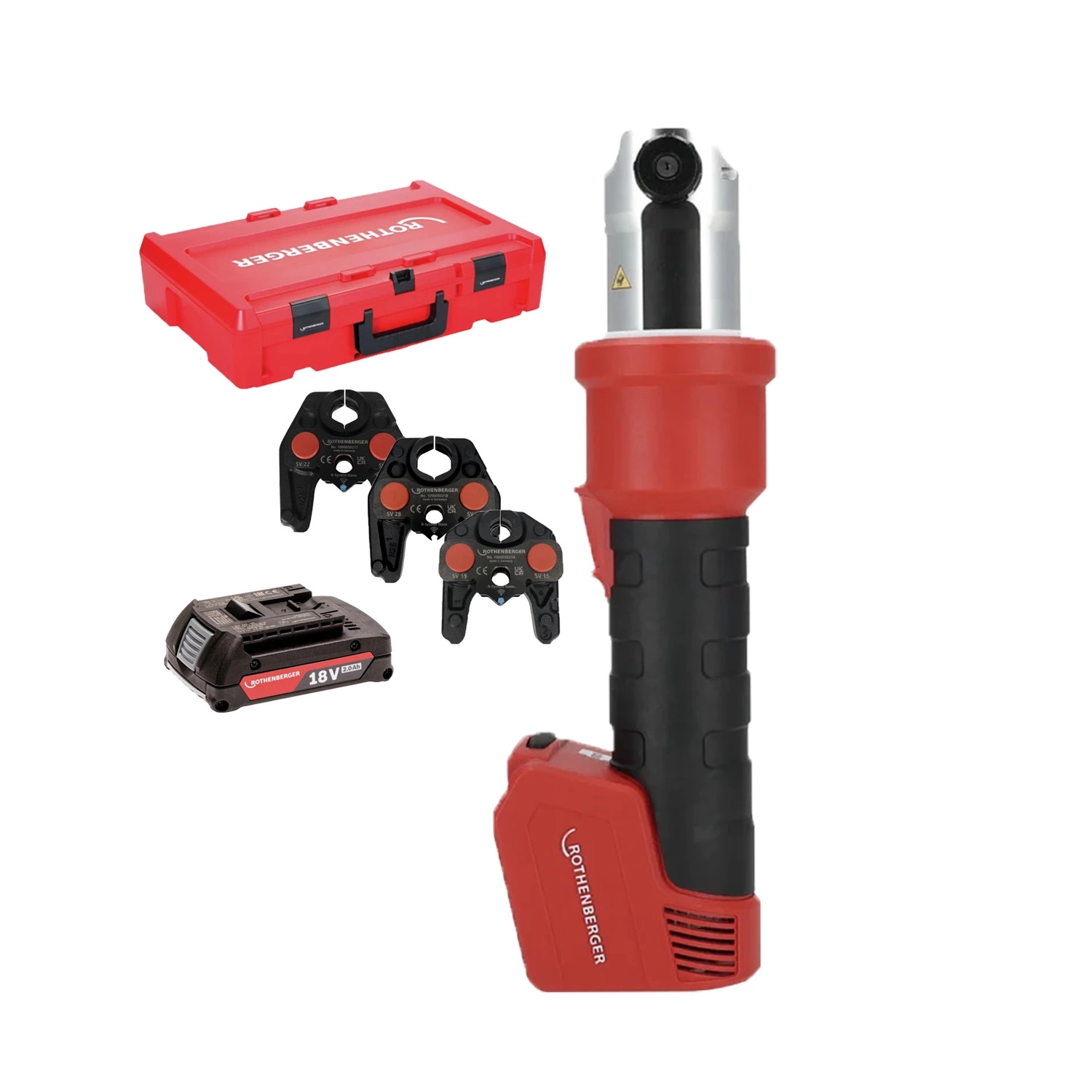

Rothenberger 1000005046 ROMAX NANO Hybrid press machine set incl. iJAWs pressing jaws SV, 15-22-28mm, 2Ah, CAS

ROMAX NANO Hybrid press machine set incl. iJAWs pressing jaws SV, 15-22-28mm, 2Ah, CAS

The ROMAX NANO CAS is the first hybrid press machine to combine two press force categories (iJAW and 32kN) in one machine. By using an electromechanical drive system, the ROMAX NANO was optimized in terms of dimensions (smallest machine of 32 kN) and weight (approx. 2.3 kg), making the machine accessible under all installation conditions. The ROMAX NANO is also equipped with an advanced smart connectivity concept consisting of RFID technology, LED display and app, which increases both the ease of use of the machine and the work efficiency of the operator directly on the construction site. This intelligent press machine enables precise work in the working range of 0-108 mm. Thanks to the eRotationDrive technology and the 2in1 press jaw holder, which is suitable for both NANO iJAW and standard jaws, the use of iJAWS and standard press jaws is possible.

Special features

• First hybrid press machine on the market (iJAW and 32kN)
• Smallest and lightest 32kN machine (only 2.3 kg)
• Interoperability with standard jaws (32kN mode only)
• Intelligent and connected (compatible with the Jaw Machine app)

Technical data

• Voltage: 18V
• Work area diameter mm: 0 - 108mm
• Operating temperature range: -10 - 60 °C
• Battery number: 1 piece
• Battery system: Li-Ion/Li-Po battery (rechargeable)
• Battery type: Rechargeable
• Press jaw system: iJAW
• System battery: CAS
• Battery type: Li-ion
• Suction force: 32 - 34 kN
• Press cycle time: 3 seconds
• Battery capacity: 2Ah

Scope of delivery

• ROMAX NANO pressing jaw iJAW, SV, 15 mm pressing jaw iJAW, SV, 20 mm pressing jaw iJAW, SV, 26 mm
• 18 V / 2 Ah battery charger EU
• ROMAX NANO 32kN Adapter
• User Manual
• ROCASE 6414
