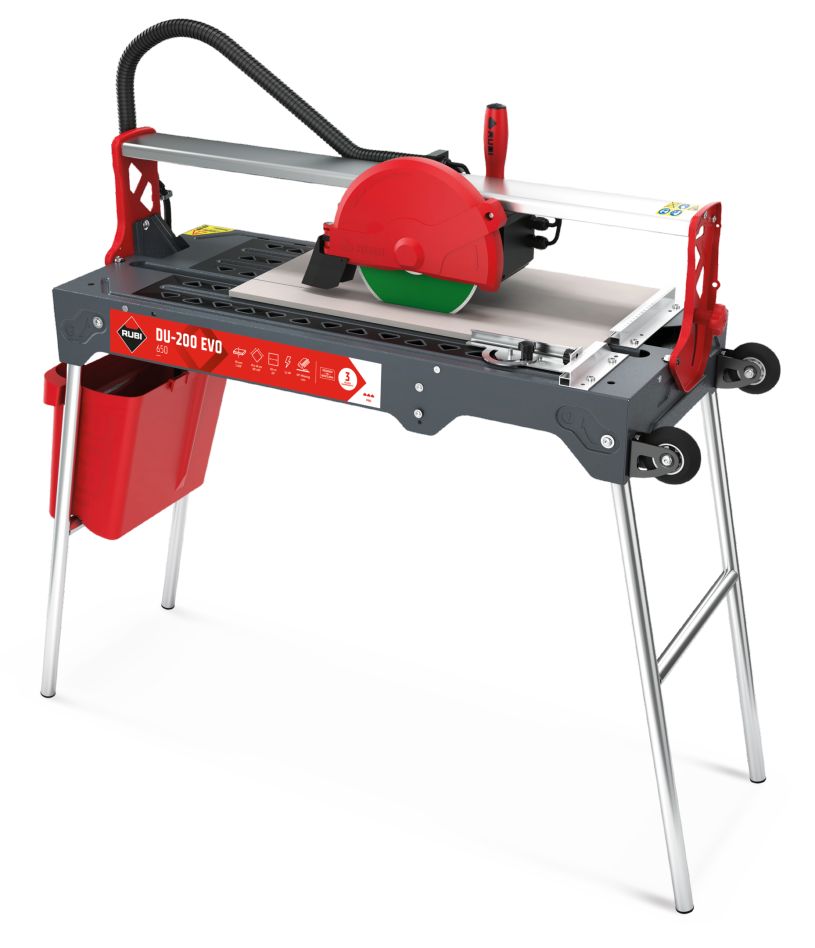

Rubi 55903 DU-200 EVO 650 Tile cutting machine outer diameter 200mm 230V 50Hz

Rubi 55903 DU-200 EVO 650 Tile cutting machine 230V 50Hz

Special features.

• The RUBI DU-EVO is an electric saw with a mobile saw head designed for renovations and light work.
• It is perfect for cutting general ceramic tiles and thin or soft natural stone. The DU-EVO electric saw machine is particularly suitable for cutting floor tiles (BIII) and glazed wall tiles (BIIa type).
• The RUBI DU-EVO electric sawing machine is equipped with a 1.1 HP (0.8 kW) direct-drive motor with thermal protection.
• The saw head of the DU-EVO RUBI electric saw machine rolls on 4 bearings and hinges at 45º to perform mitre cuts. The machine is also equipped with a bi-material handle to give the user more ergonomic comfort.
• The DU-EVO RUBI electric saw is equipped with a 200 mm diamond saw blade with continuous ring, standard for general cutting of ceramic tiles. (CEV-PRO type). The DU-EVO saws are equipped with RUBI's exclusive C3 SYSTEM, a system that allows the cooling and cleaning of the blade to be adapted to the user's needs, significantly improving the performance of the diamond blade. An 8 W water pump cools the blade with a water supply valve to adjust the cooling for each type of ceramic material.
• The innovative chassis design features an efficient water collection system, allowing you to cut at least 50% more with the same amount of water. The 8 liter tank is easily removable, both for filling and for cleaning and transport.The RUBI DU-EVO saws also have a system of folding legs that, in addition to greater tool stability, offers the professional a working height of 90 cm. The wheels and handle integrated into the chassis greatly facilitate the handling and transportation of the DU-EVO models.All models in the DU-EVO series come standard with an aluminum front stop, in millimeters, and an adjustable side stop for repetitive cuts and angle cuts, from 0º to 45º.The RUBI brand is known for the durability and quality of its tools. For more than 65 years, RUBI has produced only products with high durability and resistance, to provide the best performance in the toughest working conditions and adapt to the demands of each market.
• System with easy-to-assemble folding legs integrated into the machine.
• With built-in wheels and handle for comfortable transportation.
• External water tank that is easy to take out. Easy to clean.
• C3 cooling system. Cleans the saw blade and ensures proper cooling for best efficiency.

Technical data.

• RPM: 2915
• Cut/saw length: 65 cm
• Diagonal cut/saw length: 45x45 cm
• Cutting/sawing height: 35 mm
• Net weight without packaging: 22.5 kg
• With saw blade: Yes
• Outer diameter: 200 mm
• Length Width Height: 117x39x102 cm
• Power supply: 230V-50Hz.
• Mitre cutting thickness: 20 mm
• European Commission Directives: Yes
• EAC: Yes
• UKCA: Yes
• Power: 1.1 cv/hp
• Angle measurement: Yes
• Measurement bar INCH/MM. : Yes
• Adjustable saw head: Yes
• C3 system: Yes
