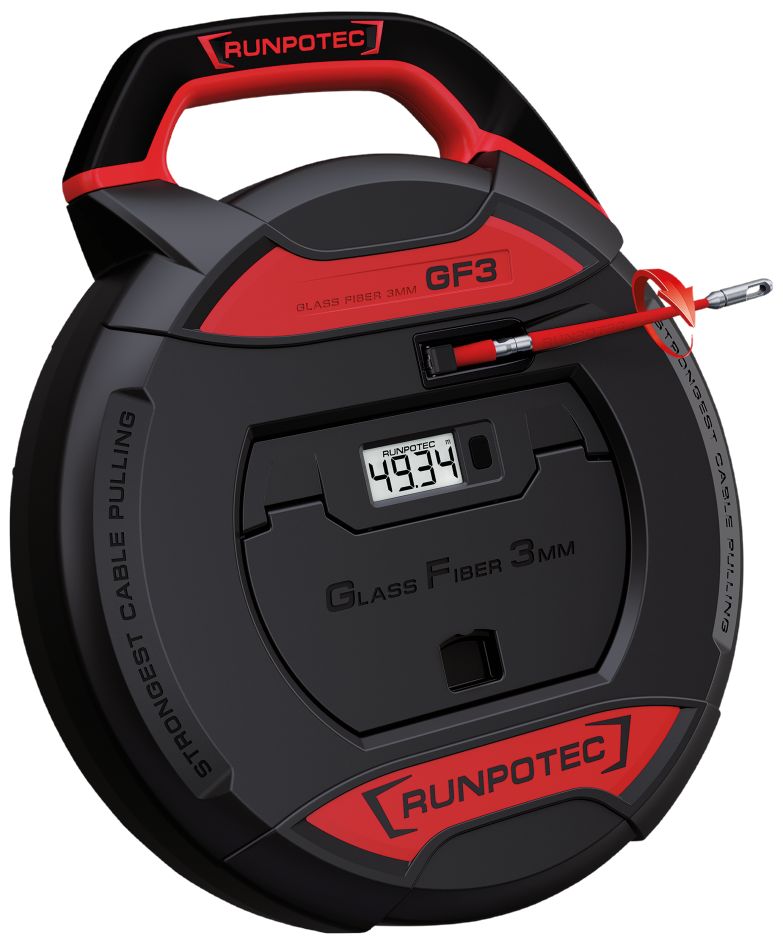

Runpotec 10195 GF3 Glass fiber tensile spring Ø 3mm with length gauge 50m

Runpotec 10195 GF3 Fiberglass extension spring Ø 3mm with length gauge 50m

Glass fiber extension spring with digital meter counter, glass fiber extension spring Ø 3 mm with kink protection end sleeve (internal thread RTG Ø 6 mm) and patented anti-torsion guide head (2 x external thread RTG Ø 6 mm). Stored in a shockproof plastic box. The box is splash and dust proof, extremely shock resistant and therefore ideal for construction sites. For service work, the GF3 plastic box can be opened with just one screw. The pushback protection prevents the fiberglass extension spring from accidentally sliding back into the box. In addition, the box features an ergonomic carrying handle and a non-slip coating. An 18-piece accessory set is included. Thanks to the newly developed kink protection technology, bending radii up to R = 38 mm can be overcome. The stated total breaking force of 130 kg refers to the fiberglass tensile spring including anti-kink sleeves. Excellent in combination with the RUNPOTEC inspection cameras. The supplied cable pulling loop (Ø 14 mm outside) with built-in anti-torsion shaft and protective cap can be used for one or more cables up to a cable diameter of Ø 12 mm. Quickly attach the cables to the loop. Any plugs are protected by the tensile load on the cable.

Special features

• Tube diameter 10-50mm
• Bend radius: 38mm
• Maximum tensile load 130 Kg

Technical data

• Diameter: 3 mm
• Length: 50 m
• Breaking load: 130 kg
• Bend radius: 38mm
• Tube diameter: 10-50mm
• Material: Fiberglass Reinforced Plastic
• Extension Spring Connection: RTG6
• With Reel: Yes
• With Runpogleiter: Yes
