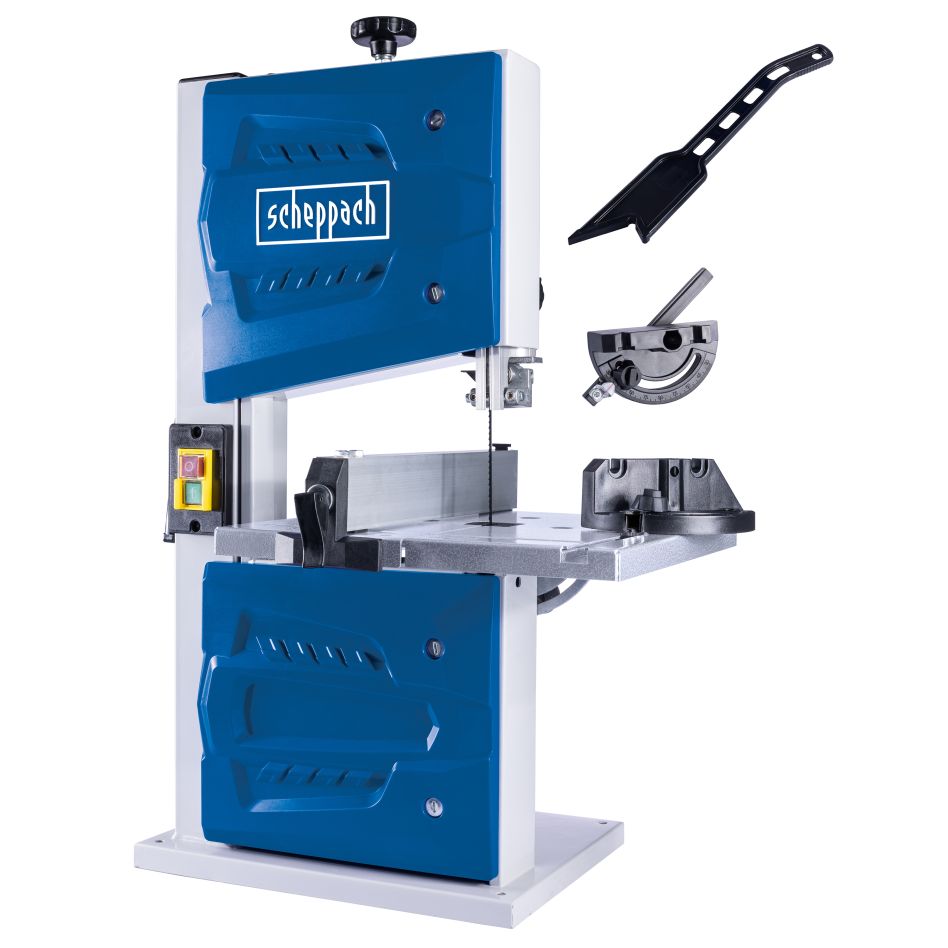

Scheppach Band saw HBS25 80 mm

Scheppach 5901513901 Band saw HBS25 80 mm

Scheppach band saw HBS25 is a practical all-rounder. Whether coarse sawing or extremely precise work. This band saw machine can be used in a versatile way and is an asset to any (hobby) workshop. Thanks to its compact design, the HBS25 is ideal as a tabletop model. The spacious 300x300 mm work table allows you to work safely even with large workpieces and is also infinitely tiltable up to a maximum of 45°. As a result, mitre cuts can be made without difficulty. The double parallel stop with quick-release is also a particularly precise guide for rip cuts.

Special features

• Compact band saw for coarse or delicate cuts
• Ideal for rip, corner or curve cuts
• Powerful 350W induction motor with 1400 rpm
• Robust steel construction
• Double clamped parallel stop with quick release for precise, straight cuts
• Cutting height up to 80 mm at 90
• Large 300x300 mm work table for safe working, also applies to large workpieces
• Maximum cutting width of 200 mm
• Continuously tiltable saw table up to 45° - ideal for mitre cuts
• Ball bearing guide for precise results
• Connection for external dust extraction
• Compact design - ideal as a space-saving table model
• Saw band speed 880 m/min
• Dust-proof on/off safety switch
• Suitable for standard saw blades with a width of 7-12 mm
• Includes cross-section gauge and push stick

Technical data

• Cutting band length: 1400 mm
• Cutting band width: 7 / 12 mm
• Housing material: Steel
• Length: 380 mm
• Width: 440 mm
• Height: 685 mm
• Suitable for wood: Yes
• Voltage: 230 V
• Motor power: 0.35 kW
• Max. swivel range: 0 / 45 °
• Cutting depth: 80 mm
• Wheel diameter: 200 mm
• Direction: Vertical
• Length of contact surface: 300 mm
• Width of contact area: 300 mm
• Power consumption: 350 W
