Schnabl 2300319 Plastic pipe clamp halogen-free diameter 3/4 / 18,5-19,5mm white 50pcs

Schnabl 2300319 Plastic pipe clamp halogen-free diameter 3/4 / 18,5-19,5mm white 50pcs

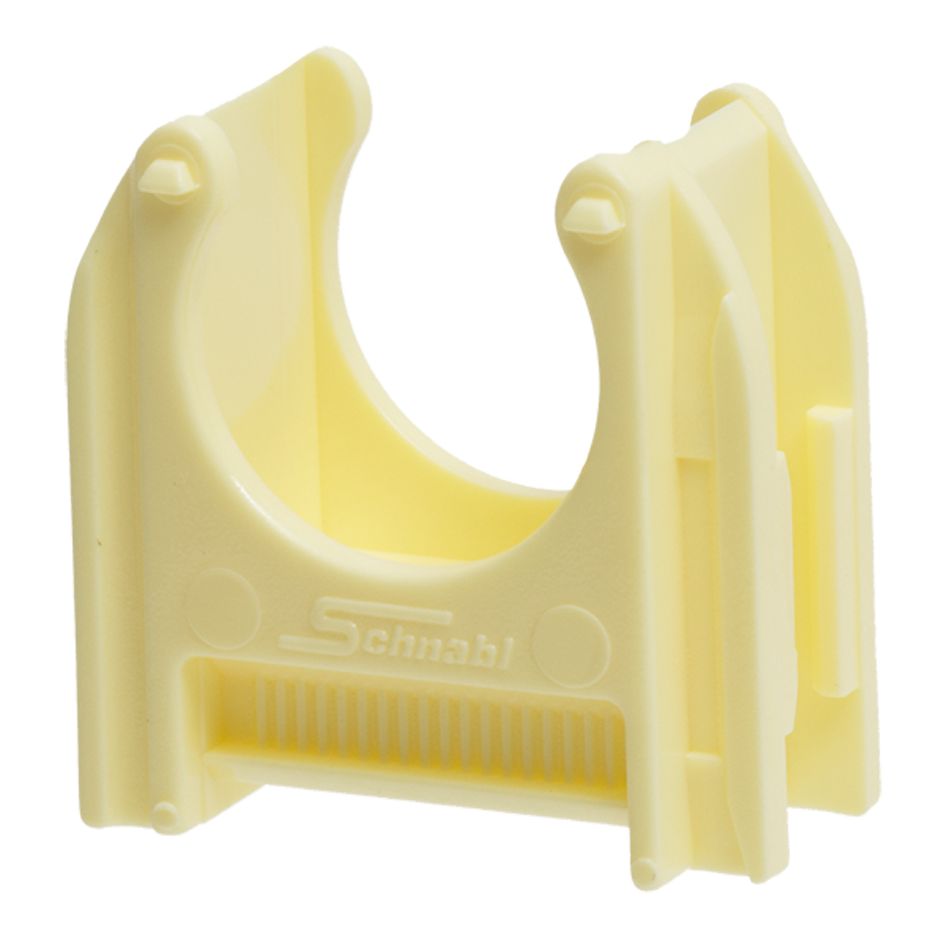

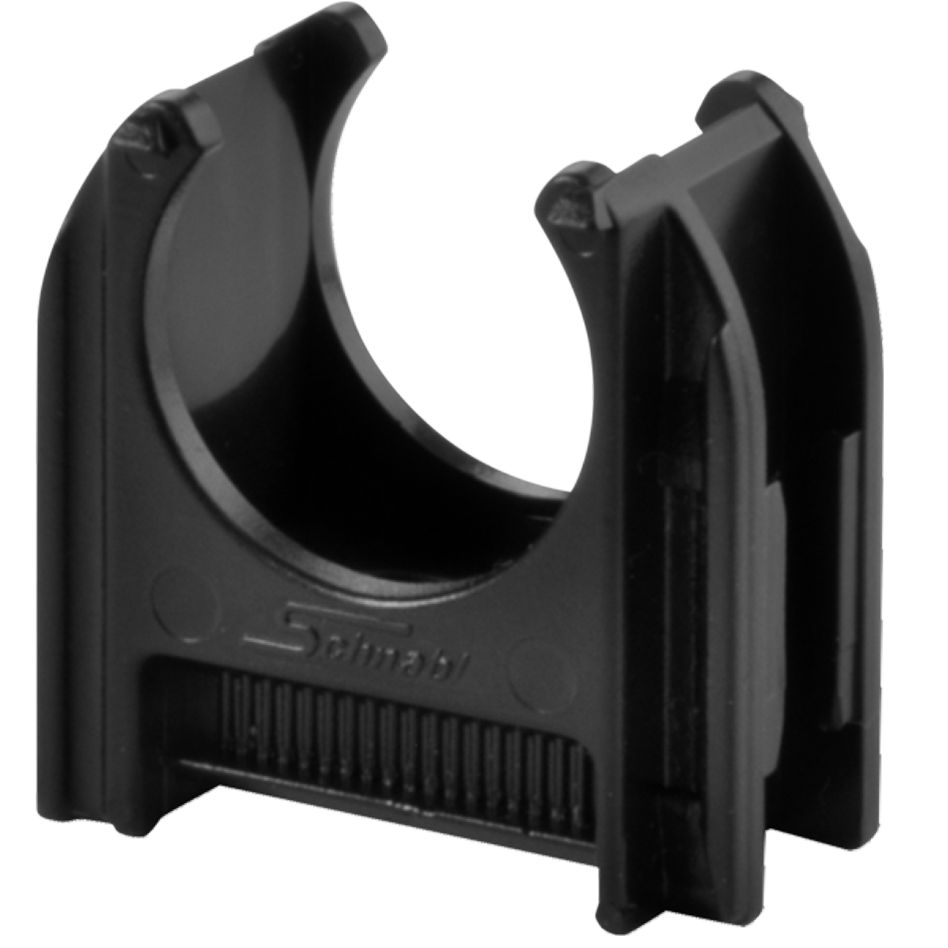

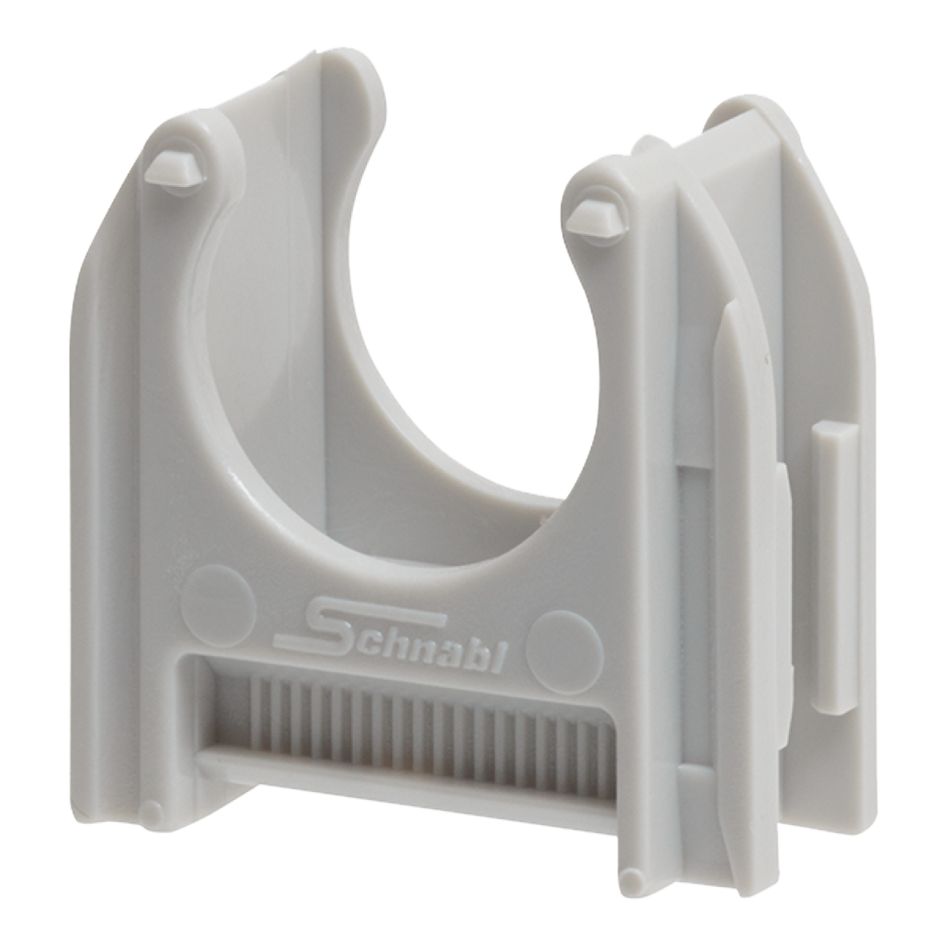

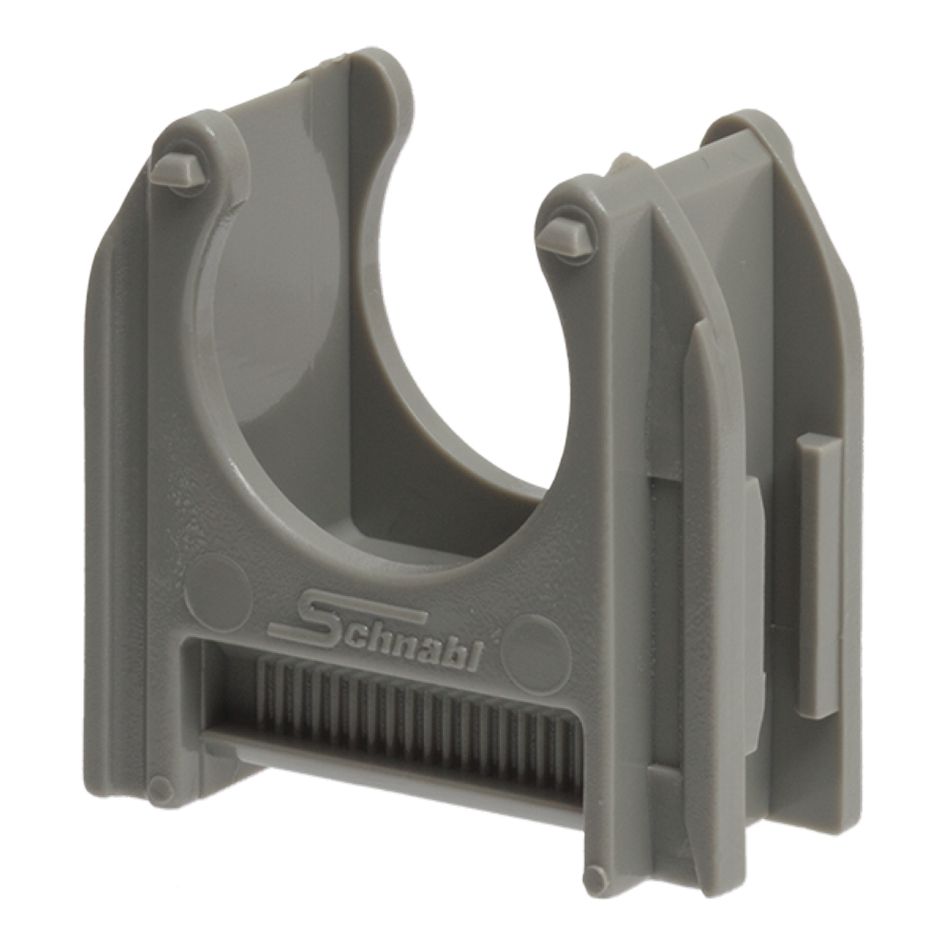

The Schnabl fixing system makes fixing pipes easy with the Euro-Clip (EC), which is suitable for almost all substrates. The system requires only drilling a hole and attaching the clip, without needing additional holes for expansion. The Euro-Clip is adjustable and provides a solid installation for a variety of situations. For smaller jobs, the EC16 and EC19 are available in a small pack of 50 in select colors, while the standard pack contains 200. Benefits include quick installation, various sizes, UV resistance, temperature resistance from -20°C to +85°C, reusability, environmental friendliness due to recyclable material, space saving and modular connectivity. Available in various colors, including especially for emergency lighting and fire alarm systems.

Technical data

• Material: Plastic
• Minimum Suitable for pipe diameter: 17.6 mm
• Maximum Suitable for pipe diameter (mm): 18.6 mm
• Material quality: Acrylonitrile butadien styrol (ABS)
• Max. number of tubes: 1
• Color: White
• RAL number: 9016
• Halogen-free: Yes
• UV resistant: Yes
• Rowable: Yes
• Closed: No
• Suitable for protective hoses: No
• Minimum Use Temperature (°C): -20
• Maximum Use Temperature (°C): 85
